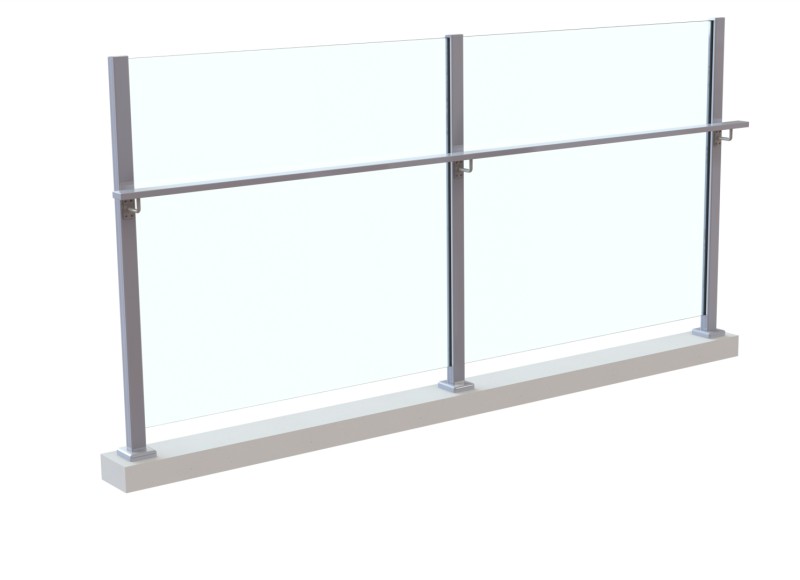

Eminence SD23-5

Code: SD23-5

APE post and BERP base plate, with PRR handrail.

Enquire Today

^*Important note: Quantities of each component will vary, depending on the specifications for the individual project. Please contact our team to discuss your specific requirements:

enquiries@axiomgroup.com.au

1300 652 336

Posts

Code: APE

Description

Aluminium glazing post with glazing recesses on both sides. Designed to take 10mm and 12mm thick glass.

Dimensions

Width:	60mm
Depth:	50mm

Notes

(Glaxing rubber must be ordered seperatly)

Infills

Code: AKS

Description

Rubber glass seat that slides down the glazing channel and sits ontop of the AIA infill. Can be used on all posts.

Dimensions

Width:	21mm
Height:	13mm
Depth:	24.8mm

Notes

Post Top Caps

Code: ACPE

Description

Aluminium cast top cap with curved top face, to be used when glass finishes inline with top of post. To be used with APE post.

Dimensions

Width:	60mm
Height:	24mm
Depth:	50mm

Notes

Press fit into top of post.

Post Top Caps

Code: DAE

Description

Aluminium laser cut top cap, to be used when glass finishes inline with top of post. To be used with APE post.

Dimensions

Width:	60mm
Height:	3mm
Depth:	50mm

Notes

Fixed to top of post with 2 x ECS screws. Fixings are supplied for this product.

Screws & Fixings

Code: PCS

Description

32mm long x 10 gauge, with an 8 gauge countersunk, phillps drive head in Stainless steel.

Dimensions

Width:	32mm
Gauge:	10mm

Notes

Screws & Fixings

Code: FV10-50

Description

10 gauge x 50mm long stainless steel screws with a countersunk head.

Dimensions

Length:	50mm
Gauge:	10mm

Notes

Screws & Fixings

Code: MPS

Description

14G x 20mm long Stainless steel screw.

Dimensions

Length:	20mm
Gauge:	14mm

Notes

Screws & Fixings

Code: BRSCS

Description

25mm thread length x 10 gauge, with a 8 gauge Pan head square drive, Stainless steel screw.

Dimensions

Width:	25mm
Gauge:	10mm

Notes

Screws & Fixings

Code: HBPS

Description

10 gauge x 25mm long, Philips drive, countersink head, Stainless steel screws.

Dimensions

Length:	25mm
Gauge:	10mm

Notes

Handrail Brackets

Code: DWH

Description

Handrail bracket, drilled and tapped ends. Part of ASSHH1 and ASHH2 Assmbly.

Dimensions

Width:	84mm
Depth:	58mm
Diameter:	12mm

Notes

Fix bracket to patch fitting and handrail plate. 1 x M5 Screw for fittng to handrail bracket supplied.

Handrail Brackets

Code: DWHFP

Description

Flat aluminium handrail plate. To suit square handrails.

Dimensions

Width:	20mm
Height:	3mm
Depth:	55mm

Notes

Handrail Brackets

Code: DWHMP

Description

flat plate for DWH bracket to fix to square posts and walls.

Dimensions

Width:	38mm
Height:	6mm
Depth:	70mm

Notes

Handrail Brackets

Code: DWHCNR

Description

Corner plate for DWH bracket to suit corner post applications.

Dimensions

Width:	18mm
Height:	18mm
Depth:	70mm
