Eminence-Ps SD23-04(PS)

Code: SD23-04(PS)

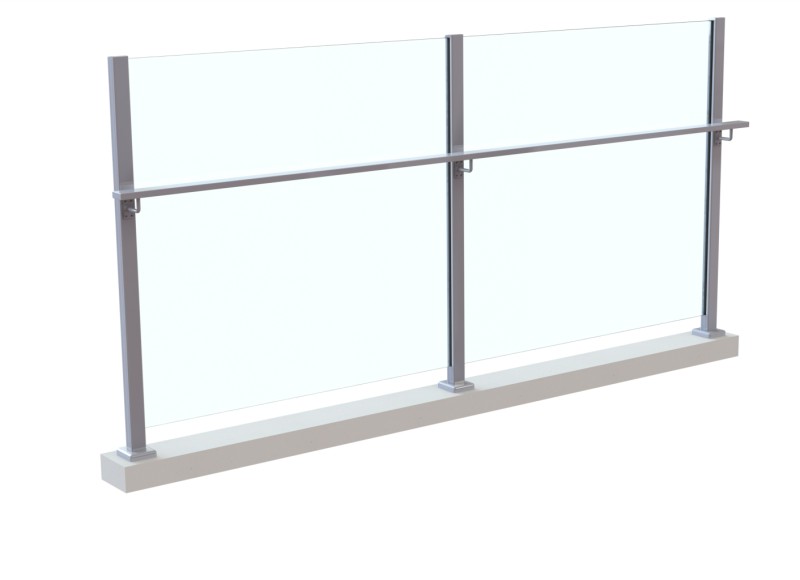

APE post with ARN handrail on the DWH handrail bracket.

Enquire Today

^*Important note: Quantities of each component will vary, depending on the specifications for the individual project. Please contact our team to discuss your specific requirements:

enquiries@axiomgroup.com.au

1300 652 336

Posts

Code: APE

Description

Aluminium glazing post with glazing recesses on both sides. Designed to take 10mm and 12mm thick glass.

Dimensions

Width:	60mm
Depth:	50mm

Notes

(Glaxing rubber must be ordered seperatly)

Infills

Code: AKS

Description

Rubber glass seat that slides down the glazing channel and sits ontop of the AIA infill. Can be used on all posts.

Dimensions

Width:	21mm
Height:	13mm
Depth:	24.8mm

Notes

Post Top Caps

Code: ACPE

Description

Aluminium cast top cap with curved top face, to be used when glass finishes inline with top of post. To be used with APE post.

Dimensions

Width:	60mm
Height:	24mm
Depth:	50mm

Notes

Press fit into top of post.

Screws & Fixings

Code: PCS

Description

32mm long x 10 gauge, with an 8 gauge countersunk, phillps drive head in Stainless steel.

Dimensions

Width:	32mm
Gauge:	10mm

Notes

Screws & Fixings

Code: FV10-50

Description

10 gauge x 50mm long stainless steel screws with a countersunk head.

Dimensions

Length:	50mm
Gauge:	10mm

Notes

Screws & Fixings

Code: MPS

Description

14G x 20mm long Stainless steel screw.

Dimensions

Length:	20mm
Gauge:	14mm

Notes

Screws & Fixings

Code: BRSCS

Description

25mm thread length x 10 gauge, with a 8 gauge Pan head square drive, Stainless steel screw.

Dimensions

Width:	25mm
Gauge:	10mm

Notes

Screws & Fixings

Code: HBPS

Description

10 gauge x 25mm long, Philips drive, countersink head, Stainless steel screws.

Dimensions

Length:	25mm
Gauge:	10mm

Notes

Post bottom caps

Code: DAEB

Description

Aluminium laser bottom top cap, to be used when side mounting posts to structure. Cap has drainage holes.

Dimensions

Width:	60mm
Height:	3mm
Depth:	50mm

Notes

Fixed to bottom of post with 4 x PCS screws and 2 ECS into infill. Fixings are supplied for this product.

Post bottom caps

Code: VAPB

Description

Aluminium laser bottom top cap, to be used when side mounting posts to structure. Cap has drainage holes. To be used on APR & APQ post

Dimensions

Width:	50mm
Height:	3mm
Depth:	50mm

Notes

Fixed to bottom of post with 4 x PCS screws and 2 ECS into infill. Fixings are supplied for this product.

Handrail Wall Plates

Code: ARNWPM

Description

Aluminium wall plate supplied with 300mm length of MANG. To be used with ARN handrail when fixing off to an existing wall.

Dimensions

Width:	42mm
Height:	6mm
Depth:	60mm

Notes

Fix bracket to handrail with 2 x FV12-50 Screws. 4 x FV12-50 screws supplied.

Handrail Connectors

Code: MANG90

Description

300mmx300mm long 90degree aluminium corner handrail joiner. To be used with ARN handrail on corners.

Dimensions

Width:	31mm
Depth:	18.1mm

Notes

Press fit into handrail, 150mm in each side

Handrail Brackets

Code: DWH

Description

Handrail bracket, drilled and tapped ends. Part of ASSHH1 and ASHH2 Assmbly.

Dimensions

Width:	84mm
Depth:	58mm
Diameter:	12mm

Notes

Fix bracket to patch fitting and handrail plate. 1 x M5 Screw for fittng to handrail bracket supplied.

Handrail Brackets

Code: DWHFP

Description

Flat aluminium handrail plate. To suit square handrails.

Dimensions

Width:	20mm
Height:	3mm
Depth:	55mm

Notes

Handrail Brackets

Code: DWHMP

Description

flat plate for DWH bracket to fix to square posts and walls.

Dimensions

Width:	38mm
Height:	6mm
Depth:	70mm
