Defender SD6-01

Code: SD6-01

Back to Suite
Defender Suite - SD6-01

Code: SD6-01

Defender SD6-01

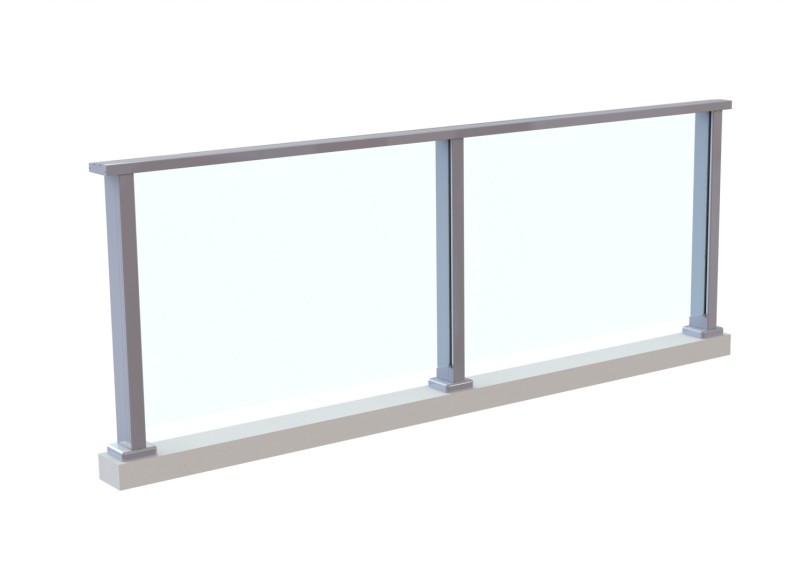

3kn Balustrade system. Suitable for a 3.0K/n loads.

Enquire Today

*Important note: Quantities of each component will vary, depending on the specifications for the individual project. Please contact our team to discuss your specific requirements:

enquiries@axiomgroup.com.au

1300 652 336
Engineering Diagram
AutoCAD Drawing
This Suite Requires the following components

(22 components)

Baseplates
Baseplates
Code: 3KNBP
Description

Aluminium baseplate for use with 3KNP post into concrete.

Dimensions
Width: 135mm
Height: 16mm
Depth: 135mm
Download Section Drawings
PDF DXF
Notes

14 x FV10-45 stainless steel screws must used to connect the post to this baseplate. 2 x FV10-19 for fixing AIA infil in place. Fixings must be ordered seperatly.

Used in the following Suites
Defender SD6-01
Guardian SD30-03
Baseplates
Code: BPAFGIC
Description

Aluminium Internal corner baseplate for use with AFGEC post into concrete.

Dimensions
Width: 150mm
Height: 12mm
Depth: 110mm
Download Section Drawings
PDF DXF
Notes

9 x FV10-45 stainless steel screws must used to connect the post to this baseplate. 2 x FV10-19 for fixing AIA infil in place. Fixings must be ordered seperatly.

Used in the following Suites
Alpha SD1-01, SD1-02, SD1-08, SD1-10, SD1-11
Defender SD6-01
Luna SD9-01, SD9-03
Guardian SD30-01, SD30-03
Baseplates
Code: BPAFGEC
Description

Aluminium External corner baseplate for use with AFGEC post into concrete.

Dimensions
Width: 155mm
Height: 12mm
Depth: 124mm
Download Section Drawings
PDF DXF
Notes

10 x FV10-45 stainless steel screws must used to connect the post to this baseplate. 2 x FV10-19 for fixing AIA infil in place. Fixings must be ordered seperatly.

Used in the following Suites
Alpha SD1-01, SD1-02, SD1-08, SD1-10, SD1-11
Defender SD6-01
Luna SD9-01, SD9-03
Guardian SD30-01, SD30-03
Baseplates covers
Baseplates covers
Code: 3KNBPC
Description

Aluminium baseplate cover for us with 3KNB Baseplate.

Dimensions
Width: 145mm
Height: 35mm
Depth: 145mm
Download Section Drawings
PDF DXF
Notes

Used in the following Suites
Defender SD6-01
Guardian SD30-03
Baseplates covers
Code: BPCFGIC
Description

Aluminium baseplate cover for us with BPAFGIC Baseplate.

Dimensions
Width: 155mm
Height: 25mm
Depth: 115mm
Download Section Drawings
PDF DXF
Notes

Used in the following Suites
Alpha SD1-01, SD1-02, SD1-08, SD1-10, SD1-11
Defender SD6-01
Luna SD9-01, SD9-03
Guardian SD30-01, SD30-03
Baseplates covers
Code: BPCFGEC
Description

Aluminium baseplate cover for us with BPAFGEC Baseplate.

Dimensions
Width: 165mm
Height: 25mm
Depth: 129mm
Download Section Drawings
PDF DXF
Notes

Used in the following Suites
Alpha SD1-01, SD1-02, SD1-08, SD1-10, SD1-11
Defender SD6-01
Luna SD9-01, SD9-03
Guardian SD30-01, SD30-03
Screws & Fixings
Screws & Fixings
Code: CSSM12160
Description

M12 X 160mm Capsule stud chisel Pt Ext Hex Drv GR316 S/S + Nut & washer

Dimensions
Length: 120mm
Download Section Drawings
DXF
Notes

Used in the following Suites
Alpha SD1-08
Classic SD2-01, SD2-01, SD2-02, SD2-02
Heritage SD3-01, SD3-01
Settler SD4-01, SD4-01, SD4-02, SD4-02
Vista SD5-01, SD5-01, SD5-02, SD5-02, SD5-25, SD5-25
Defender SD6-01
Linc SD7-01, SD7-01, SD7-01
Luna SD9-03
Neo SD12-01, SD12-02, SD12-03, SD12-04
Spectra SD18-01, SD18-02, SD18-03, SD18-04
Vantage SD21-01
Screws & Fixings
Code: SBM12160
Description

M12 x 160mm Screw bolt

Dimensions
Length: 160mm
Download Section Drawings
DXF
Notes

Used in the following Suites
Alpha SD1-08
Classic SD2-01, SD2-01, SD2-02, SD2-02
Heritage SD3-01, SD3-01
Settler SD4-01, SD4-01, SD4-02, SD4-02
Vista SD5-01, SD5-01, SD5-02, SD5-02, SD5-25, SD5-25
Defender SD6-01
Linc SD7-01, SD7-01, SD7-01
Luna SD9-03
Neo SD12-01, SD12-02, SD12-03, SD12-04
Spectra SD18-01, SD18-02, SD18-03, SD18-04
Vantage SD21-01
Screws & Fixings
Code: CSSM10130
Description

M10 X 130mm Capsule stud chisel Pt Ext Hex Drv GR316 S/S + Nut & washer

Dimensions
Length: 130mm
Download Section Drawings
DXF
Notes

Used in the following Suites
Alpha SD1-01, SD1-01, SD1-01, SD1-02, SD1-02, SD1-02, SD1-03, SD1-03, SD1-03, SD1-04, SD1-04, SD1-04, SD1-05, SD1-05, SD1-05, SD1-06, SD1-06, SD1-06, SD1-08, SD1-08, SD1-10, SD1-10, SD1-10, SD1-11, SD1-11, SD1-11
Defender SD6-01, SD6-01
Luna SD9-01, SD9-01, SD9-01, SD9-02, SD9-02, SD9-02, SD9-03, SD9-03
Lynfield SD10-01, SD10-02, SD10-03, SD10-04, SD10-05
Metropolis SD11-01, SD11-02, SD11-03, SD11-04, SD11-05, SD11-06, SD11-07, SD11-08, SD11-09, SD11-10, SD11-12, SD11-15, SD11-16, SD11-16, SD11-19, SD11-20, SD11-17
Neo SD12-01, SD12-01, SD12-02, SD12-02, SD12-03, SD12-03, SD12-04, SD12-04
Quest SD15-01, SD15-01, SD15-01, SD15-02, SD15-02, SD15-02, SD15-03, SD15-03, SD15-03, SD15-04, SD15-04, SD15-04
Spectra SD18-01, SD18-01, SD18-02, SD18-02, SD18-03, SD18-03, SD18-04, SD18-04
Vectro SD19-01, SD19-01, SD19-01, SD19-02, SD19-02, SD19-02, SD19-03, SD19-03, SD19-03, SD19-04, SD19-04, SD19-04, SD19-05, SD19-05, SD19-05, SD19-06, SD19-06, SD19-06, SD19-07, SD19-07, SD19-07, SD19-08, SD19-08, SD19-08, SD19-09, SD19-09, SD19-09, SD19-10, SD19-10, SD19-10, SD19-11, SD19-11, SD19-11, SD19-12, SD19-12, SD19-12, SD19-13, SD19-13, SD19-13, SD19-14, SD19-14, SD19-14, SD19-15, SD19-15, SD19-15, SD19-16, SD19-16, SD19-16, SD19-17, SD19-17, SD19-17, SD19-18, SD19-18, SD19-18, SD19-19, SD19-19, SD19-19, SD19-20, SD19-20, SD19-20, SD19-21, SD19-21, SD19-21, SD19-22, SD19-22, SD19-22, SD19-23, SD19-23, SD19-23
Vibe SD20-01, SD20-01, SD20-01, SD20-02, SD20-02, SD20-02, SD20-03, SD20-03, SD20-03, SD20-04, SD20-04, SD20-04
Vantage SD21-01, SD21-01
Eminence SD23-01, SD23-01, SD23-01, SD23-02, SD23-02, SD23-02, SD23-03, SD23-03, SD23-03, SD23-08, SD23-08, SD23-08, SD23-09, SD23-09, SD23-09, SD23-10, SD23-10, SD23-10, SD23-11, SD23-11, SD23-11, SD23-12, SD23-12, SD23-12, SD23-13, SD23-13, SD23-13, SD23-14, SD23-14, SD23-14, SD23-15, SD23-15, SD23-15, SD23-16, SD23-16, SD23-16, SD23-17, SD23-17, SD23-17, SD23-18, SD23-18, SD23-18, SD23-19, SD23-19, SD23-19
Eminence-Ps SD23-01(PS), SD23-01(PS), SD23-01(PS), SD23-02(PS), SD23-02(PS), SD23-02(PS), SD23-03(PS), SD23-03(PS), SD23-03(PS), SD23-08(PS), SD23-08(PS), SD23-08(PS), SD23-09(PS), SD23-09(PS), SD23-09(PS), SD23-10(PS), SD23-10(PS), SD23-10(PS), SD23-11(PS), SD23-11(PS), SD23-11(PS), SD23-12(PS), SD23-12(PS), SD23-12(PS), SD23-13(PS), SD23-13(PS), SD23-13(PS), SD23-14(PS), SD23-14(PS), SD23-14(PS), SD23-15(PS), SD23-15(PS), SD23-15(PS), SD23-16(PS), SD23-16(PS), SD23-16(PS), SD23-17(PS), SD23-17(PS), SD23-17(PS), SD23-18(PS), SD23-18(PS), SD23-18(PS), SD23-19(PS), SD23-19(PS), SD23-19(PS)
Rockley SD29-01
Guardian SD30-01, SD30-02
Screws & Fixings
Code: BRSCS
Description

25mm thread length x 10 gauge, with a 8 gauge Pan head square drive, Stainless steel screw.

Dimensions
Width: 25mm
Gauge: 10mm
Download Section Drawings
PDF DXF
Notes

Used in the following Suites
Alpha SD1-01, SD1-02, SD1-03, SD1-04, SD1-05, SD1-06, SD1-08, SD1-10, SD1-11
Classic SD2-01, SD2-02
Heritage SD3-01
Settler SD4-01, SD4-02
Vista SD5-01, SD5-02, SD5-25
Defender SD6-01
Linc SD7-01
Luna SD9-01, SD9-02, SD9-03
Lynfield SD10-01, SD10-02, SD10-03, SD10-04, SD10-05
Neo SD12-01, SD12-01, SD12-02, SD12-02, SD12-03, SD12-03, SD12-04, SD12-04
Quest SD15-01, SD15-01, SD15-02, SD15-02, SD15-03, SD15-03, SD15-04, SD15-04
Infinity SD17-01, SD17-02, SD17-03, SD17-04, SD17-05, SD17-06, SD17-07, SD17-08, SD17-09, SD17-10, SD17-11, SD17-12, SD17-13
Spectra SD18-01, SD18-01, SD18-02, SD18-02, SD18-03, SD18-03, SD18-04, SD18-04
Vectro SD19-03, SD19-04, SD19-05, SD19-06, SD19-07, SD19-08, SD19-08, SD19-09, SD19-09, SD19-10, SD19-10, SD19-11, SD19-11, SD19-12, SD19-13, SD19-13, SD19-14, SD19-14, SD19-15, SD19-15, SD19-16, SD19-16, SD19-17, SD19-18, SD19-18, SD19-19, SD19-19, SD19-20, SD19-20, SD19-21, SD19-21, SD19-23
Vibe SD20-01, SD20-01, SD20-02, SD20-02, SD20-03, SD20-03, SD20-04, SD20-04
Vantage SD21-01, SD21-01
Sapphire SD22-01, SD22-01
Eminence SD23-01, SD23-01, SD23-02, SD23-02, SD23-03, SD23-03, SD23-04, SD23-08, SD23-08, SD23-08, SD23-09, SD23-09, SD23-09, SD23-10, SD23-10, SD23-10, SD23-11, SD23-11, SD23-11, SD23-12, SD23-12, SD23-12, SD23-13, SD23-13, SD23-13, SD23-14, SD23-14, SD23-14, SD23-15, SD23-15, SD23-15, SD23-16, SD23-16, SD23-16, SD23-17, SD23-17, SD23-17, SD23-18, SD23-18, SD23-18, SD23-19, SD23-19, SD23-19, SD23-5
Eminence-Ps SD23-01(PS), SD23-01(PS), SD23-02(PS), SD23-02(PS), SD23-03(PS), SD23-03(PS), SD23-04(PS), SD23-08(PS), SD23-08(PS), SD23-08(PS), SD23-09(PS), SD23-09(PS), SD23-09(PS), SD23-10(PS), SD23-10(PS), SD23-10(PS), SD23-11(PS), SD23-11(PS), SD23-11(PS), SD23-12(PS), SD23-12(PS), SD23-12(PS), SD23-13(PS), SD23-13(PS), SD23-13(PS), SD23-14(PS), SD23-14(PS), SD23-14(PS), SD23-15(PS), SD23-15(PS), SD23-15(PS), SD23-16(PS), SD23-16(PS), SD23-16(PS), SD23-17(PS), SD23-17(PS), SD23-17(PS), SD23-18(PS), SD23-18(PS), SD23-18(PS), SD23-19(PS), SD23-19(PS), SD23-19(PS)
Rockley SD29-01
Guardian SD30-01, SD30-02
Screws & Fixings
Code: FV10-50
Description

10 gauge x 50mm long stainless steel screws with a countersunk head.

Dimensions
Length: 50mm
Gauge: 10mm
Download Section Drawings
DXF
Posts
Posts
Code: 3KNP
Description

Aluminium glazing post with glazing recesses on both sides. Designed to take 10mm and 12mm thick glass.

Dimensions
Width: 60mm
Depth: 125mm
Download Section Drawings
PDF DXF
Notes

(Glaxing rubber must be ordered seperatly)

Used in the following Suites
Defender SD6-01
Guardian SD30-03, SD30-04
Posts
Code: AFGEC
Description

Aluminium external corner glazing post with glazing recesses on both sides. Designed to take 10mm and 12mm thick glass.

Dimensions
Width: 122mm
Depth: 50mm
Download Section Drawings
PDF DXF
Notes

(Glaxing rubber must be ordered seperatly)

Used in the following Suites
Alpha SD1-01, SD1-02, SD1-03, SD1-04, SD1-05, SD1-06, SD1-08, SD1-10, SD1-11
Defender SD6-01
Luna SD9-01, SD9-01, SD9-02, SD9-02, SD9-03, SD9-03
Guardian SD30-01, SD30-03
Posts
Code: AFGIC
Description

Aluminium internal corner glazing post with glazing recesses on both sides. Designed to take 10mm and 12mm thick glass.

Dimensions
Width: 117mm
Depth: 50mm
Download Section Drawings
PDF DXF
Notes

(Glaxing rubber must be ordered seperatly)

Used in the following Suites
Alpha SD1-01, SD1-02, SD1-03, SD1-04, SD1-05, SD1-06, SD1-08, SD1-10, SD1-11
Defender SD6-01
Luna SD9-01, SD9-02, SD9-03
Guardian SD30-01, SD30-03
Infills
Infills
Code: AKS
Description

Rubber glass seat that slides down the glazing channel and sits ontop of the AIA infill. Can be used on all posts.

Dimensions
Width: 21mm
Height: 13mm
Depth: 24.8mm
Download Section Drawings
PDF DXF
Handrails
Handrails
Code: 3KNHR
Description

Aluminium curved handrail. To be used with 3KNUC undercap.

Dimensions
Width: 140mm
Depth: 40mm
Download Section Drawings
PDF DXF
Notes

Snaps in place over undercap.

Used in the following Suites
Defender SD6-01
Undercaps
Undercaps
Code: 3KNUC
Description

Aluminium Undercap. Screw fixed to post. To be used with 3KNHR handrail.

Dimensions
Width: 129mm
Depth: 22.4mm
Download Section Drawings
PDF DXF
Notes

Fixed to posts with 4 x BRSCS screws. Fixings must be ordered seperatly.

Used in the following Suites
Defender SD6-01
Handrail End Caps
Handrail End Caps
Code: 3KNEC
Description

Aluminium laser cut handrail end cap, to be fitted to end of handrail. To be used with 3KNHR handrail.

Dimensions
Width: 140mm
Height: 3mm
Depth: 40mm
Download Section Drawings
PDF DXF
Notes

Fixed to handrail with 4 x ECS screws. Fixings are supplied for this product.

Used in the following Suites
Defender SD6-01
Glazing Gaskets
Glazing Gaskets
Code: SWL15
Dimensions
Download Section Drawings
DXF
Notes

Used in the following Suites
Defender SD6-01
Panorama SD13-01, SD13-01, SD13-02, SD13-02, SD13-03, SD13-03, SD13-04, SD13-04, SD13-05, SD13-05, SD13-06, SD13-06, SD13-07, SD13-07, SD13-08, SD13-08
Setting Blocks
Setting Blocks
Code: SBG
Description

Self adhesive setting block. Used for setting handrailing on top of glass and when glazing into posts to prevent glass movement.

Dimensions
Width: 25mm
Height: 9mm
Depth: 5mm
Download Section Drawings
PDF DXF
Notes

Used in the following Suites
Alpha SD1-01, SD1-02, SD1-03, SD1-04, SD1-05, SD1-08, SD1-10
Defender SD6-01
Luna SD9-01, SD9-02, SD9-03
Quest SD15-01, SD15-02, SD15-03, SD15-04
Neo SD12-01, SD12-02, SD12-03, SD12-04
Spectra SD18-01, SD18-02, SD18-03, SD18-04
Vectro SD19-01, SD19-02, SD19-03, SD19-04, SD19-05, SD19-06
Vibe SD20-01, SD20-02, SD20-03, SD20-04
Vantage SD21-01
Sapphire SD22-01
Eminence SD23-01, SD23-02, SD23-03, SD23-04
Setting Blocks
Code: ABB20
Description

Glass location block for the AFGEC post

Dimensions
Width: 20mm
Depth: 30mm
Length: 200mm
Download Section Drawings
Notes

Used in the following Suites
Alpha SD1-01, SD1-02, SD1-03, SD1-04, SD1-05, SD1-06, SD1-08, SD1-10, SD1-11
Defender SD6-01
Luna SD9-01, SD9-03, SD9-02
Guardian SD30-04
Setting Blocks
Code: ABB6
Description

Glass location block for the AFGIC, AFG35, AXR, AXRC

Dimensions
Width: 16mm
Depth: 5.5mm
Length: 200mm
Download Section Drawings
Notes

Used in the following Suites
Alpha SD1-01, SD1-02, SD1-03, SD1-04, SD1-05, SD1-06, SD1-08, SD1-10, SD1-11
Defender SD6-01
Luna SD9-01, SD9-02, SD9-03
Quest SD15-01, SD15-02, SD15-03, SD15-04
Vibe SD20-01, SD20-02, SD20-03, SD20-04
