Classic Suite - SD2-01

Code: SD2-01

Classic SD2-01

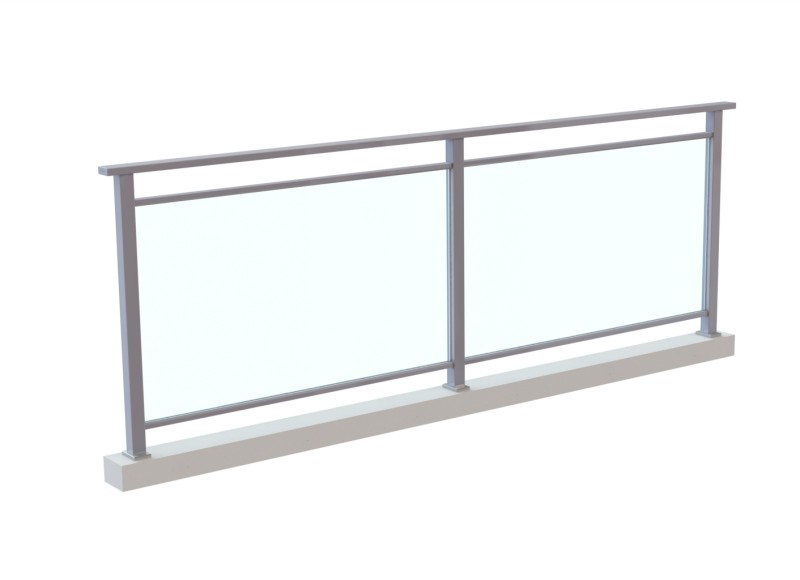

AXFLCS post, BPDPMP baseplate and AXRHCS rectangular handrail.

Enquire Today

*Important note: Quantities of each component will vary, depending on the specifications for the individual project. Please contact our team to discuss your specific requirements:

enquiries@axiomgroup.com.au

1300 652 336
Suite System Drawing
Suite System Drawing
Engineering Diagram
AutoCAD Drawing
This Suite Requires the following components

(16 components)

Baseplates
Baseplates
Code: BPDPMP
Description

Aluminium baseplate for use with AXFLCS post into concrete.

Dimensions
Width: 100mm
Height: 14mm
Depth: 70mm
Download Section Drawings
PDF DXF
Notes

6 x FV10-45 stainless steel screws must used to connect the post to this baseplate. 2 x FV10-19 for fixing AIA infil in place. Fixings must be ordered seperatly.

Used in the following Suites
Classic SD2-01, SD2-02
Heritage SD3-01
Settler SD4-01, SD4-02
Vista SD5-01, SD5-02, SD5-25
Baseplates
Code: BP9070-LH
Description

Aluminium Left-hand corner baseplate for use with AXCPS post into concrete.

Dimensions
Width: 70mm
Height: 14mm
Depth: 70mm
Download Section Drawings
PDF DXF
Notes

4 x FV10-45 stainless steel screws must used to connect the post to this baseplate. 2 x FV10-19 for fixing AIA infil in place. Fixings must be ordered seperatly.

Used in the following Suites
Classic SD2-01, SD2-02
Heritage SD3-01
Settler SD4-01, SD4-02
Vista SD5-01, SD5-02, SD5-25
Baseplates
Code: BP9070-RH
Description

Aluminium Right-hand corner baseplate for use with AXCPS post into concrete.

Dimensions
Width: 70mm
Height: 14mm
Depth: 70mm
Download Section Drawings
PDF DXF
Notes

4 x FV10-45 stainless steel screws must used to connect the post to this baseplate. 2 x FV10-19 for fixing AIA infil in place. Fixings must be ordered seperatly.

Used in the following Suites
Classic SD2-01, SD2-02
Heritage SD3-01
Settler SD4-01, SD4-02
Vista SD5-01, SD5-02, SD5-25
Screws & Fixings
Screws & Fixings
Code: FV10-45
Description

50mm long x 10 gauge, Quad thread, square drive, countersunk head, Stainless steel screw.

Dimensions
Width: 50mm
Gauge: 10mm
Download Section Drawings
PDF DXF
Screws & Fixings
Code: CSSM12160
Description

M12 X 160mm Capsule stud chisel Pt Ext Hex Drv GR316 S/S + Nut & washer

Dimensions
Length: 120mm
Download Section Drawings
DXF
Notes

Used in the following Suites
Alpha SD1-08
Classic SD2-01, SD2-01, SD2-02, SD2-02
Heritage SD3-01, SD3-01
Settler SD4-01, SD4-01, SD4-02, SD4-02
Vista SD5-01, SD5-01, SD5-02, SD5-02, SD5-25, SD5-25
Defender SD6-01
Linc SD7-01, SD7-01, SD7-01
Luna SD9-03
Neo SD12-01, SD12-02, SD12-03, SD12-04
Spectra SD18-01, SD18-02, SD18-03, SD18-04
Vantage SD21-01
Screws & Fixings
Code: SBM12160
Description

M12 x 160mm Screw bolt

Dimensions
Length: 160mm
Download Section Drawings
DXF
Notes

Used in the following Suites
Alpha SD1-08
Classic SD2-01, SD2-01, SD2-02, SD2-02
Heritage SD3-01, SD3-01
Settler SD4-01, SD4-01, SD4-02, SD4-02
Vista SD5-01, SD5-01, SD5-02, SD5-02, SD5-25, SD5-25
Defender SD6-01
Linc SD7-01, SD7-01, SD7-01
Luna SD9-03
Neo SD12-01, SD12-02, SD12-03, SD12-04
Spectra SD18-01, SD18-02, SD18-03, SD18-04
Vantage SD21-01
Screws & Fixings
Code: BRSCS
Description

25mm thread length x 10 gauge, with a 8 gauge Pan head square drive, Stainless steel screw.

Dimensions
Width: 25mm
Gauge: 10mm
Download Section Drawings
PDF DXF
Notes

Used in the following Suites
Alpha SD1-01, SD1-02, SD1-03, SD1-04, SD1-05, SD1-06, SD1-08, SD1-10, SD1-11
Classic SD2-01, SD2-02
Heritage SD3-01
Settler SD4-01, SD4-02
Vista SD5-01, SD5-02, SD5-25
Defender SD6-01
Linc SD7-01
Luna SD9-01, SD9-02, SD9-03
Lynfield SD10-01, SD10-02, SD10-03, SD10-04, SD10-05
Neo SD12-01, SD12-01, SD12-02, SD12-02, SD12-03, SD12-03, SD12-04, SD12-04
Quest SD15-01, SD15-01, SD15-02, SD15-02, SD15-03, SD15-03, SD15-04, SD15-04
Infinity SD17-01, SD17-02, SD17-03, SD17-04, SD17-05, SD17-06, SD17-07, SD17-08, SD17-09, SD17-10, SD17-11, SD17-12, SD17-13
Spectra SD18-01, SD18-01, SD18-02, SD18-02, SD18-03, SD18-03, SD18-04, SD18-04
Vectro SD19-03, SD19-04, SD19-05, SD19-06, SD19-07, SD19-08, SD19-08, SD19-09, SD19-09, SD19-10, SD19-10, SD19-11, SD19-11, SD19-12, SD19-13, SD19-13, SD19-14, SD19-14, SD19-15, SD19-15, SD19-16, SD19-16, SD19-17, SD19-18, SD19-18, SD19-19, SD19-19, SD19-20, SD19-20, SD19-21, SD19-21, SD19-23
Vibe SD20-01, SD20-01, SD20-02, SD20-02, SD20-03, SD20-03, SD20-04, SD20-04
Vantage SD21-01, SD21-01
Sapphire SD22-01, SD22-01
Eminence SD23-01, SD23-01, SD23-02, SD23-02, SD23-03, SD23-03, SD23-04, SD23-08, SD23-08, SD23-08, SD23-09, SD23-09, SD23-09, SD23-10, SD23-10, SD23-10, SD23-11, SD23-11, SD23-11, SD23-12, SD23-12, SD23-12, SD23-13, SD23-13, SD23-13, SD23-14, SD23-14, SD23-14, SD23-15, SD23-15, SD23-15, SD23-16, SD23-16, SD23-16, SD23-17, SD23-17, SD23-17, SD23-18, SD23-18, SD23-18, SD23-19, SD23-19, SD23-19, SD23-5
Eminence-Ps SD23-01(PS), SD23-01(PS), SD23-02(PS), SD23-02(PS), SD23-03(PS), SD23-03(PS), SD23-04(PS), SD23-08(PS), SD23-08(PS), SD23-08(PS), SD23-09(PS), SD23-09(PS), SD23-09(PS), SD23-10(PS), SD23-10(PS), SD23-10(PS), SD23-11(PS), SD23-11(PS), SD23-11(PS), SD23-12(PS), SD23-12(PS), SD23-12(PS), SD23-13(PS), SD23-13(PS), SD23-13(PS), SD23-14(PS), SD23-14(PS), SD23-14(PS), SD23-15(PS), SD23-15(PS), SD23-15(PS), SD23-16(PS), SD23-16(PS), SD23-16(PS), SD23-17(PS), SD23-17(PS), SD23-17(PS), SD23-18(PS), SD23-18(PS), SD23-18(PS), SD23-19(PS), SD23-19(PS), SD23-19(PS)
Rockley SD29-01
Guardian SD30-01, SD30-02
Posts
Posts
Code: AXFLCS
Description

Aluminium glazing post with infill recess on one side.

Dimensions
Width: 55mm
Depth: 55mm
Download Section Drawings
PDF DXF
Notes

(Glaxing rubber must be ordered seperatly)

Used in the following Suites
Classic SD2-01, SD2-02
Heritage SD3-01
Settler SD4-01, SD4-02
Vista SD5-01, SD5-02, SD5-25
Posts
Code: AXCPS
Description

Aluminium glazing post with infill recesses on adjacent faces for corner applications. External corner is rounded.

Dimensions
Width: 55mm
Depth: 55mm
Download Section Drawings
PDF DXF
Notes

(Glaxing rubber must be ordered seperatly)

Used in the following Suites
Classic SD2-01, SD2-01, SD2-02, SD2-02
Heritage SD3-01, SD3-01
Settler SD4-01, SD4-01, SD4-02, SD4-02
Vista SD5-01, SD5-01, SD5-02, SD5-02, SD5-25, SD5-25
Infills
Infills
Code: AXIFCS
Description

Aluminium infill adaptor for AXIFCS post

Dimensions
Width: 42mm
Depth: 8.75mm
Download Section Drawings
PDF DXF
Notes

Used in the following Suites
Classic SD2-01, SD2-02
Heritage SD3-01
Settler SD4-01, SD4-02
Vista SD5-01, SD5-02, SD5-25
Infills
Code: AXBIC
Description

Aluminium baluster infill adaptor. Can be used on posts, bottom rails and undercaps.

Dimensions
Width: 21mm
Depth: 13.3mm
Download Section Drawings
PDF DXF
Notes

Used in the following Suites
Classic SD2-01, SD2-02
Heritage SD3-01
Settler SD4-01, SD4-02
Vista SD5-01, SD5-02, SD5-25
Bottom Rails
Bottom Rails
Code: AXBRCS
Description

Aluminium bottom rail, used with fully framed balustrade systems.

Dimensions
Width: 38mm
Height: 25mm
Download Section Drawings
PDF DXF
Notes

Used in the following Suites
Classic SD2-01, SD2-02
Heritage SD3-01
Settler SD4-01, SD4-02
Vista SD5-01, SD5-02, SD5-25
Handrails
Handrails
Code: AXRHCS
Description

Aluminium rectangluar handrail. To be used with AXUCCS undercap.

Dimensions
Width: 74mm
Depth: 28mm
Download Section Drawings
PDF DXF
Notes

Snaps in place over undercap.

Used in the following Suites
Classic SD2-01
Heritage SD3-01
Settler SD4-01
Vista SD5-01, SD5-25
Undercaps
Undercaps
Code: AXUCCS
Description

Aluminium Undercap. Screw fixed to post. To be used with Clearview handrail.

Dimensions
Width: 58mm
Depth: 20mm
Download Section Drawings
PDF DXF
Notes

Fixed to posts with 4 x BRSCS screws. Fixings must be ordered seperatly.

Used in the following Suites
Classic SD2-01, SD2-02
Heritage SD3-01
Settler SD4-01, SD4-02
Vista SD5-01, SD5-02, SD5-25
Handrail End Caps
Handrail End Caps
Code: AXC513
Description

Aluminium cast handrail end cap, to be fitted to end of handrail. To be used with AXRHCS handrail.

Dimensions
Width: 74mm
Height: 4mm
Depth: 28mm
Download Section Drawings
PDF DXF
Notes

Press fit into handrail

Used in the following Suites
Classic SD2-01
Heritage SD3-01
Settler SD4-01
Vista SD5-01, SD5-25
Glazing Gaskets
Glazing Gaskets
Code: CRV6
Dimensions
Download Section Drawings
DXF
Notes

Used in the following Suites
Classic SD2-01, SD2-02
Vista SD5-01, SD5-02
