Panorama Suite - SD13-11

Code: SD13-11

Panorama SD13-11

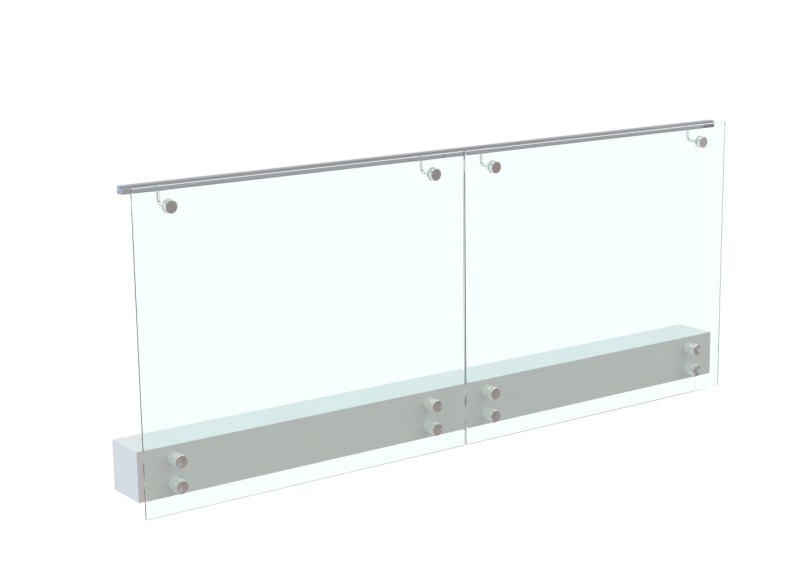

ASO5050 Stainless steel standoff fitting with ARN handrail on a ASSHH1 handrail bracket.

Enquire Today

*Important note: Quantities of each component will vary, depending on the specifications for the individual project. Please contact our team to discuss your specific requirements:

enquiries@axiomgroup.com.au

1300 652 336
Suite System Drawing
Suite System Drawing
Engineering Diagram
AutoCAD Drawing
This Suite Requires the following components

(7 components)

Handrail Wall Plates
Handrail Wall Plates
Code: ARNWPM
Description

Aluminium wall plate supplied with 300mm length of MANG. To be used with ARN handrail when fixing off to an existing wall.

Dimensions
Width: 42mm
Height: 6mm
Depth: 60mm
Download Section Drawings
PDF DXF
Notes

Fix bracket to handrail with 2 x FV12-50 Screws. 4 x FV12-50 screws supplied.

Used in the following Suites
Metropolis SD11-01, SD11-02, SD11-03, SD11-04, SD11-12, SD11-15, SD11-16, SD11-16, SD11-17
Panorama SD13-01, SD13-03, SD13-05, SD13-07, SD13-09, SD13-11, SD13-13, SD13-15
Paramount SD14-01, SD14-03, SD14-05, SD14-11
Seascape SD16-02, SD16-05
Eminence SD23-04
Eminence-Ps SD23-04(PS)
Screws & Fixings
Screws & Fixings
Code: FV10-50
Description

10 gauge x 50mm long stainless steel screws with a countersunk head.

Dimensions
Length: 50mm
Gauge: 10mm
Download Section Drawings
DXF
Screws & Fixings
Code: FV10-20
Description

10 gauge x 20mm long stainless steel screws with a countersunk head.

Dimensions
Length: 20mm
Gauge: 10mm
Download Section Drawings
DXF
Notes

Used in the following Suites
Metropolis SD11-12, SD11-15, SD11-16, SD11-16, SD11-17
Panorama SD13-09, SD13-11, SD13-13, SD13-15
Handrail Connectors
Handrail Connectors
Code: MANG90
Description

300mmx300mm long 90degree aluminium corner handrail joiner. To be used with ARN handrail on corners.

Dimensions
Width: 31mm
Depth: 18.1mm
Download Section Drawings
DXF
Notes

Press fit into handrail, 150mm in each side

Used in the following Suites
Metropolis SD11-01, SD11-02, SD11-03, SD11-04, SD11-12, SD11-15, SD11-16, SD11-16, SD11-17
Panorama SD13-01, SD13-03, SD13-05, SD13-07, SD13-09, SD13-11, SD13-13, SD13-15
Paramount SD14-01, SD14-03, SD14-05, SD14-11
Seascape SD16-02, SD16-05
Eminence SD23-04
Eminence-Ps SD23-04(PS)
Handrail Brackets
Handrail Brackets
Code: ASSHH1
Description

Stainless steel handrail bracket assembly with a 38mm patch fitting for mounting to glass. 81mm from glass edge to middle of handrail plate.

Dimensions
Download Section Drawings
PDF DXF
Notes

Required 16mm hole in glass.

Used in the following Suites
Metropolis SD11-05, SD11-10, SD11-12, SD11-15, SD11-16, SD11-16, SD11-19, SD11-20, SD11-17
Panorama SD13-09, SD13-10, SD13-11, SD13-12, SD13-13, SD13-14, SD13-15, SD13-16
Paramount SD14-05, SD14-06, SD14-11, SD14-12
Seascape SD16-04, SD16-05
Standoff Fittings
Standoff Fittings
Code: ASO5050-P
Description

Stainless steel patch fitting in stainless steel polished finish.

Dimensions
Width: 72mm
Diameter: 50mm
Download Section Drawings
PDF DXF
Notes

Can be fixed to Steel, concrete and timber. Fixings must be ordered seperatly.

Used in the following Suites
Panorama SD13-03, SD13-04, SD13-11, SD13-12
Standoff Fittings
Code: ASO5050-S
Description

Stainless steel patch fitting in stainless steel satin finish.

Dimensions
Width: 72mm
Diameter: 50mm
Download Section Drawings
PDF DXF
Notes

Can be fixed to Steel, concrete and timber. Fixings must be ordered seperatly.

Used in the following Suites
Panorama SD13-03, SD13-04, SD13-11, SD13-12
