Panorama Suite - SD13-06

Code: SD13-06

Panorama SD13-06

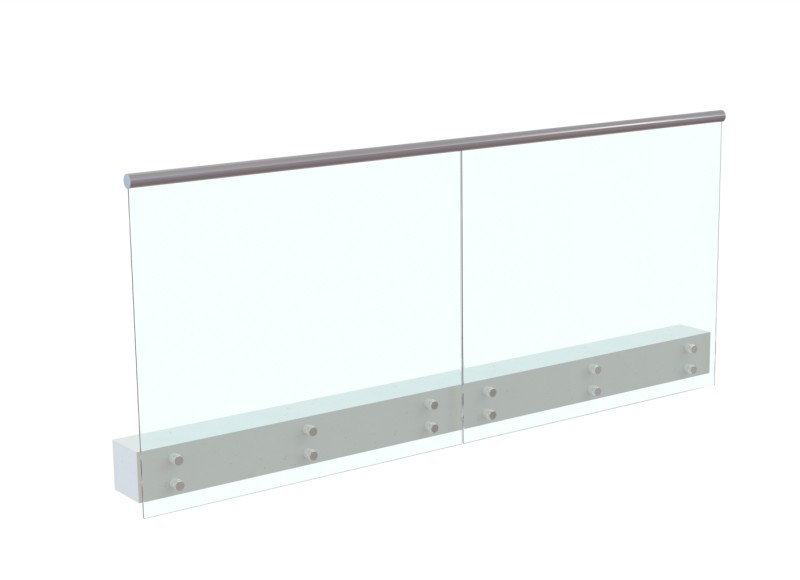

ASO3830 Stainless steel standoff fitting with RRS handrail.

Enquire Today

*Important note: Quantities of each component will vary, depending on the specifications for the individual project. Please contact our team to discuss your specific requirements:

enquiries@axiomgroup.com.au

1300 652 336
Suite System Drawing
Engineering Diagram
Suite System Drawing
AutoCAD Drawing
This Suite Requires the following components

(6 components)

Handrail Wall Plates
Handrail Wall Plates
Code: RWT
Description

Aluminium wall plate. To be used with RJS & RRS handrail when fixing off to an existing wall.

Dimensions
Width: 65mm
Height: 6mm
Depth: 83mm
Download Section Drawings
PDF DXF
Notes

Fix bracket to handrail with 2 x FV12-50 Screws. 4 x FV12-50 screws supplied.

Used in the following Suites
Metropolis SD11-05, SD11-05, SD11-06, SD11-06, SD11-07, SD11-07, SD11-08, SD11-08, SD11-09, SD11-09, SD11-10, SD11-10, SD11-19, SD11-19, SD11-20, SD11-20
Panorama SD13-02, SD13-02, SD13-04, SD13-04, SD13-06, SD13-06, SD13-08, SD13-08, SD13-10, SD13-10, SD13-12, SD13-12, SD13-14, SD13-14, SD13-16, SD13-16
Paramount SD14-02, SD14-02, SD14-04, SD14-04, SD14-06, SD14-06, SD14-12, SD14-12
Seascape SD16-03, SD16-03, SD16-04, SD16-04
Screws & Fixings
Screws & Fixings
Code: FV10-50
Description

10 gauge x 50mm long stainless steel screws with a countersunk head.

Dimensions
Length: 50mm
Gauge: 10mm
Download Section Drawings
DXF
Handrail Connectors
Handrail Connectors
Code: RJS90
Description

300mmx300mm long 90degree aluminium corner handrail joiner. To be used with RRS handrail on corners.

Dimensions
Width: 51mm
Depth: 39mm
Download Section Drawings
DXF
Notes

Press fit into handrail, 150mm in each side

Used in the following Suites
Metropolis SD11-05, SD11-06, SD11-07, SD11-08, SD11-09, SD11-10, SD11-19, SD11-20
Panorama SD13-02, SD13-04, SD13-06, SD13-08, SD13-10, SD13-12, SD13-14, SD13-16
Paramount SD14-02, SD14-04, SD14-06, SD14-12
Seascape SD16-03, SD16-04
Glazing Gaskets
Glazing Gaskets
Code: SWL15
Dimensions
Download Section Drawings
DXF
Notes

Used in the following Suites
Defender SD6-01
Panorama SD13-01, SD13-01, SD13-02, SD13-02, SD13-03, SD13-03, SD13-04, SD13-04, SD13-05, SD13-05, SD13-06, SD13-06, SD13-07, SD13-07, SD13-08, SD13-08
Standoff Fittings
Standoff Fittings
Code: ASO3830-P
Description

Stainless steel patch fitting in stainless steel polished finish.

Dimensions
Width: 50mm
Diameter: 38mm
Download Section Drawings
PDF DXF
Notes

Can be fixed to Steel, concrete and timber. Fixings must be ordered seperatly.

Used in the following Suites
Panorama SD13-05, SD13-06, SD13-13, SD13-14
Standoff Fittings
Code: ASO3830-S
Description

Stainless steel patch fitting in stainless steel satin finish.

Dimensions
Width: 50mm
Diameter: 38mm
Download Section Drawings
PDF DXF
Notes

Can be fixed to Steel, concrete and timber. Fixings must be ordered seperatly.

Used in the following Suites
Panorama SD13-05, SD13-06, SD13-13, SD13-14
