Vibe Suite - SD20-04

Code: SD20-04

Vibe SD20-04

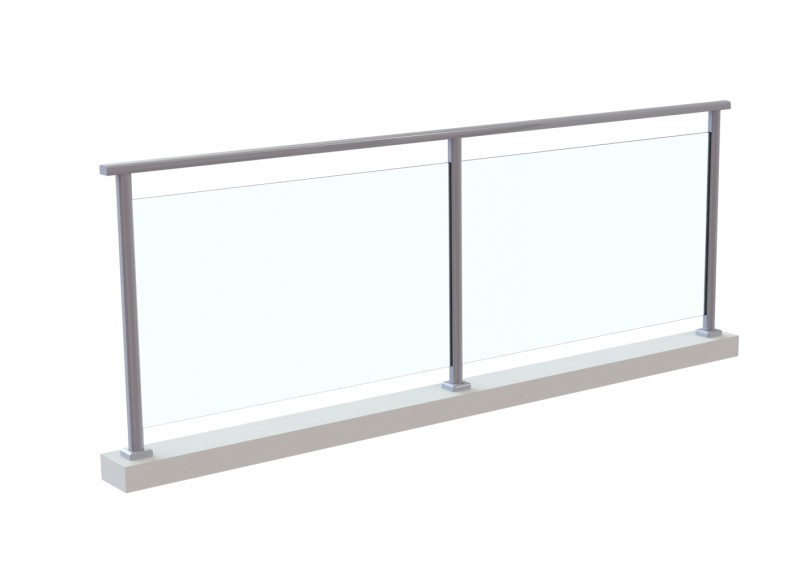

AXR post and BPAR base plate with DRT handrail.

Enquire Today

*Important note: Quantities of each component will vary, depending on the specifications for the individual project. Please contact our team to discuss your specific requirements:

enquiries@axiomgroup.com.au

1300 652 336
Suite System Drawing
Engineering Diagram
AutoCAD Drawing
Installation Instructions
This Suite Requires the following components

(8 components)

Screws & Fixings
Screws & Fixings
Code: FV10-45
Description

50mm long x 10 gauge, Quad thread, square drive, countersunk head, Stainless steel screw.

Dimensions
Width: 50mm
Gauge: 10mm
Download Section Drawings
PDF DXF
Screws & Fixings
Code: CSSM10130
Description

M10 X 130mm Capsule stud chisel Pt Ext Hex Drv GR316 S/S + Nut & washer

Dimensions
Length: 130mm
Download Section Drawings
DXF
Notes

Used in the following Suites
Alpha SD1-01, SD1-01, SD1-01, SD1-02, SD1-02, SD1-02, SD1-03, SD1-03, SD1-03, SD1-04, SD1-04, SD1-04, SD1-05, SD1-05, SD1-05, SD1-06, SD1-06, SD1-06, SD1-08, SD1-08, SD1-10, SD1-10, SD1-10, SD1-11, SD1-11, SD1-11
Defender SD6-01, SD6-01
Luna SD9-01, SD9-01, SD9-01, SD9-02, SD9-02, SD9-02, SD9-03, SD9-03
Lynfield SD10-01, SD10-02, SD10-03, SD10-04, SD10-05
Metropolis SD11-01, SD11-02, SD11-03, SD11-04, SD11-05, SD11-06, SD11-07, SD11-08, SD11-09, SD11-10, SD11-12, SD11-15, SD11-16, SD11-16, SD11-19, SD11-20, SD11-17
Neo SD12-01, SD12-01, SD12-02, SD12-02, SD12-03, SD12-03, SD12-04, SD12-04
Quest SD15-01, SD15-01, SD15-01, SD15-02, SD15-02, SD15-02, SD15-03, SD15-03, SD15-03, SD15-04, SD15-04, SD15-04
Spectra SD18-01, SD18-01, SD18-02, SD18-02, SD18-03, SD18-03, SD18-04, SD18-04
Vectro SD19-01, SD19-01, SD19-01, SD19-02, SD19-02, SD19-02, SD19-03, SD19-03, SD19-03, SD19-04, SD19-04, SD19-04, SD19-05, SD19-05, SD19-05, SD19-06, SD19-06, SD19-06, SD19-07, SD19-07, SD19-07, SD19-08, SD19-08, SD19-08, SD19-09, SD19-09, SD19-09, SD19-10, SD19-10, SD19-10, SD19-11, SD19-11, SD19-11, SD19-12, SD19-12, SD19-12, SD19-13, SD19-13, SD19-13, SD19-14, SD19-14, SD19-14, SD19-15, SD19-15, SD19-15, SD19-16, SD19-16, SD19-16, SD19-17, SD19-17, SD19-17, SD19-18, SD19-18, SD19-18, SD19-19, SD19-19, SD19-19, SD19-20, SD19-20, SD19-20, SD19-21, SD19-21, SD19-21, SD19-22, SD19-22, SD19-22, SD19-23, SD19-23, SD19-23
Vibe SD20-01, SD20-01, SD20-01, SD20-02, SD20-02, SD20-02, SD20-03, SD20-03, SD20-03, SD20-04, SD20-04, SD20-04
Vantage SD21-01, SD21-01
Eminence SD23-01, SD23-01, SD23-01, SD23-02, SD23-02, SD23-02, SD23-03, SD23-03, SD23-03, SD23-08, SD23-08, SD23-08, SD23-09, SD23-09, SD23-09, SD23-10, SD23-10, SD23-10, SD23-11, SD23-11, SD23-11, SD23-12, SD23-12, SD23-12, SD23-13, SD23-13, SD23-13, SD23-14, SD23-14, SD23-14, SD23-15, SD23-15, SD23-15, SD23-16, SD23-16, SD23-16, SD23-17, SD23-17, SD23-17, SD23-18, SD23-18, SD23-18, SD23-19, SD23-19, SD23-19
Eminence-Ps SD23-01(PS), SD23-01(PS), SD23-01(PS), SD23-02(PS), SD23-02(PS), SD23-02(PS), SD23-03(PS), SD23-03(PS), SD23-03(PS), SD23-08(PS), SD23-08(PS), SD23-08(PS), SD23-09(PS), SD23-09(PS), SD23-09(PS), SD23-10(PS), SD23-10(PS), SD23-10(PS), SD23-11(PS), SD23-11(PS), SD23-11(PS), SD23-12(PS), SD23-12(PS), SD23-12(PS), SD23-13(PS), SD23-13(PS), SD23-13(PS), SD23-14(PS), SD23-14(PS), SD23-14(PS), SD23-15(PS), SD23-15(PS), SD23-15(PS), SD23-16(PS), SD23-16(PS), SD23-16(PS), SD23-17(PS), SD23-17(PS), SD23-17(PS), SD23-18(PS), SD23-18(PS), SD23-18(PS), SD23-19(PS), SD23-19(PS), SD23-19(PS)
Rockley SD29-01
Guardian SD30-01, SD30-02
Screws & Fixings
Code: BRSCS
Description

25mm thread length x 10 gauge, with a 8 gauge Pan head square drive, Stainless steel screw.

Dimensions
Width: 25mm
Gauge: 10mm
Download Section Drawings
PDF DXF
Notes

Used in the following Suites
Alpha SD1-01, SD1-02, SD1-03, SD1-04, SD1-05, SD1-06, SD1-08, SD1-10, SD1-11
Classic SD2-01, SD2-02
Heritage SD3-01
Settler SD4-01, SD4-02
Vista SD5-01, SD5-02, SD5-25
Defender SD6-01
Linc SD7-01
Luna SD9-01, SD9-02, SD9-03
Lynfield SD10-01, SD10-02, SD10-03, SD10-04, SD10-05
Neo SD12-01, SD12-01, SD12-02, SD12-02, SD12-03, SD12-03, SD12-04, SD12-04
Quest SD15-01, SD15-01, SD15-02, SD15-02, SD15-03, SD15-03, SD15-04, SD15-04
Infinity SD17-01, SD17-02, SD17-03, SD17-04, SD17-05, SD17-06, SD17-07, SD17-08, SD17-09, SD17-10, SD17-11, SD17-12, SD17-13
Spectra SD18-01, SD18-01, SD18-02, SD18-02, SD18-03, SD18-03, SD18-04, SD18-04
Vectro SD19-03, SD19-04, SD19-05, SD19-06, SD19-07, SD19-08, SD19-08, SD19-09, SD19-09, SD19-10, SD19-10, SD19-11, SD19-11, SD19-12, SD19-13, SD19-13, SD19-14, SD19-14, SD19-15, SD19-15, SD19-16, SD19-16, SD19-17, SD19-18, SD19-18, SD19-19, SD19-19, SD19-20, SD19-20, SD19-21, SD19-21, SD19-23
Vibe SD20-01, SD20-01, SD20-02, SD20-02, SD20-03, SD20-03, SD20-04, SD20-04
Vantage SD21-01, SD21-01
Sapphire SD22-01, SD22-01
Eminence SD23-01, SD23-01, SD23-02, SD23-02, SD23-03, SD23-03, SD23-04, SD23-08, SD23-08, SD23-08, SD23-09, SD23-09, SD23-09, SD23-10, SD23-10, SD23-10, SD23-11, SD23-11, SD23-11, SD23-12, SD23-12, SD23-12, SD23-13, SD23-13, SD23-13, SD23-14, SD23-14, SD23-14, SD23-15, SD23-15, SD23-15, SD23-16, SD23-16, SD23-16, SD23-17, SD23-17, SD23-17, SD23-18, SD23-18, SD23-18, SD23-19, SD23-19, SD23-19, SD23-5
Eminence-Ps SD23-01(PS), SD23-01(PS), SD23-02(PS), SD23-02(PS), SD23-03(PS), SD23-03(PS), SD23-04(PS), SD23-08(PS), SD23-08(PS), SD23-08(PS), SD23-09(PS), SD23-09(PS), SD23-09(PS), SD23-10(PS), SD23-10(PS), SD23-10(PS), SD23-11(PS), SD23-11(PS), SD23-11(PS), SD23-12(PS), SD23-12(PS), SD23-12(PS), SD23-13(PS), SD23-13(PS), SD23-13(PS), SD23-14(PS), SD23-14(PS), SD23-14(PS), SD23-15(PS), SD23-15(PS), SD23-15(PS), SD23-16(PS), SD23-16(PS), SD23-16(PS), SD23-17(PS), SD23-17(PS), SD23-17(PS), SD23-18(PS), SD23-18(PS), SD23-18(PS), SD23-19(PS), SD23-19(PS), SD23-19(PS)
Rockley SD29-01
Guardian SD30-01, SD30-02
Infills
Infills
Code: AKS
Description

Rubber glass seat that slides down the glazing channel and sits ontop of the AIA infill. Can be used on all posts.

Dimensions
Width: 21mm
Height: 13mm
Depth: 24.8mm
Download Section Drawings
PDF DXF
Undercaps
Undercaps
Code: PZT
Description

Aluminium Undercap. Screw fixed to post. To be used with ARC, ART, DRT and PRR handrail.

Dimensions
Width: 54mm
Depth: 18mm
Download Section Drawings
PDF DXF
Notes

Fixed to posts with 4 x BRSCS screws. Fixings must be ordered seperatly.

Used in the following Suites
Neo SD12-01, SD12-02, SD12-03, SD12-04
Quest SD15-01, SD15-02, SD15-03, SD15-04
Spectra SD18-01, SD18-02, SD18-03, SD18-04
Vectro SD19-03, SD19-04, SD19-05, SD19-06
Vibe SD20-01, SD20-02, SD20-03, SD20-04
Sapphire SD22-01
Handrail Wall Plates
Handrail Wall Plates
Code: DWT
Description

Aluminium wall plate. To be used with DRT handrail when fixing off to an existing wall.

Dimensions
Width: 64mm
Height: 6mm
Depth: 70mm
Download Section Drawings
PDF DXF
Notes

Fix bracket to handrail with 4 x FV10-45 Screws. Only fixings to handrail are supplied.

Used in the following Suites
Neo SD12-04
Quest SD15-04
Spectra SD18-04
Vectro SD19-06, SD19-11, SD19-16, SD19-21
Vibe SD20-04
Eminence SD23-01, SD23-11, SD23-15, SD23-19
Eminence-Ps SD23-01(PS), SD23-11(PS), SD23-15(PS), SD23-19(PS)
Setting Blocks
Setting Blocks
Code: SBG
Description

Self adhesive setting block. Used for setting handrailing on top of glass and when glazing into posts to prevent glass movement.

Dimensions
Width: 25mm
Height: 9mm
Depth: 5mm
Download Section Drawings
PDF DXF
Notes

Used in the following Suites
Alpha SD1-01, SD1-02, SD1-03, SD1-04, SD1-05, SD1-08, SD1-10
Defender SD6-01
Luna SD9-01, SD9-02, SD9-03
Quest SD15-01, SD15-02, SD15-03, SD15-04
Neo SD12-01, SD12-02, SD12-03, SD12-04
Spectra SD18-01, SD18-02, SD18-03, SD18-04
Vectro SD19-01, SD19-02, SD19-03, SD19-04, SD19-05, SD19-06
Vibe SD20-01, SD20-02, SD20-03, SD20-04
Vantage SD21-01
Sapphire SD22-01
Eminence SD23-01, SD23-02, SD23-03, SD23-04
Setting Blocks
Code: ABB6
Description

Glass location block for the AFGIC, AFG35, AXR, AXRC

Dimensions
Width: 16mm
Depth: 5.5mm
Length: 200mm
Download Section Drawings
Notes

Used in the following Suites
Alpha SD1-01, SD1-02, SD1-03, SD1-04, SD1-05, SD1-06, SD1-08, SD1-10, SD1-11
Defender SD6-01
Luna SD9-01, SD9-02, SD9-03
Quest SD15-01, SD15-02, SD15-03, SD15-04
Vibe SD20-01, SD20-02, SD20-03, SD20-04
