Paramount SD14-12

Code: SD14-12

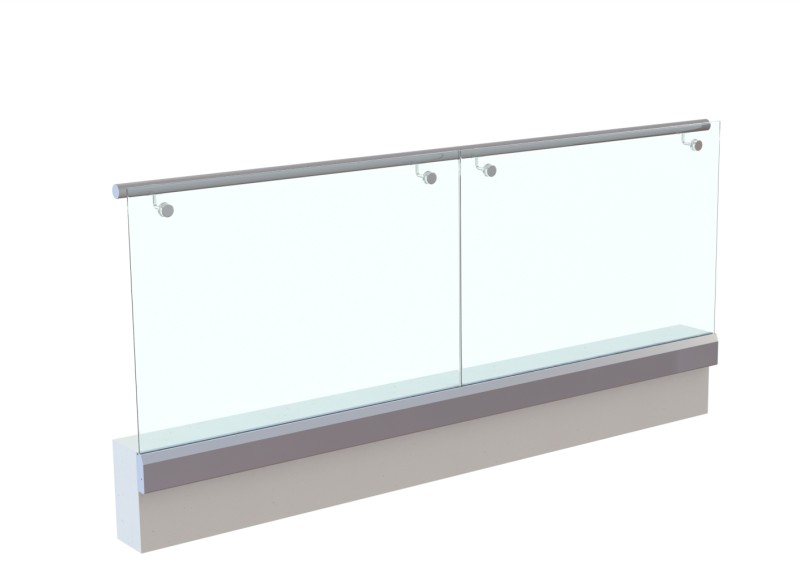

ABM - SCP Back mount glazing channel with RRS handrail fitted on the ASSHH1 handrail bracket.

Enquire Today

^*Important note: Quantities of each component will vary, depending on the specifications for the individual project. Please contact our team to discuss your specific requirements:

enquiries@axiomgroup.com.au

1300 652 336

Handrail Wall Plates

Code: RWT

Description

Aluminium wall plate. To be used with RJS & RRS handrail when fixing off to an existing wall.

Dimensions

Width:	65mm
Height:	6mm
Depth:	83mm

Notes

Fix bracket to handrail with 2 x FV12-50 Screws. 4 x FV12-50 screws supplied.

Screws & Fixings

Code: FV10-50

Description

10 gauge x 50mm long stainless steel screws with a countersunk head.

Dimensions

Length:	50mm
Gauge:	10mm

Notes

Screws & Fixings

Code: FV10-40

Description

10 gauge x 40mm long stainless steel screws with a countersunk head.

Dimensions

Length:	40mm
Gauge:	10mm

Notes

Screws & Fixings

Code: AS10100WGM

Description

100mm long x 10 gauge galvanised Ankascrew

Dimensions

Length:	100mm
Gauge:	10mm

Notes

Handrail Connectors

Code: RJS90

Description

300mmx300mm long 90degree aluminium corner handrail joiner. To be used with RRS handrail on corners.

Dimensions

Width:	51mm
Depth:	39mm

Notes

Press fit into handrail, 150mm in each side

Handrail Brackets

Code: ASSHH1

Description

Stainless steel handrail bracket assembly with a 38mm patch fitting for mounting to glass. 81mm from glass edge to middle of handrail plate.

Dimensions

Notes

Required 16mm hole in glass.

Back mount sections

Code: ABM-CWP

Description

Aluminium back mount wall to suit slab edges and hob walls. To suit 12mm glass.

Dimensions

Width:	41.2mm
Depth:	141.32mm

Notes

Mechanically fixed to concrete slab edge. Fixings must be ordered seperatly.

Back mount sections

Code: ABM-SCP

Description

Aluminium sqaure face plate for ABM-CWP & ABM-CWP15.

Dimensions

Width:	514.51mm
Depth:	150mm

Notes

Mechanically fixed to concrete slab edge. Fixings must be ordered seperatly.

Metropolis	SD11-05, SD11-05, SD11-06, SD11-06, SD11-07, SD11-07, SD11-08, SD11-08, SD11-09, SD11-09, SD11-10, SD11-10, SD11-19, SD11-19, SD11-20, SD11-20
Panorama	SD13-02, SD13-02, SD13-04, SD13-04, SD13-06, SD13-06, SD13-08, SD13-08, SD13-10, SD13-10, SD13-12, SD13-12, SD13-14, SD13-14, SD13-16, SD13-16
Paramount	SD14-02, SD14-02, SD14-04, SD14-04, SD14-06, SD14-06, SD14-12, SD14-12
Seascape	SD16-03, SD16-03, SD16-04, SD16-04

Metropolis	SD11-01, SD11-02, SD11-03, SD11-04, SD11-05, SD11-06, SD11-07, SD11-08, SD11-09, SD11-10, SD11-12, SD11-15, SD11-16, SD11-16, SD11-19, SD11-20, SD11-17
Panorama	SD13-01, SD13-02, SD13-03, SD13-04, SD13-05, SD13-06, SD13-07, SD13-08, SD13-09, SD13-10, SD13-11, SD13-12, SD13-13, SD13-14, SD13-15, SD13-16
Paramount	SD14-01, SD14-02, SD14-03, SD14-04, SD14-05, SD14-06, SD14-11, SD14-12
Seascape	SD16-02, SD16-03, SD16-04, SD16-05
Eminence	SD23-04, SD23-5
Eminence-Ps	SD23-04(PS)
Defender	SD6-01

Metropolis	SD11-05, SD11-06, SD11-07, SD11-08, SD11-09, SD11-10, SD11-19, SD11-20
Panorama	SD13-10, SD13-12, SD13-14, SD13-16
Paramount	SD14-06, SD14-12

Metropolis	SD11-05, SD11-06, SD11-07, SD11-08, SD11-09, SD11-10, SD11-19, SD11-20
Panorama	SD13-02, SD13-04, SD13-06, SD13-08, SD13-10, SD13-12, SD13-14, SD13-16
Paramount	SD14-02, SD14-04, SD14-06, SD14-12
Seascape	SD16-03, SD16-04

Metropolis	SD11-05, SD11-10, SD11-12, SD11-15, SD11-16, SD11-16, SD11-19, SD11-20, SD11-17
Panorama	SD13-09, SD13-10, SD13-11, SD13-12, SD13-13, SD13-14, SD13-15, SD13-16
Paramount	SD14-05, SD14-06, SD14-11, SD14-12
Seascape	SD16-04, SD16-05

Paramount	SD14-01, SD14-02, SD14-03, SD14-04, SD14-05, SD14-06, SD14-11, SD14-12
Rockley	SD29-01
