Code: SD14-03
Paramount SD14-03

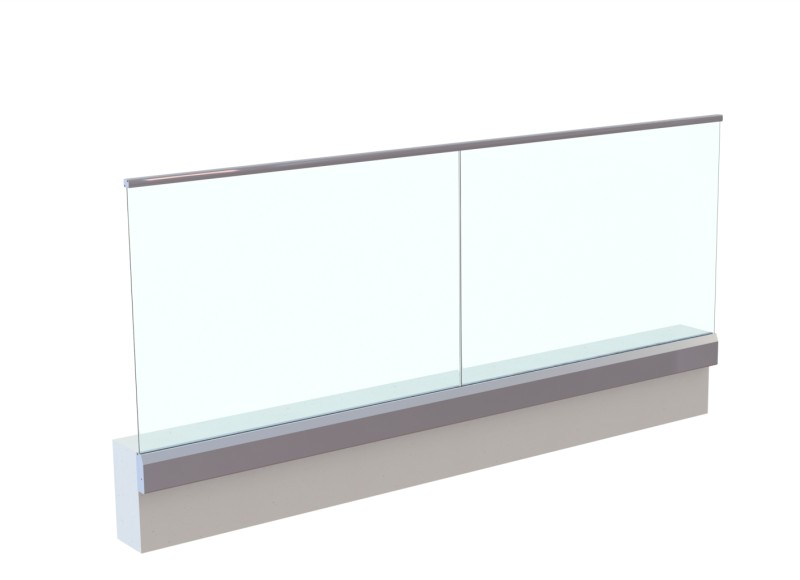

ABM - SCP Back mount glazing channel with ARN handrail.
Enquire Today
*Important note: Quantities of each component will vary, depending on the specifications for the individual project. Please contact our team to discuss your specific requirements:
enquiries@axiomgroup.com.au 1300 652 336This Suite Requires the following components
Handrail Wall Plates
Handrail Wall Plates
Code: ARNWPM
Description
Aluminium wall plate supplied with 300mm length of MANG. To be used with ARN handrail when fixing off to an existing wall.
Dimensions
| Width: | 42mm |
| Height: | 6mm |
| Depth: | 60mm |
Notes
Fix bracket to handrail with 2 x FV12-50 Screws. 4 x FV12-50 screws supplied.
Screws & Fixings
Screws & Fixings
Code: FV10-50
Description
10 gauge x 50mm long stainless steel screws with a countersunk head.
Dimensions
| Length: | 50mm |
| Gauge: | 10mm |
Notes
Screws & Fixings
Code: AS10100WGM
Description
100mm long x 10 gauge galvanised Ankascrew
Dimensions
| Length: | 100mm |
| Gauge: | 10mm |
Notes
Handrail Connectors
Handrail Connectors
Code: MANG90
Description
300mmx300mm long 90degree aluminium corner handrail joiner. To be used with ARN handrail on corners.
Dimensions
| Width: | 31mm |
| Depth: | 18.1mm |
Notes
Press fit into handrail, 150mm in each side
Back mount sections
Back mount sections
Code: ABM-CWP
Description
Aluminium back mount wall to suit slab edges and hob walls. To suit 12mm glass.
Dimensions
| Width: | 41.2mm |
| Depth: | 141.32mm |
Notes
Mechanically fixed to concrete slab edge. Fixings must be ordered seperatly.
Back mount sections
Code: ABM-SCP
Description
Aluminium sqaure face plate for ABM-CWP & ABM-CWP15.
Dimensions
| Width: | 514.51mm |
| Depth: | 150mm |
Notes
Mechanically fixed to concrete slab edge. Fixings must be ordered seperatly.
Glazing Gaskets
Glazing Gaskets
Code: ADST
Description
Roll of glazing tape
