Suite system Detail

Alpha SD1-03

Code: SD1-03

Back to Suite

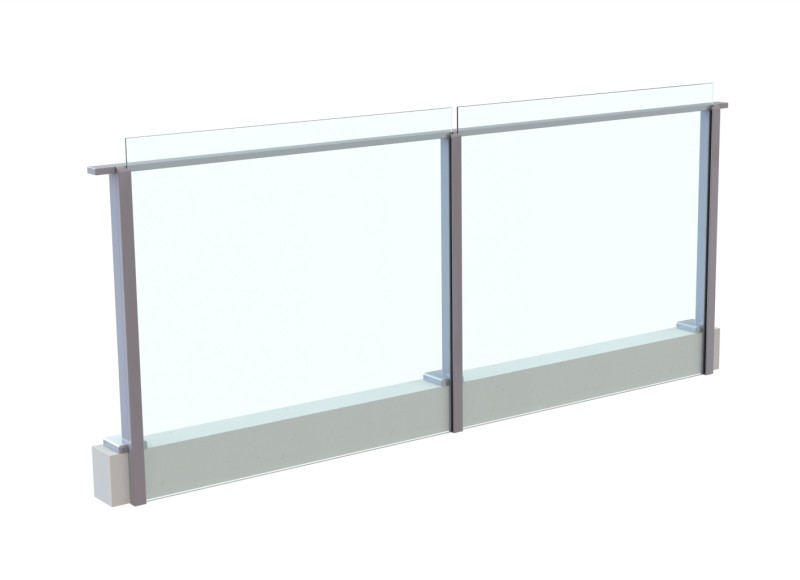

Alpha Suite - SD1-03

Code: SD1-03

Alpha SD1-03

AFG post with PRR handrail. Glass is extended down to cover the edge of the concrete slab and extends above the handrail.

Enquire Today

*Important note: Quantities of each component will vary, depending on the specifications for the individual project. Please contact our team to discuss your specific requirements:

enquiries@axiomgroup.com.au

1300 652 336
Suite System Drawing
Suite System Drawing
Engineering Diagram
AutoCAD Drawing
Installation Instructions
This Suite Requires the following components

(24 components)

Baseplates
Baseplates
Code: BPFGOH
Description

Aluminium overhang baseplate for use with AFG post into concrete.

Dimensions
Width: 142mm
Height: 16mm
Depth: 110mm
Download Section Drawings
PDF DXF
Notes

4 x FV10-45 stainless steel screws must used to connect the post to this baseplate, additonally the post must be welded to the baseplate. Fixings must be ordered seperatly.

Used in the following Suites
Alpha SD1-03, SD1-04
Luna SD9-02
Baseplates
Code: BPICOH
Description

Aluminium internal corner overhang baseplate for use with AFGIC post into concrete.

Dimensions
Width: 181mm
Height: 16mm
Depth: 110mm
Download Section Drawings
PDF DXF
Notes

6 x FV10-45 stainless steel screws must used to connect the post to this baseplate, additonally the post must be welded to the baseplate. Fixings must be ordered seperatly.

Used in the following Suites
Alpha SD1-03, SD1-04, SD1-05, SD1-06
Luna SD9-02
Baseplates
Code: BPECOH
Description

Aluminium external corner overhang baseplate for use with AFGEC post into concrete.

Dimensions
Width: 231mm
Height: 16mm
Depth: 110mm
Download Section Drawings
PDF DXF
Notes

6 x FV10-45 stainless steel screws must used to connect the post to this baseplate, additonally the post must be welded to the baseplate. 2 x FV10-19 for fixing AIA infil in place

Used in the following Suites
Alpha SD1-03, SD1-04, SD1-05, SD1-06
Luna SD9-02
Screws & Fixings
Screws & Fixings
Code: FV10-45
Description

50mm long x 10 gauge, Quad thread, square drive, countersunk head, Stainless steel screw.

Dimensions
Width: 50mm
Gauge: 10mm
Download Section Drawings
PDF DXF
Screws & Fixings
Code: CSSM10130
Description

M10 X 130mm Capsule stud chisel Pt Ext Hex Drv GR316 S/S + Nut & washer

Dimensions
Length: 130mm
Download Section Drawings
DXF
Notes

Used in the following Suites
Alpha SD1-01, SD1-01, SD1-01, SD1-02, SD1-02, SD1-02, SD1-03, SD1-03, SD1-03, SD1-04, SD1-04, SD1-04, SD1-05, SD1-05, SD1-05, SD1-06, SD1-06, SD1-06, SD1-08, SD1-08, SD1-10, SD1-10, SD1-10, SD1-11, SD1-11, SD1-11
Defender SD6-01, SD6-01
Luna SD9-01, SD9-01, SD9-01, SD9-02, SD9-02, SD9-02, SD9-03, SD9-03
Lynfield SD10-01, SD10-02, SD10-03, SD10-04, SD10-05
Metropolis SD11-01, SD11-02, SD11-03, SD11-04, SD11-05, SD11-06, SD11-07, SD11-08, SD11-09, SD11-10, SD11-12, SD11-15, SD11-16, SD11-16, SD11-19, SD11-20, SD11-17
Neo SD12-01, SD12-01, SD12-02, SD12-02, SD12-03, SD12-03, SD12-04, SD12-04
Quest SD15-01, SD15-01, SD15-01, SD15-02, SD15-02, SD15-02, SD15-03, SD15-03, SD15-03, SD15-04, SD15-04, SD15-04
Spectra SD18-01, SD18-01, SD18-02, SD18-02, SD18-03, SD18-03, SD18-04, SD18-04
Vectro SD19-01, SD19-01, SD19-01, SD19-02, SD19-02, SD19-02, SD19-03, SD19-03, SD19-03, SD19-04, SD19-04, SD19-04, SD19-05, SD19-05, SD19-05, SD19-06, SD19-06, SD19-06, SD19-07, SD19-07, SD19-07, SD19-08, SD19-08, SD19-08, SD19-09, SD19-09, SD19-09, SD19-10, SD19-10, SD19-10, SD19-11, SD19-11, SD19-11, SD19-12, SD19-12, SD19-12, SD19-13, SD19-13, SD19-13, SD19-14, SD19-14, SD19-14, SD19-15, SD19-15, SD19-15, SD19-16, SD19-16, SD19-16, SD19-17, SD19-17, SD19-17, SD19-18, SD19-18, SD19-18, SD19-19, SD19-19, SD19-19, SD19-20, SD19-20, SD19-20, SD19-21, SD19-21, SD19-21, SD19-22, SD19-22, SD19-22, SD19-23, SD19-23, SD19-23
Vibe SD20-01, SD20-01, SD20-01, SD20-02, SD20-02, SD20-02, SD20-03, SD20-03, SD20-03, SD20-04, SD20-04, SD20-04
Vantage SD21-01, SD21-01
Eminence SD23-01, SD23-01, SD23-01, SD23-02, SD23-02, SD23-02, SD23-03, SD23-03, SD23-03, SD23-08, SD23-08, SD23-08, SD23-09, SD23-09, SD23-09, SD23-10, SD23-10, SD23-10, SD23-11, SD23-11, SD23-11, SD23-12, SD23-12, SD23-12, SD23-13, SD23-13, SD23-13, SD23-14, SD23-14, SD23-14, SD23-15, SD23-15, SD23-15, SD23-16, SD23-16, SD23-16, SD23-17, SD23-17, SD23-17, SD23-18, SD23-18, SD23-18, SD23-19, SD23-19, SD23-19
Eminence-Ps SD23-01(PS), SD23-01(PS), SD23-01(PS), SD23-02(PS), SD23-02(PS), SD23-02(PS), SD23-03(PS), SD23-03(PS), SD23-03(PS), SD23-08(PS), SD23-08(PS), SD23-08(PS), SD23-09(PS), SD23-09(PS), SD23-09(PS), SD23-10(PS), SD23-10(PS), SD23-10(PS), SD23-11(PS), SD23-11(PS), SD23-11(PS), SD23-12(PS), SD23-12(PS), SD23-12(PS), SD23-13(PS), SD23-13(PS), SD23-13(PS), SD23-14(PS), SD23-14(PS), SD23-14(PS), SD23-15(PS), SD23-15(PS), SD23-15(PS), SD23-16(PS), SD23-16(PS), SD23-16(PS), SD23-17(PS), SD23-17(PS), SD23-17(PS), SD23-18(PS), SD23-18(PS), SD23-18(PS), SD23-19(PS), SD23-19(PS), SD23-19(PS)
Rockley SD29-01
Guardian SD30-01, SD30-02
Screws & Fixings
Code: BRSCS
Description

25mm thread length x 10 gauge, with a 8 gauge Pan head square drive, Stainless steel screw.

Dimensions
Width: 25mm
Gauge: 10mm
Download Section Drawings
PDF DXF
Notes

Used in the following Suites
Alpha SD1-01, SD1-02, SD1-03, SD1-04, SD1-05, SD1-06, SD1-08, SD1-10, SD1-11
Classic SD2-01, SD2-02
Heritage SD3-01
Settler SD4-01, SD4-02
Vista SD5-01, SD5-02, SD5-25
Defender SD6-01
Linc SD7-01
Luna SD9-01, SD9-02, SD9-03
Lynfield SD10-01, SD10-02, SD10-03, SD10-04, SD10-05
Neo SD12-01, SD12-01, SD12-02, SD12-02, SD12-03, SD12-03, SD12-04, SD12-04
Quest SD15-01, SD15-01, SD15-02, SD15-02, SD15-03, SD15-03, SD15-04, SD15-04
Infinity SD17-01, SD17-02, SD17-03, SD17-04, SD17-05, SD17-06, SD17-07, SD17-08, SD17-09, SD17-10, SD17-11, SD17-12, SD17-13
Spectra SD18-01, SD18-01, SD18-02, SD18-02, SD18-03, SD18-03, SD18-04, SD18-04
Vectro SD19-03, SD19-04, SD19-05, SD19-06, SD19-07, SD19-08, SD19-08, SD19-09, SD19-09, SD19-10, SD19-10, SD19-11, SD19-11, SD19-12, SD19-13, SD19-13, SD19-14, SD19-14, SD19-15, SD19-15, SD19-16, SD19-16, SD19-17, SD19-18, SD19-18, SD19-19, SD19-19, SD19-20, SD19-20, SD19-21, SD19-21, SD19-23
Vibe SD20-01, SD20-01, SD20-02, SD20-02, SD20-03, SD20-03, SD20-04, SD20-04
Vantage SD21-01, SD21-01
Sapphire SD22-01, SD22-01
Eminence SD23-01, SD23-01, SD23-02, SD23-02, SD23-03, SD23-03, SD23-04, SD23-08, SD23-08, SD23-08, SD23-09, SD23-09, SD23-09, SD23-10, SD23-10, SD23-10, SD23-11, SD23-11, SD23-11, SD23-12, SD23-12, SD23-12, SD23-13, SD23-13, SD23-13, SD23-14, SD23-14, SD23-14, SD23-15, SD23-15, SD23-15, SD23-16, SD23-16, SD23-16, SD23-17, SD23-17, SD23-17, SD23-18, SD23-18, SD23-18, SD23-19, SD23-19, SD23-19, SD23-5
Eminence-Ps SD23-01(PS), SD23-01(PS), SD23-02(PS), SD23-02(PS), SD23-03(PS), SD23-03(PS), SD23-04(PS), SD23-08(PS), SD23-08(PS), SD23-08(PS), SD23-09(PS), SD23-09(PS), SD23-09(PS), SD23-10(PS), SD23-10(PS), SD23-10(PS), SD23-11(PS), SD23-11(PS), SD23-11(PS), SD23-12(PS), SD23-12(PS), SD23-12(PS), SD23-13(PS), SD23-13(PS), SD23-13(PS), SD23-14(PS), SD23-14(PS), SD23-14(PS), SD23-15(PS), SD23-15(PS), SD23-15(PS), SD23-16(PS), SD23-16(PS), SD23-16(PS), SD23-17(PS), SD23-17(PS), SD23-17(PS), SD23-18(PS), SD23-18(PS), SD23-18(PS), SD23-19(PS), SD23-19(PS), SD23-19(PS)
Rockley SD29-01
Guardian SD30-01, SD30-02
Baseplates covers
Baseplates covers
Code: BPCFGOH
Description

Aluminium baseplate cover for us with BPFGOH Baseplate.

Dimensions
Width: 146.4mm
Height: 31mm
Depth: 115mm
Download Section Drawings
PDF DXF
Notes

Used in the following Suites
Alpha SD1-03, SD1-04
Luna SD9-02
Baseplates covers
Code: BPCFGOHIC
Description

Aluminium baseplate cover for us with BPIGOH Baseplate.

Dimensions
Width: 186mm
Height: 31mm
Depth: 115mm
Download Section Drawings
PDF DXF
Notes

Used in the following Suites
Alpha SD1-03, SD1-04, SD1-05, SD1-06
Luna SD9-02
Baseplates covers
Code: BPCFGOHEC
Description

Aluminium baseplate cover for us with BPECOH Baseplate.

Dimensions
Width: 221mm
Height: 31mm
Depth: 115mm
Download Section Drawings
PDF DXF
Notes

Used in the following Suites
Alpha SD1-03, SD1-04, SD1-05, SD1-06
Luna SD9-02
Posts
Posts
Code: AFG
Description

Aluminium glazing post with glazing recesses on both sides. Designed to take 10mm and 12mm thick glass.

Dimensions
Width: 85mm
Depth: 50mm
Download Section Drawings
PDF DXF
Notes

(Glaxing rubber must be ordered seperatly)

Used in the following Suites
Alpha SD1-01, SD1-02, SD1-03, SD1-04
Luna SD9-01, SD9-02, SD9-03
Guardian SD30-01, SD30-02
Posts
Code: AFGEC
Description

Aluminium external corner glazing post with glazing recesses on both sides. Designed to take 10mm and 12mm thick glass.

Dimensions
Width: 122mm
Depth: 50mm
Download Section Drawings
PDF DXF
Notes

(Glaxing rubber must be ordered seperatly)

Used in the following Suites
Alpha SD1-01, SD1-02, SD1-03, SD1-04, SD1-05, SD1-06, SD1-08, SD1-10, SD1-11
Defender SD6-01
Luna SD9-01, SD9-01, SD9-02, SD9-02, SD9-03, SD9-03
Guardian SD30-01, SD30-03
Posts
Code: AFGIC
Description

Aluminium internal corner glazing post with glazing recesses on both sides. Designed to take 10mm and 12mm thick glass.

Dimensions
Width: 117mm
Depth: 50mm
Download Section Drawings
PDF DXF
Notes

(Glaxing rubber must be ordered seperatly)

Used in the following Suites
Alpha SD1-01, SD1-02, SD1-03, SD1-04, SD1-05, SD1-06, SD1-08, SD1-10, SD1-11
Defender SD6-01
Luna SD9-01, SD9-02, SD9-03
Guardian SD30-01, SD30-03
Post Top Caps
Post Top Caps
Code: ACFG-L
Description

Aluminium cast top cap, to be used when glass panels extend past the top of an end post. To be used with AFG post

Dimensions
Width: 50mm
Height: 24mm
Depth: 25.7mm
Download Section Drawings
PDF DXF
Notes

Press fit into top of post.

Used in the following Suites
Alpha SD1-01, SD1-02, SD1-03, SD1-04, SD1-08
Post Top Caps
Code: ACFG
Description

Aluminium cast top cap, to be used when glass panels extend past the top of post. To be used with AFG post

Dimensions
Width: 50mm
Height: 24mm
Depth: 25.7mm
Download Section Drawings
PDF DXF
Notes

Press fit into top of post.

Used in the following Suites
Alpha SD1-01, SD1-02, SD1-03, SD1-04, SD1-08
Post Top Caps
Code: ACFG-R
Description

Aluminium cast top cap, to be used when glass panels extend past the top of an end post. To be used with AFG post

Dimensions
Width: 50mm
Height: 24mm
Depth: 25.7mm
Download Section Drawings
PDF DXF
Notes

Press fit into top of post.

Used in the following Suites
Alpha SD1-01, SD1-02, SD1-03, SD1-04, SD1-08
Post Top Caps
Code: AFGECCC
Description

Aluminium cast top cap with curved top face, to be used when glass finishes inline with top of an external post. To be used with AFGEC post.

Dimensions
Width: 65.2mm
Height: 24mm
Depth: 65.2mm
Download Section Drawings
PDF DXF
Notes

Press fit into top of post.

Used in the following Suites
Alpha SD1-01, SD1-02, SD1-03, SD1-04, SD1-05, SD1-06, SD1-08, SD1-10, SD1-11
Post Top Caps
Code: AFGICCC
Description

Aluminium cast top cap with curved top face, to be used when glass finishes inline with top of an internal post. To be used with AFGIC post.

Dimensions
Width: 53.6mm
Height: 24mm
Depth: 53.6mm
Download Section Drawings
PDF DXF
Notes

Press fit into top of post.

Used in the following Suites
Alpha SD1-01, SD1-02, SD1-03, SD1-04, SD1-05, SD1-06, SD1-08, SD1-10, SD1-11
Post bottom caps
Post bottom caps
Code: FGC
Description

Aluminium laser cut bottom cap, to be used on a overhang AFG post. Cap has drainage holes.

Dimensions
Width: 50mm
Height: 3mm
Depth: 37mm
Download Section Drawings
PDF DXF
Notes

Fixed to bottom of post with 4 x BRSCS screws . Fixings are supplied for this product.

Used in the following Suites
Alpha SD1-03, SD1-04
Luna SD9-02
Post bottom caps
Code: FGCIC
Description

Aluminium laser cut bottom cap, to be used on a overhang AFGIC post. Cap has drainage holes.

Dimensions
Width: 83mm
Height: 3mm
Depth: 46.5mm
Download Section Drawings
PDF DXF
Notes

Fixed to bottom of post with 6 x BRSCS screws . Fixings are supplied for this product.

Used in the following Suites
Alpha SD1-03, SD1-04, SD1-05, SD1-06
Luna SD9-02
Post bottom caps
Code: FGCEC
Description

Aluminium laser cut bottom cap, to be used on a overhang AFGEC post. Cap has drainage holes.

Dimensions
Width: 71mm
Height: 3mm
Depth: 71mm
Download Section Drawings
PDF DXF
Notes

Fixed to bottom of post with 6 x BRSCS screws . Fixings are supplied for this product.

Used in the following Suites
Alpha SD1-03, SD1-04, SD1-05, SD1-06
Luna SD9-02
Setting Blocks
Setting Blocks
Code: SBG
Description

Self adhesive setting block. Used for setting handrailing on top of glass and when glazing into posts to prevent glass movement.

Dimensions
Width: 25mm
Height: 9mm
Depth: 5mm
Download Section Drawings
PDF DXF
Notes

Used in the following Suites
Alpha SD1-01, SD1-02, SD1-03, SD1-04, SD1-05, SD1-08, SD1-10
Defender SD6-01
Luna SD9-01, SD9-02, SD9-03
Quest SD15-01, SD15-02, SD15-03, SD15-04
Neo SD12-01, SD12-02, SD12-03, SD12-04
Spectra SD18-01, SD18-02, SD18-03, SD18-04
Vectro SD19-01, SD19-02, SD19-03, SD19-04, SD19-05, SD19-06
Vibe SD20-01, SD20-02, SD20-03, SD20-04
Vantage SD21-01
Sapphire SD22-01
Eminence SD23-01, SD23-02, SD23-03, SD23-04
Setting Blocks
Code: ABB20
Description

Glass location block for the AFGEC post

Dimensions
Width: 20mm
Depth: 30mm
Length: 200mm
Download Section Drawings
Notes

Used in the following Suites
Alpha SD1-01, SD1-02, SD1-03, SD1-04, SD1-05, SD1-06, SD1-08, SD1-10, SD1-11
Defender SD6-01
Luna SD9-01, SD9-03, SD9-02
Guardian SD30-04
Setting Blocks
Code: ABBAFG
Description

Glass location block for the AFG and AFG2 post

Dimensions
Width: 19mm
Depth: 12mm
Length: 200mm
Download Section Drawings
Notes

Used in the following Suites
Alpha SD1-01, SD1-02, SD1-03, SD1-04, SD1-08
Luna SD9-01, SD9-02, SD9-03
Guardian SD30-01, SD30-02
Setting Blocks
Code: ABB6
Description

Glass location block for the AFGIC, AFG35, AXR, AXRC

Dimensions
Width: 16mm
Depth: 5.5mm
Length: 200mm
Download Section Drawings
Notes

Used in the following Suites
Alpha SD1-01, SD1-02, SD1-03, SD1-04, SD1-05, SD1-06, SD1-08, SD1-10, SD1-11
Defender SD6-01
Luna SD9-01, SD9-02, SD9-03
Quest SD15-01, SD15-02, SD15-03, SD15-04
Vibe SD20-01, SD20-02, SD20-03, SD20-04

Products you can trust. Contact a consultant for project specific certification.
