Guardian Suite - SD30-04

Code: SD30-04

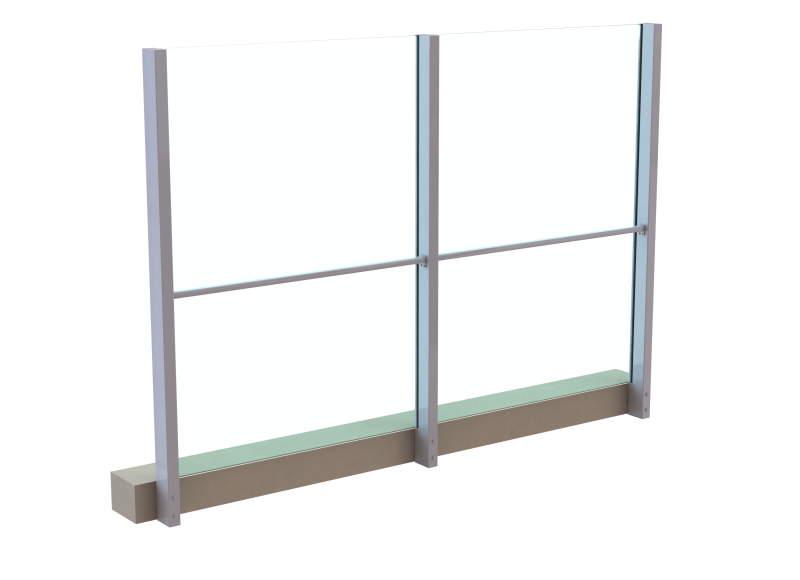

Guardian SD30-04

3KN post, face-fixed, with ARN handrail.

Enquire Today

*Important note: Quantities of each component will vary, depending on the specifications for the individual project. Please contact our team to discuss your specific requirements:

enquiries@axiomgroup.com.au

1300 652 336
Suite System Drawing
Engineering Diagram
AutoCAD Drawing
This Suite Requires the following components

(11 components)

Post Top Caps
Post Top Caps
Code: 3KNTC
Description

Flat post cap for the 3KN post.

Dimensions
Width: 60mm
Height: 6mm
Length: 125mm
Download Section Drawings
PDF
Notes

Used in the following Suites
Guardian SD30-03, SD30-04
Screws & Fixings
Screws & Fixings
Code: FV1045
Description

.

Dimensions
Download Section Drawings
Notes

Used in the following Suites
Rockley SD29-01
Lynfield SD10-04, SD10-05
Guardian SD30-01, SD30-02, SD30-03, SD30-04
Posts
Posts
Code: 3KNP
Description

Aluminium glazing post with glazing recesses on both sides. Designed to take 10mm and 12mm thick glass.

Dimensions
Width: 60mm
Depth: 125mm
Download Section Drawings
PDF DXF
Notes

(Glaxing rubber must be ordered seperatly)

Used in the following Suites
Defender SD6-01
Guardian SD30-03, SD30-04
Handrails
Handrails
Code: ARN
Description

Aluminium rectangular handrail. To be used with AIA infill in place of an undercap.

Dimensions
Width: 39mm
Depth: 30mm
Download Section Drawings
PDF DXF
Notes

Snaps in place over undercap.

Used in the following Suites
Smartglaze SD24-01, SD24-03, SD24-09, SD24-11
Guardian SD30-01, SD30-02, SD30-03, SD30-04
Handrail Wall Plates
Handrail Wall Plates
Code: ARNWP
Description

Aluminium wall plate. To be used with MANG Inline handrail connector for the ARN handrail.

Dimensions
Width: 42mm
Height: 6mm
Depth: 60mm
Download Section Drawings
PDF DXF
Notes

Fix bracket to handrail with 2 x FV12-50 Screws. 4 x FV12-50 screws supplied.

Used in the following Suites
Smartglaze SD24-01, SD24-09
Guardian SD30-02, SD30-04, SD30-01, SD30-03
Setting Blocks
Setting Blocks
Code: ABB20
Description

Glass location block for the AFGEC post

Dimensions
Width: 20mm
Depth: 30mm
Length: 200mm
Download Section Drawings
Notes

Used in the following Suites
Alpha SD1-01, SD1-02, SD1-03, SD1-04, SD1-05, SD1-06, SD1-08, SD1-10, SD1-11
Defender SD6-01
Luna SD9-01, SD9-03, SD9-02
Guardian SD30-04
Infills
Infills
Code: AKS
Description

Rubber glass seat that slides down the glazing channel and sits ontop of the AIA infill. Can be used on all posts.

Dimensions
Width: 21mm
Height: 13mm
Depth: 24.8mm
Download Section Drawings
PDF DXF
Infills
Code: AIR
Description

Aluminium post infill. Designed to snap into glazing pocket to close off open ends. Can be used on all posts

Dimensions
Width: 21.5mm
Depth: 9.6mm
Download Section Drawings
PDF DXF
Notes

Used in the following Suites
Rockley SD29-01
Guardian SD30-02, SD30-03, SD30-04, SD30-01
Infills
Code: AIA
Description

Aluminium infill that slides down screw flutes on post glazing channels. Can be used on all posts

Dimensions
Width: 21mm
Depth: 7.4mm
Download Section Drawings
PDF DXF
Notes

Used in the following Suites
Guardian SD30-02, SD30-03, SD30-04, SD30-01
Glazing Gaskets
Glazing Gaskets
Code: SRE
Description

Glazing rubber for fitting on external side of balustrade. Use inconjunction with SWE** glazing on 12mm glass.

Dimensions
Download Section Drawings
PDF DXF
Notes

Used in the following Suites
Rockley SD29-01
Guardian SD30-01, SD30-02, SD30-03, SD30-04
Glazing Gaskets
Code: SWE-55
Description



Dimensions
Download Section Drawings
Notes

Used in the following Suites
Smartglaze SD24-01, SD24-02, SD24-03, SD24-04, SD24-05, SD24-06, SD24-07, SD24-08
Guardian SD30-04
