Metropolis Suite - SD11-04

Code: SD11-04

Metropolis SD11-04

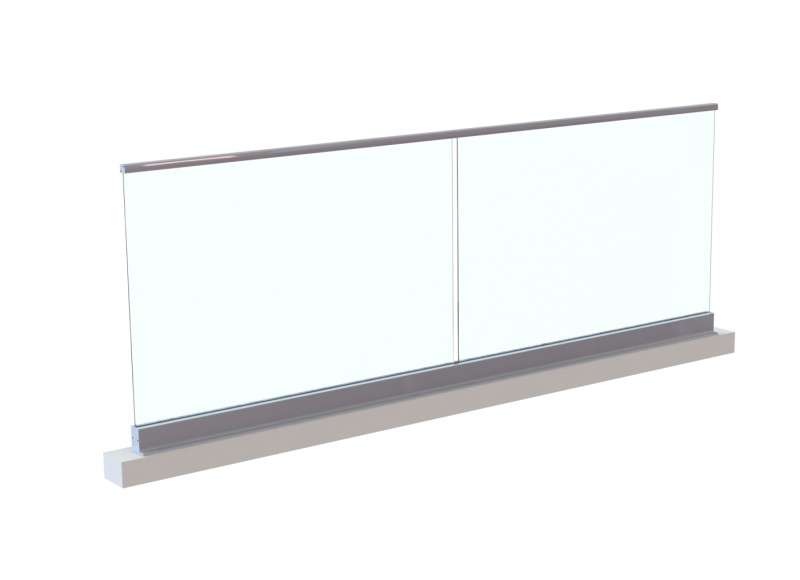

EZF glazing channel with ARN handrail.

Enquire Today

*Important note: Quantities of each component will vary, depending on the specifications for the individual project. Please contact our team to discuss your specific requirements:

enquiries@axiomgroup.com.au

1300 652 336
Suite System Drawing
Engineering Diagram
Suite System Drawing
AutoCAD Drawing
This Suite Requires the following components

(9 components)

Handrail Wall Plates
Handrail Wall Plates
Code: ARNWPM
Description

Aluminium wall plate supplied with 300mm length of MANG. To be used with ARN handrail when fixing off to an existing wall.

Dimensions
Width: 42mm
Height: 6mm
Depth: 60mm
Download Section Drawings
PDF DXF
Notes

Fix bracket to handrail with 2 x FV12-50 Screws. 4 x FV12-50 screws supplied.

Used in the following Suites
Metropolis SD11-01, SD11-02, SD11-03, SD11-04, SD11-12, SD11-15, SD11-16, SD11-16, SD11-17
Panorama SD13-01, SD13-03, SD13-05, SD13-07, SD13-09, SD13-11, SD13-13, SD13-15
Paramount SD14-01, SD14-03, SD14-05, SD14-11
Seascape SD16-02, SD16-05
Eminence SD23-04
Eminence-Ps SD23-04(PS)
Screws & Fixings
Screws & Fixings
Code: FV10-50
Description

10 gauge x 50mm long stainless steel screws with a countersunk head.

Dimensions
Length: 50mm
Gauge: 10mm
Download Section Drawings
DXF
Screws & Fixings
Code: CSSM10130
Description

M10 X 130mm Capsule stud chisel Pt Ext Hex Drv GR316 S/S + Nut & washer

Dimensions
Length: 130mm
Download Section Drawings
DXF
Notes

Used in the following Suites
Alpha SD1-01, SD1-01, SD1-01, SD1-02, SD1-02, SD1-02, SD1-03, SD1-03, SD1-03, SD1-04, SD1-04, SD1-04, SD1-05, SD1-05, SD1-05, SD1-06, SD1-06, SD1-06, SD1-08, SD1-08, SD1-10, SD1-10, SD1-10, SD1-11, SD1-11, SD1-11
Defender SD6-01, SD6-01
Luna SD9-01, SD9-01, SD9-01, SD9-02, SD9-02, SD9-02, SD9-03, SD9-03
Lynfield SD10-01, SD10-02, SD10-03, SD10-04, SD10-05
Metropolis SD11-01, SD11-02, SD11-03, SD11-04, SD11-05, SD11-06, SD11-07, SD11-08, SD11-09, SD11-10, SD11-12, SD11-15, SD11-16, SD11-16, SD11-19, SD11-20, SD11-17
Neo SD12-01, SD12-01, SD12-02, SD12-02, SD12-03, SD12-03, SD12-04, SD12-04
Quest SD15-01, SD15-01, SD15-01, SD15-02, SD15-02, SD15-02, SD15-03, SD15-03, SD15-03, SD15-04, SD15-04, SD15-04
Spectra SD18-01, SD18-01, SD18-02, SD18-02, SD18-03, SD18-03, SD18-04, SD18-04
Vectro SD19-01, SD19-01, SD19-01, SD19-02, SD19-02, SD19-02, SD19-03, SD19-03, SD19-03, SD19-04, SD19-04, SD19-04, SD19-05, SD19-05, SD19-05, SD19-06, SD19-06, SD19-06, SD19-07, SD19-07, SD19-07, SD19-08, SD19-08, SD19-08, SD19-09, SD19-09, SD19-09, SD19-10, SD19-10, SD19-10, SD19-11, SD19-11, SD19-11, SD19-12, SD19-12, SD19-12, SD19-13, SD19-13, SD19-13, SD19-14, SD19-14, SD19-14, SD19-15, SD19-15, SD19-15, SD19-16, SD19-16, SD19-16, SD19-17, SD19-17, SD19-17, SD19-18, SD19-18, SD19-18, SD19-19, SD19-19, SD19-19, SD19-20, SD19-20, SD19-20, SD19-21, SD19-21, SD19-21, SD19-22, SD19-22, SD19-22, SD19-23, SD19-23, SD19-23
Vibe SD20-01, SD20-01, SD20-01, SD20-02, SD20-02, SD20-02, SD20-03, SD20-03, SD20-03, SD20-04, SD20-04, SD20-04
Vantage SD21-01, SD21-01
Eminence SD23-01, SD23-01, SD23-01, SD23-02, SD23-02, SD23-02, SD23-03, SD23-03, SD23-03, SD23-08, SD23-08, SD23-08, SD23-09, SD23-09, SD23-09, SD23-10, SD23-10, SD23-10, SD23-11, SD23-11, SD23-11, SD23-12, SD23-12, SD23-12, SD23-13, SD23-13, SD23-13, SD23-14, SD23-14, SD23-14, SD23-15, SD23-15, SD23-15, SD23-16, SD23-16, SD23-16, SD23-17, SD23-17, SD23-17, SD23-18, SD23-18, SD23-18, SD23-19, SD23-19, SD23-19
Eminence-Ps SD23-01(PS), SD23-01(PS), SD23-01(PS), SD23-02(PS), SD23-02(PS), SD23-02(PS), SD23-03(PS), SD23-03(PS), SD23-03(PS), SD23-08(PS), SD23-08(PS), SD23-08(PS), SD23-09(PS), SD23-09(PS), SD23-09(PS), SD23-10(PS), SD23-10(PS), SD23-10(PS), SD23-11(PS), SD23-11(PS), SD23-11(PS), SD23-12(PS), SD23-12(PS), SD23-12(PS), SD23-13(PS), SD23-13(PS), SD23-13(PS), SD23-14(PS), SD23-14(PS), SD23-14(PS), SD23-15(PS), SD23-15(PS), SD23-15(PS), SD23-16(PS), SD23-16(PS), SD23-16(PS), SD23-17(PS), SD23-17(PS), SD23-17(PS), SD23-18(PS), SD23-18(PS), SD23-18(PS), SD23-19(PS), SD23-19(PS), SD23-19(PS)
Rockley SD29-01
Guardian SD30-01, SD30-02
Handrail Connectors
Handrail Connectors
Code: MANG90
Description

300mmx300mm long 90degree aluminium corner handrail joiner. To be used with ARN handrail on corners.

Dimensions
Width: 31mm
Depth: 18.1mm
Download Section Drawings
DXF
Notes

Press fit into handrail, 150mm in each side

Used in the following Suites
Metropolis SD11-01, SD11-02, SD11-03, SD11-04, SD11-12, SD11-15, SD11-16, SD11-16, SD11-17
Panorama SD13-01, SD13-03, SD13-05, SD13-07, SD13-09, SD13-11, SD13-13, SD13-15
Paramount SD14-01, SD14-03, SD14-05, SD14-11
Seascape SD16-02, SD16-05
Eminence SD23-04
Eminence-Ps SD23-04(PS)
Base mount channels
Base mount channels
Code: EZF
Description

Aluminium base mount glazing channel. Requires setting blocks for glass panels.

Dimensions
Width: 90mm
Depth: 96mm
Download Section Drawings
PDF DXF
Notes

Mechanically fixed to concrete slab. Fixings must be ordered seperatly.

Used in the following Suites
Metropolis SD11-04, SD11-04, SD11-09, SD11-10, SD11-12
Base mount channels
Code: EVF
Description

Aluminium side clip for EZF Channel

Dimensions
Width: 20mm
Depth: 15mm
Download Section Drawings
PDF DXF
Notes

Mechanically fixed to concrete slab. Fixings must be ordered seperatly.

Used in the following Suites
Metropolis SD11-09, SD11-10, SD11-12, SD11-04
Setting Blocks
Setting Blocks
Code: SBS
Description

Nylon setting block for the AZD and EZF channels.

Dimensions
Width: 50mm
Height: 19mm
Depth: 17mm
Download Section Drawings
PDF DXF
Notes

Used in the following Suites
Metropolis SD11-03, SD11-04, SD11-08, SD11-09, SD11-10, SD11-12, SD11-15, SD11-19, SD11-20
Glazing Gaskets
Glazing Gaskets
Code: NSGROUT
Description

Bag of non-shrink grout

Dimensions
Download Section Drawings
DXF
Notes

Used in the following Suites
Metropolis SD11-01, SD11-02, SD11-03, SD11-04, SD11-05, SD11-06, SD11-07, SD11-08, SD11-09, SD11-10, SD11-12, SD11-15, SD11-16, SD11-16, SD11-19, SD11-20, SD11-17
Channel End Caps
Channel End Caps
Code: ECF
Description

Aluminium laser cut end cap for EZF glazing channel.

Dimensions
Width: 90mm
Height: 98mm
Depth: 6mm
Download Section Drawings
PDF DXF
Notes

Fixed to glazing channel 2 x ECS screws. Fixings are supplied for this product.

Used in the following Suites
Metropolis SD11-04, SD11-09, SD11-10, SD11-12
