Suite system Detail

Vantage SD21-01

Code: SD21-01

Back to Suite

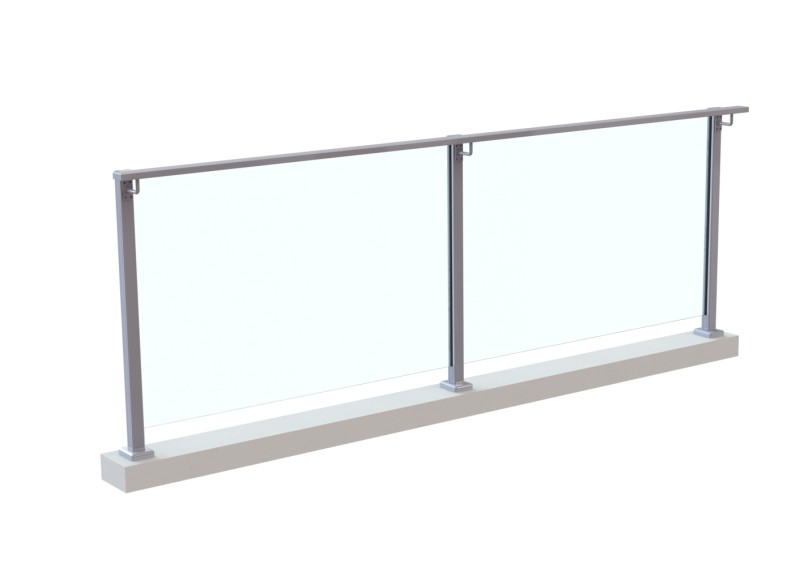

Vantage Suite - SD21-01

Code: SD21-01

Vantage SD21-01

APR post and BPTF base plate with PRR handrail mounted on DWH handrail brackets.

Enquire Today

*Important note: Quantities of each component will vary, depending on the specifications for the individual project. Please contact our team to discuss your specific requirements:

enquiries@axiomgroup.com.au

1300 652 336
Suite System Drawing
AutoCAD Drawing
Installation Instructions
This Suite Requires the following components

(14 components)

Screws & Fixings
Screws & Fixings
Code: FV10-45
Description

50mm long x 10 gauge, Quad thread, square drive, countersunk head, Stainless steel screw.

Dimensions
Width: 50mm
Gauge: 10mm
Download Section Drawings
PDF DXF
Screws & Fixings
Code: CSSM12160
Description

M12 X 160mm Capsule stud chisel Pt Ext Hex Drv GR316 S/S + Nut & washer

Dimensions
Length: 120mm
Download Section Drawings
DXF
Notes

Used in the following Suites
Alpha SD1-08
Classic SD2-01, SD2-01, SD2-02, SD2-02
Heritage SD3-01, SD3-01
Settler SD4-01, SD4-01, SD4-02, SD4-02
Vista SD5-01, SD5-01, SD5-02, SD5-02, SD5-25, SD5-25
Defender SD6-01
Linc SD7-01, SD7-01, SD7-01
Luna SD9-03
Neo SD12-01, SD12-02, SD12-03, SD12-04
Spectra SD18-01, SD18-02, SD18-03, SD18-04
Vantage SD21-01
Screws & Fixings
Code: SBM12160
Description

M12 x 160mm Screw bolt

Dimensions
Length: 160mm
Download Section Drawings
DXF
Notes

Used in the following Suites
Alpha SD1-08
Classic SD2-01, SD2-01, SD2-02, SD2-02
Heritage SD3-01, SD3-01
Settler SD4-01, SD4-01, SD4-02, SD4-02
Vista SD5-01, SD5-01, SD5-02, SD5-02, SD5-25, SD5-25
Defender SD6-01
Linc SD7-01, SD7-01, SD7-01
Luna SD9-03
Neo SD12-01, SD12-02, SD12-03, SD12-04
Spectra SD18-01, SD18-02, SD18-03, SD18-04
Vantage SD21-01
Screws & Fixings
Code: CSSM10130
Description

M10 X 130mm Capsule stud chisel Pt Ext Hex Drv GR316 S/S + Nut & washer

Dimensions
Length: 130mm
Download Section Drawings
DXF
Notes

Used in the following Suites
Alpha SD1-01, SD1-01, SD1-01, SD1-02, SD1-02, SD1-02, SD1-03, SD1-03, SD1-03, SD1-04, SD1-04, SD1-04, SD1-05, SD1-05, SD1-05, SD1-06, SD1-06, SD1-06, SD1-08, SD1-08, SD1-10, SD1-10, SD1-10, SD1-11, SD1-11, SD1-11
Defender SD6-01, SD6-01
Luna SD9-01, SD9-01, SD9-01, SD9-02, SD9-02, SD9-02, SD9-03, SD9-03
Lynfield SD10-01, SD10-02, SD10-03, SD10-04, SD10-05
Metropolis SD11-01, SD11-02, SD11-03, SD11-04, SD11-05, SD11-06, SD11-07, SD11-08, SD11-09, SD11-10, SD11-12, SD11-15, SD11-16, SD11-16, SD11-19, SD11-20, SD11-17
Neo SD12-01, SD12-01, SD12-02, SD12-02, SD12-03, SD12-03, SD12-04, SD12-04
Quest SD15-01, SD15-01, SD15-01, SD15-02, SD15-02, SD15-02, SD15-03, SD15-03, SD15-03, SD15-04, SD15-04, SD15-04
Spectra SD18-01, SD18-01, SD18-02, SD18-02, SD18-03, SD18-03, SD18-04, SD18-04
Vectro SD19-01, SD19-01, SD19-01, SD19-02, SD19-02, SD19-02, SD19-03, SD19-03, SD19-03, SD19-04, SD19-04, SD19-04, SD19-05, SD19-05, SD19-05, SD19-06, SD19-06, SD19-06, SD19-07, SD19-07, SD19-07, SD19-08, SD19-08, SD19-08, SD19-09, SD19-09, SD19-09, SD19-10, SD19-10, SD19-10, SD19-11, SD19-11, SD19-11, SD19-12, SD19-12, SD19-12, SD19-13, SD19-13, SD19-13, SD19-14, SD19-14, SD19-14, SD19-15, SD19-15, SD19-15, SD19-16, SD19-16, SD19-16, SD19-17, SD19-17, SD19-17, SD19-18, SD19-18, SD19-18, SD19-19, SD19-19, SD19-19, SD19-20, SD19-20, SD19-20, SD19-21, SD19-21, SD19-21, SD19-22, SD19-22, SD19-22, SD19-23, SD19-23, SD19-23
Vibe SD20-01, SD20-01, SD20-01, SD20-02, SD20-02, SD20-02, SD20-03, SD20-03, SD20-03, SD20-04, SD20-04, SD20-04
Vantage SD21-01, SD21-01
Eminence SD23-01, SD23-01, SD23-01, SD23-02, SD23-02, SD23-02, SD23-03, SD23-03, SD23-03, SD23-08, SD23-08, SD23-08, SD23-09, SD23-09, SD23-09, SD23-10, SD23-10, SD23-10, SD23-11, SD23-11, SD23-11, SD23-12, SD23-12, SD23-12, SD23-13, SD23-13, SD23-13, SD23-14, SD23-14, SD23-14, SD23-15, SD23-15, SD23-15, SD23-16, SD23-16, SD23-16, SD23-17, SD23-17, SD23-17, SD23-18, SD23-18, SD23-18, SD23-19, SD23-19, SD23-19
Eminence-Ps SD23-01(PS), SD23-01(PS), SD23-01(PS), SD23-02(PS), SD23-02(PS), SD23-02(PS), SD23-03(PS), SD23-03(PS), SD23-03(PS), SD23-08(PS), SD23-08(PS), SD23-08(PS), SD23-09(PS), SD23-09(PS), SD23-09(PS), SD23-10(PS), SD23-10(PS), SD23-10(PS), SD23-11(PS), SD23-11(PS), SD23-11(PS), SD23-12(PS), SD23-12(PS), SD23-12(PS), SD23-13(PS), SD23-13(PS), SD23-13(PS), SD23-14(PS), SD23-14(PS), SD23-14(PS), SD23-15(PS), SD23-15(PS), SD23-15(PS), SD23-16(PS), SD23-16(PS), SD23-16(PS), SD23-17(PS), SD23-17(PS), SD23-17(PS), SD23-18(PS), SD23-18(PS), SD23-18(PS), SD23-19(PS), SD23-19(PS), SD23-19(PS)
Rockley SD29-01
Guardian SD30-01, SD30-02
Screws & Fixings
Code: BRSCS
Description

25mm thread length x 10 gauge, with a 8 gauge Pan head square drive, Stainless steel screw.

Dimensions
Width: 25mm
Gauge: 10mm
Download Section Drawings
PDF DXF
Notes

Used in the following Suites
Alpha SD1-01, SD1-02, SD1-03, SD1-04, SD1-05, SD1-06, SD1-08, SD1-10, SD1-11
Classic SD2-01, SD2-02
Heritage SD3-01
Settler SD4-01, SD4-02
Vista SD5-01, SD5-02, SD5-25
Defender SD6-01
Linc SD7-01
Luna SD9-01, SD9-02, SD9-03
Lynfield SD10-01, SD10-02, SD10-03, SD10-04, SD10-05
Neo SD12-01, SD12-01, SD12-02, SD12-02, SD12-03, SD12-03, SD12-04, SD12-04
Quest SD15-01, SD15-01, SD15-02, SD15-02, SD15-03, SD15-03, SD15-04, SD15-04
Infinity SD17-01, SD17-02, SD17-03, SD17-04, SD17-05, SD17-06, SD17-07, SD17-08, SD17-09, SD17-10, SD17-11, SD17-12, SD17-13
Spectra SD18-01, SD18-01, SD18-02, SD18-02, SD18-03, SD18-03, SD18-04, SD18-04
Vectro SD19-03, SD19-04, SD19-05, SD19-06, SD19-07, SD19-08, SD19-08, SD19-09, SD19-09, SD19-10, SD19-10, SD19-11, SD19-11, SD19-12, SD19-13, SD19-13, SD19-14, SD19-14, SD19-15, SD19-15, SD19-16, SD19-16, SD19-17, SD19-18, SD19-18, SD19-19, SD19-19, SD19-20, SD19-20, SD19-21, SD19-21, SD19-23
Vibe SD20-01, SD20-01, SD20-02, SD20-02, SD20-03, SD20-03, SD20-04, SD20-04
Vantage SD21-01, SD21-01
Sapphire SD22-01, SD22-01
Eminence SD23-01, SD23-01, SD23-02, SD23-02, SD23-03, SD23-03, SD23-04, SD23-08, SD23-08, SD23-08, SD23-09, SD23-09, SD23-09, SD23-10, SD23-10, SD23-10, SD23-11, SD23-11, SD23-11, SD23-12, SD23-12, SD23-12, SD23-13, SD23-13, SD23-13, SD23-14, SD23-14, SD23-14, SD23-15, SD23-15, SD23-15, SD23-16, SD23-16, SD23-16, SD23-17, SD23-17, SD23-17, SD23-18, SD23-18, SD23-18, SD23-19, SD23-19, SD23-19, SD23-5
Eminence-Ps SD23-01(PS), SD23-01(PS), SD23-02(PS), SD23-02(PS), SD23-03(PS), SD23-03(PS), SD23-04(PS), SD23-08(PS), SD23-08(PS), SD23-08(PS), SD23-09(PS), SD23-09(PS), SD23-09(PS), SD23-10(PS), SD23-10(PS), SD23-10(PS), SD23-11(PS), SD23-11(PS), SD23-11(PS), SD23-12(PS), SD23-12(PS), SD23-12(PS), SD23-13(PS), SD23-13(PS), SD23-13(PS), SD23-14(PS), SD23-14(PS), SD23-14(PS), SD23-15(PS), SD23-15(PS), SD23-15(PS), SD23-16(PS), SD23-16(PS), SD23-16(PS), SD23-17(PS), SD23-17(PS), SD23-17(PS), SD23-18(PS), SD23-18(PS), SD23-18(PS), SD23-19(PS), SD23-19(PS), SD23-19(PS)
Rockley SD29-01
Guardian SD30-01, SD30-02
Screws & Fixings
Code: MPS
Description

14G x 20mm long Stainless steel screw.

Dimensions
Length: 20mm
Gauge: 14mm
Download Section Drawings
DXF
Screws & Fixings
Code: HBPS
Description

10 gauge x 25mm long, Philips drive, countersink head, Stainless steel screws.

Dimensions
Length: 25mm
Gauge: 10mm
Download Section Drawings
DXF
Infills
Infills
Code: AKS
Description

Rubber glass seat that slides down the glazing channel and sits ontop of the AIA infill. Can be used on all posts.

Dimensions
Width: 21mm
Height: 13mm
Depth: 24.8mm
Download Section Drawings
PDF DXF
Handrail Wall Plates
Handrail Wall Plates
Code: AWT
Description

Aluminium wall plate. To be used with ART handrail when fixing off to an existing wall.

Dimensions
Width: 88mm
Height: 6mm
Depth: 50mm
Download Section Drawings
PDF DXF
Notes

Fix bracket to handrail with 2 x FV10-45 Screws. 4 x FV10-45 screws supplied.

Used in the following Suites
Neo SD12-01, SD12-02
Quest SD15-01, SD15-02
Spectra SD18-01, SD18-02
Vectro SD19-03, SD19-04, SD19-08, SD19-09, SD19-13, SD19-14, SD19-18, SD19-19
Vibe SD20-01, SD20-02
Vantage SD21-01
Sapphire SD22-01
Eminence SD23-03, SD23-08, SD23-09, SD23-12, SD23-13, SD23-16, SD23-17
Eminence-Ps SD23-03(PS), SD23-08(PS), SD23-09(PS), SD23-12(PS), SD23-13(PS), SD23-16(PS), SD23-17(PS)
Handrail Brackets
Handrail Brackets
Code: DWH
Description

Handrail bracket, drilled and tapped ends. Part of ASSHH1 and ASHH2 Assmbly.

Dimensions
Width: 84mm
Depth: 58mm
Diameter: 12mm
Download Section Drawings
PDF DXF
Notes

Fix bracket to patch fitting and handrail plate. 1 x M5 Screw for fittng to handrail bracket supplied.

Used in the following Suites
Vantage SD21-01
Eminence SD23-01, SD23-02, SD23-03, SD23-04, SD23-08, SD23-09, SD23-10, SD23-11, SD23-12, SD23-13, SD23-14, SD23-15, SD23-16, SD23-17, SD23-18, SD23-19, SD23-5
Eminence-Ps SD23-01(PS), SD23-02(PS), SD23-03(PS), SD23-04(PS), SD23-08(PS), SD23-09(PS), SD23-10(PS), SD23-11(PS), SD23-12(PS), SD23-13(PS), SD23-14(PS), SD23-15(PS), SD23-16(PS), SD23-17(PS), SD23-18(PS), SD23-19(PS)
Handrail Brackets
Code: DWHFP
Description

Flat aluminium handrail plate. To suit square handrails.

Dimensions
Width: 20mm
Height: 3mm
Depth: 55mm
Download Section Drawings
PDF DXF
Handrail Brackets
Code: DWHMP
Description

flat plate for DWH bracket to fix to square posts and walls.

Dimensions
Width: 38mm
Height: 6mm
Depth: 70mm
Download Section Drawings
PDF DXF
Setting Blocks
Setting Blocks
Code: SBG
Description

Self adhesive setting block. Used for setting handrailing on top of glass and when glazing into posts to prevent glass movement.

Dimensions
Width: 25mm
Height: 9mm
Depth: 5mm
Download Section Drawings
PDF DXF
Notes

Used in the following Suites
Alpha SD1-01, SD1-02, SD1-03, SD1-04, SD1-05, SD1-08, SD1-10
Defender SD6-01
Luna SD9-01, SD9-02, SD9-03
Quest SD15-01, SD15-02, SD15-03, SD15-04
Neo SD12-01, SD12-02, SD12-03, SD12-04
Spectra SD18-01, SD18-02, SD18-03, SD18-04
Vectro SD19-01, SD19-02, SD19-03, SD19-04, SD19-05, SD19-06
Vibe SD20-01, SD20-02, SD20-03, SD20-04
Vantage SD21-01
Sapphire SD22-01
Eminence SD23-01, SD23-02, SD23-03, SD23-04
Setting Blocks
Code: ABB12
Description

Glass location block for the APR, APE, APQ

Dimensions
Width: 20mm
Depth: 12mm
Length: 200mm
Download Section Drawings
Notes

Used in the following Suites
Neo SD12-01, SD12-02, SD12-03, SD12-04
Spectra SD18-01, SD18-02, SD18-03, SD18-04
Vantage SD21-01
Vectro SD19-01, SD19-02, SD19-03, SD19-04, SD19-05, SD19-06
Eminence SD23-02, SD23-03, SD23-04

Products you can trust. Contact a consultant for project specific certification.
