Metropolis SD11-02

Code: SD11-02

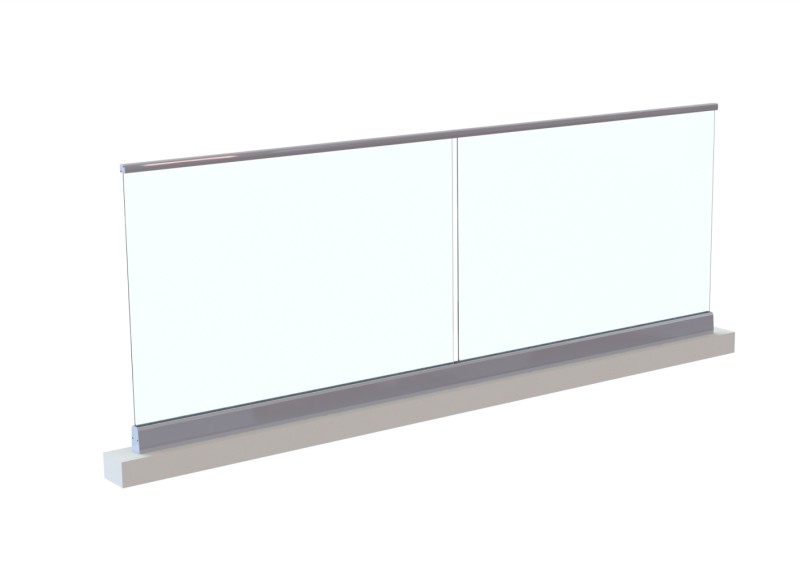

AZC glazing channel with ARN handrail.

Enquire Today

^*Important note: Quantities of each component will vary, depending on the specifications for the individual project. Please contact our team to discuss your specific requirements:

enquiries@axiomgroup.com.au

1300 652 336

Handrail Wall Plates

Code: ARNWPM

Description

Aluminium wall plate supplied with 300mm length of MANG. To be used with ARN handrail when fixing off to an existing wall.

Dimensions

Width:	42mm
Height:	6mm
Depth:	60mm

Notes

Fix bracket to handrail with 2 x FV12-50 Screws. 4 x FV12-50 screws supplied.

Screws & Fixings

Code: FV10-50

Description

10 gauge x 50mm long stainless steel screws with a countersunk head.

Dimensions

Length:	50mm
Gauge:	10mm

Notes

Screws & Fixings

Code: CSSM10130

Description

M10 X 130mm Capsule stud chisel Pt Ext Hex Drv GR316 S/S + Nut & washer

Dimensions

Length:

130mm

Notes

Handrail Connectors

Code: MANG90

Description

300mmx300mm long 90degree aluminium corner handrail joiner. To be used with ARN handrail on corners.

Dimensions

Width:	31mm
Depth:	18.1mm

Notes

Press fit into handrail, 150mm in each side

Base mount channels

Code: AZC

Description

Aluminium base mount glazing channel. Requires setting blocks for glass panels.

Dimensions

Width:	60mm
Depth:	100mm

Notes

Mechanically fixed to concrete slab. Fixings must be ordered seperatly.

Setting Blocks

Code: SBM

Description

Nylon setting block for the EZM and AZC channels.

Dimensions

Width:	25mm
Height:	25mm
Depth:	12mm

Notes

Glazing Gaskets

Code: NSGROUT

Description

Bag of non-shrink grout

Dimensions

Notes

Glazing Gaskets

Code: SRB

Description

Glazing rubber for fitting on external side of balustrade.

Dimensions

Notes

Glazing Gaskets

Code: SWZ9

Description

Glazing rubber for fitting on internal side of balustrade. Use inconjunction with SRB glazing on 12mm glass in base mount channels.

Dimensions

Notes

Channel End Caps

Code: ACC

Description

Aluminium laser cut end cap for AZC glazing channel.

Dimensions

Width:	60mm
Height:	3mm
Depth:	100mm

Notes

Fixed to glazing channel 2 x ECS screws. Fixings are supplied for this product.
