Suite system Detail

Seascape SD16-03

Code: SD16-03

Back to Suite
Seascape Suite - SD16-03

Code: SD16-03

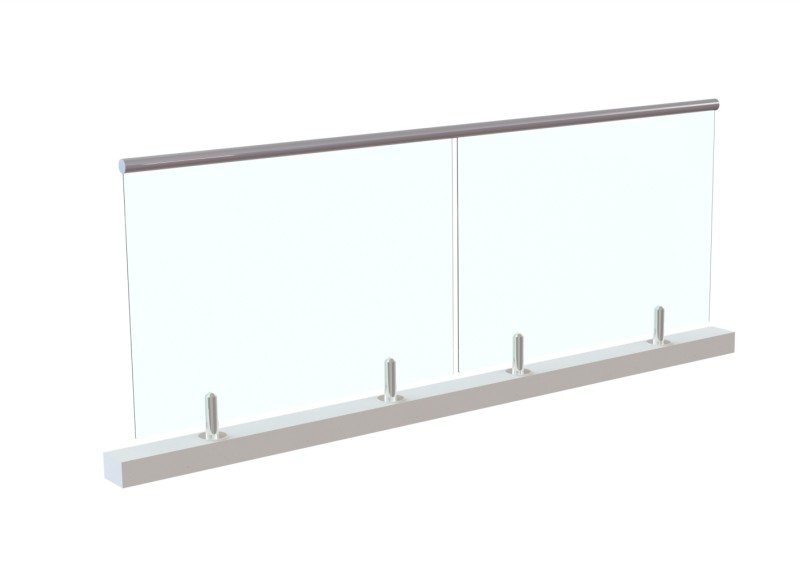

Seascape SD16-03

Mini posts core fixed into position with RRS handrail.

Enquire Today

*Important note: Quantities of each component will vary, depending on the specifications for the individual project. Please contact our team to discuss your specific requirements:

enquiries@axiomgroup.com.au

1300 652 336
Suite System Drawing
Suite System Drawing
Engineering Diagram
AutoCAD Drawing
This Suite Requires the following components

(5 components)

Handrail Wall Plates
Handrail Wall Plates
Code: RWT
Description

Aluminium wall plate. To be used with RJS & RRS handrail when fixing off to an existing wall.

Dimensions
Width: 65mm
Height: 6mm
Depth: 83mm
Download Section Drawings
PDF DXF
Notes

Fix bracket to handrail with 2 x FV12-50 Screws. 4 x FV12-50 screws supplied.

Used in the following Suites
Metropolis SD11-05, SD11-05, SD11-06, SD11-06, SD11-07, SD11-07, SD11-08, SD11-08, SD11-09, SD11-09, SD11-10, SD11-10, SD11-19, SD11-19, SD11-20, SD11-20
Panorama SD13-02, SD13-02, SD13-04, SD13-04, SD13-06, SD13-06, SD13-08, SD13-08, SD13-10, SD13-10, SD13-12, SD13-12, SD13-14, SD13-14, SD13-16, SD13-16
Paramount SD14-02, SD14-02, SD14-04, SD14-04, SD14-06, SD14-06, SD14-12, SD14-12
Seascape SD16-03, SD16-03, SD16-04, SD16-04
Screws & Fixings
Screws & Fixings
Code: FV10-50
Description

10 gauge x 50mm long stainless steel screws with a countersunk head.

Dimensions
Length: 50mm
Gauge: 10mm
Download Section Drawings
DXF
Handrail Connectors
Handrail Connectors
Code: RJS90
Description

300mmx300mm long 90degree aluminium corner handrail joiner. To be used with RRS handrail on corners.

Dimensions
Width: 51mm
Depth: 39mm
Download Section Drawings
DXF
Notes

Press fit into handrail, 150mm in each side

Used in the following Suites
Metropolis SD11-05, SD11-06, SD11-07, SD11-08, SD11-09, SD11-10, SD11-19, SD11-20
Panorama SD13-02, SD13-04, SD13-06, SD13-08, SD13-10, SD13-12, SD13-14, SD13-16
Paramount SD14-02, SD14-04, SD14-06, SD14-12
Seascape SD16-03, SD16-04
Mini Posts
Mini Posts
Code: AMPCD-R-P
Description

Stainless steel round mini post core fixed into floor. For use on pool fencing only. Polished finish.

Dimensions
Width: 170mm
Depth: 50mm
Download Section Drawings
PDF DXF
Notes

Corefixed into existing concrete. No fixings required.

Used in the following Suites
Seascape SD16-02, SD16-03, SD16-04, SD16-05
Mini Posts
Code: AMPCD-R-S
Description

Stainless steel round mini post core fixed into floor. For use on pool fencing only. Satin finish.

Dimensions
Width: 170mm
Depth: 50mm
Download Section Drawings
PDF DXF
Notes

Corefixed into existing concrete. No fixings required.

Used in the following Suites
Seascape SD16-02, SD16-03, SD16-04, SD16-05

Products you can trust. Contact a consultant for project specific certification.
