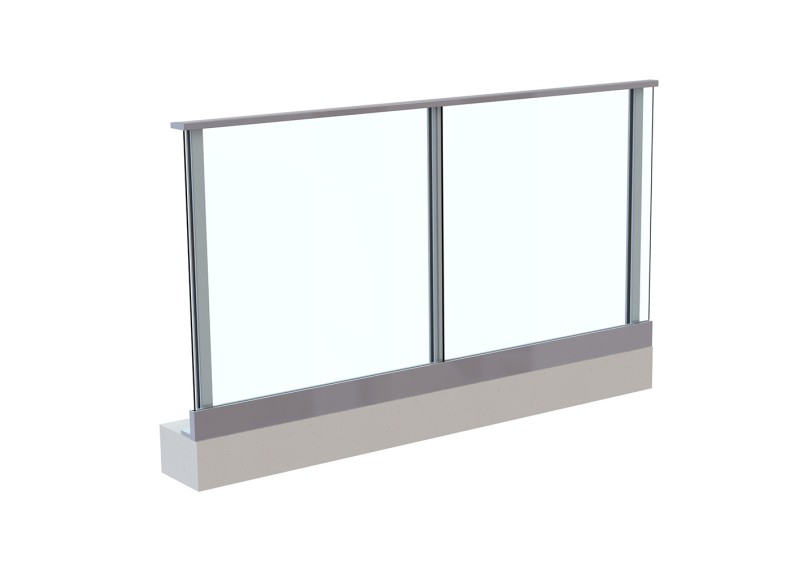

Rockley Suite - SD29-01

Code: SD29-01

Rockley SD29-01

This suite is designed to achieve front glazed glass with an invisible mullion post and a bottom rail which is ideal to cover the pod and pavers on the balcony.

Enquire Today

*Important note: Quantities of each component will vary, depending on the specifications for the individual project. Please contact our team to discuss your specific requirements:

enquiries@axiomgroup.com.au

1300 652 336
Suite System Drawing
Engineering Diagram
AutoCAD Drawing
This Suite Requires the following components

(15 components)

Screws & Fixings
Screws & Fixings
Code: FV1045
Description

.

Dimensions
Download Section Drawings
Notes

Used in the following Suites
Rockley SD29-01
Lynfield SD10-04, SD10-05
Guardian SD30-01, SD30-02, SD30-03, SD30-04
Screws & Fixings
Code: CSSM10130
Description

M10 X 130mm Capsule stud chisel Pt Ext Hex Drv GR316 S/S + Nut & washer

Dimensions
Length: 130mm
Download Section Drawings
DXF
Notes

Used in the following Suites
Alpha SD1-01, SD1-01, SD1-01, SD1-02, SD1-02, SD1-02, SD1-03, SD1-03, SD1-03, SD1-04, SD1-04, SD1-04, SD1-05, SD1-05, SD1-05, SD1-06, SD1-06, SD1-06, SD1-08, SD1-08, SD1-10, SD1-10, SD1-10, SD1-11, SD1-11, SD1-11
Defender SD6-01, SD6-01
Luna SD9-01, SD9-01, SD9-01, SD9-02, SD9-02, SD9-02, SD9-03, SD9-03
Lynfield SD10-01, SD10-02, SD10-03, SD10-04, SD10-05
Metropolis SD11-01, SD11-02, SD11-03, SD11-04, SD11-05, SD11-06, SD11-07, SD11-08, SD11-09, SD11-10, SD11-12, SD11-15, SD11-16, SD11-16, SD11-19, SD11-20, SD11-17
Neo SD12-01, SD12-01, SD12-02, SD12-02, SD12-03, SD12-03, SD12-04, SD12-04
Quest SD15-01, SD15-01, SD15-01, SD15-02, SD15-02, SD15-02, SD15-03, SD15-03, SD15-03, SD15-04, SD15-04, SD15-04
Spectra SD18-01, SD18-01, SD18-02, SD18-02, SD18-03, SD18-03, SD18-04, SD18-04
Vectro SD19-01, SD19-01, SD19-01, SD19-02, SD19-02, SD19-02, SD19-03, SD19-03, SD19-03, SD19-04, SD19-04, SD19-04, SD19-05, SD19-05, SD19-05, SD19-06, SD19-06, SD19-06, SD19-07, SD19-07, SD19-07, SD19-08, SD19-08, SD19-08, SD19-09, SD19-09, SD19-09, SD19-10, SD19-10, SD19-10, SD19-11, SD19-11, SD19-11, SD19-12, SD19-12, SD19-12, SD19-13, SD19-13, SD19-13, SD19-14, SD19-14, SD19-14, SD19-15, SD19-15, SD19-15, SD19-16, SD19-16, SD19-16, SD19-17, SD19-17, SD19-17, SD19-18, SD19-18, SD19-18, SD19-19, SD19-19, SD19-19, SD19-20, SD19-20, SD19-20, SD19-21, SD19-21, SD19-21, SD19-22, SD19-22, SD19-22, SD19-23, SD19-23, SD19-23
Vibe SD20-01, SD20-01, SD20-01, SD20-02, SD20-02, SD20-02, SD20-03, SD20-03, SD20-03, SD20-04, SD20-04, SD20-04
Vantage SD21-01, SD21-01
Eminence SD23-01, SD23-01, SD23-01, SD23-02, SD23-02, SD23-02, SD23-03, SD23-03, SD23-03, SD23-08, SD23-08, SD23-08, SD23-09, SD23-09, SD23-09, SD23-10, SD23-10, SD23-10, SD23-11, SD23-11, SD23-11, SD23-12, SD23-12, SD23-12, SD23-13, SD23-13, SD23-13, SD23-14, SD23-14, SD23-14, SD23-15, SD23-15, SD23-15, SD23-16, SD23-16, SD23-16, SD23-17, SD23-17, SD23-17, SD23-18, SD23-18, SD23-18, SD23-19, SD23-19, SD23-19
Eminence-Ps SD23-01(PS), SD23-01(PS), SD23-01(PS), SD23-02(PS), SD23-02(PS), SD23-02(PS), SD23-03(PS), SD23-03(PS), SD23-03(PS), SD23-08(PS), SD23-08(PS), SD23-08(PS), SD23-09(PS), SD23-09(PS), SD23-09(PS), SD23-10(PS), SD23-10(PS), SD23-10(PS), SD23-11(PS), SD23-11(PS), SD23-11(PS), SD23-12(PS), SD23-12(PS), SD23-12(PS), SD23-13(PS), SD23-13(PS), SD23-13(PS), SD23-14(PS), SD23-14(PS), SD23-14(PS), SD23-15(PS), SD23-15(PS), SD23-15(PS), SD23-16(PS), SD23-16(PS), SD23-16(PS), SD23-17(PS), SD23-17(PS), SD23-17(PS), SD23-18(PS), SD23-18(PS), SD23-18(PS), SD23-19(PS), SD23-19(PS), SD23-19(PS)
Rockley SD29-01
Guardian SD30-01, SD30-02
Screws & Fixings
Code: BRSCS
Description

25mm thread length x 10 gauge, with a 8 gauge Pan head square drive, Stainless steel screw.

Dimensions
Width: 25mm
Gauge: 10mm
Download Section Drawings
PDF DXF
Notes

Used in the following Suites
Alpha SD1-01, SD1-02, SD1-03, SD1-04, SD1-05, SD1-06, SD1-08, SD1-10, SD1-11
Classic SD2-01, SD2-02
Heritage SD3-01
Settler SD4-01, SD4-02
Vista SD5-01, SD5-02, SD5-25
Defender SD6-01
Linc SD7-01
Luna SD9-01, SD9-02, SD9-03
Lynfield SD10-01, SD10-02, SD10-03, SD10-04, SD10-05
Neo SD12-01, SD12-01, SD12-02, SD12-02, SD12-03, SD12-03, SD12-04, SD12-04
Quest SD15-01, SD15-01, SD15-02, SD15-02, SD15-03, SD15-03, SD15-04, SD15-04
Infinity SD17-01, SD17-02, SD17-03, SD17-04, SD17-05, SD17-06, SD17-07, SD17-08, SD17-09, SD17-10, SD17-11, SD17-12, SD17-13
Spectra SD18-01, SD18-01, SD18-02, SD18-02, SD18-03, SD18-03, SD18-04, SD18-04
Vectro SD19-03, SD19-04, SD19-05, SD19-06, SD19-07, SD19-08, SD19-08, SD19-09, SD19-09, SD19-10, SD19-10, SD19-11, SD19-11, SD19-12, SD19-13, SD19-13, SD19-14, SD19-14, SD19-15, SD19-15, SD19-16, SD19-16, SD19-17, SD19-18, SD19-18, SD19-19, SD19-19, SD19-20, SD19-20, SD19-21, SD19-21, SD19-23
Vibe SD20-01, SD20-01, SD20-02, SD20-02, SD20-03, SD20-03, SD20-04, SD20-04
Vantage SD21-01, SD21-01
Sapphire SD22-01, SD22-01
Eminence SD23-01, SD23-01, SD23-02, SD23-02, SD23-03, SD23-03, SD23-04, SD23-08, SD23-08, SD23-08, SD23-09, SD23-09, SD23-09, SD23-10, SD23-10, SD23-10, SD23-11, SD23-11, SD23-11, SD23-12, SD23-12, SD23-12, SD23-13, SD23-13, SD23-13, SD23-14, SD23-14, SD23-14, SD23-15, SD23-15, SD23-15, SD23-16, SD23-16, SD23-16, SD23-17, SD23-17, SD23-17, SD23-18, SD23-18, SD23-18, SD23-19, SD23-19, SD23-19, SD23-5
Eminence-Ps SD23-01(PS), SD23-01(PS), SD23-02(PS), SD23-02(PS), SD23-03(PS), SD23-03(PS), SD23-04(PS), SD23-08(PS), SD23-08(PS), SD23-08(PS), SD23-09(PS), SD23-09(PS), SD23-09(PS), SD23-10(PS), SD23-10(PS), SD23-10(PS), SD23-11(PS), SD23-11(PS), SD23-11(PS), SD23-12(PS), SD23-12(PS), SD23-12(PS), SD23-13(PS), SD23-13(PS), SD23-13(PS), SD23-14(PS), SD23-14(PS), SD23-14(PS), SD23-15(PS), SD23-15(PS), SD23-15(PS), SD23-16(PS), SD23-16(PS), SD23-16(PS), SD23-17(PS), SD23-17(PS), SD23-17(PS), SD23-18(PS), SD23-18(PS), SD23-18(PS), SD23-19(PS), SD23-19(PS), SD23-19(PS)
Rockley SD29-01
Guardian SD30-01, SD30-02
Posts
Posts
Code: APR
Description

Aluminium glazing post with glazing recesses on both sides. Designed to take 10mm and 12mm thick glass.

Dimensions
Width: 50mm
Depth: 50mm
Download Section Drawings
PDF DXF
Notes

(Glaxing rubber must be ordered seperatly)

Used in the following Suites
Rockley SD29-01
Infills
Infills
Code: AIR
Description

Aluminium post infill. Designed to snap into glazing pocket to close off open ends. Can be used on all posts

Dimensions
Width: 21.5mm
Depth: 9.6mm
Download Section Drawings
PDF DXF
Notes

Used in the following Suites
Rockley SD29-01
Guardian SD30-02, SD30-03, SD30-04, SD30-01
Handrails
Handrails
Code: AFGHR
Description

Aluminium curved handrail. To be used with AFGIR undercap.

Dimensions
Width: 103mm
Depth: 28mm
Download Section Drawings
PDF DXF
Notes

Snaps in place over undercap.

Used in the following Suites
Luna SD9-01, SD9-02, SD9-03
Rockley SD29-01
Undercaps
Undercaps
Code: AFGIR
Description

Aluminium Undercap. Screw fixed to post. To be used with AFGHR handrail.

Dimensions
Width: 88.5mm
Depth: 14mm
Download Section Drawings
PDF DXF
Notes

Fixed to posts with 4 x BRSCS screws. Fixings must be ordered seperatly.

Used in the following Suites
Luna SD9-01, SD9-02, SD9-03
Rockley SD29-01
Glazing Gaskets
Glazing Gaskets
Code: SRE
Description

Glazing rubber for fitting on external side of balustrade. Use inconjunction with SWE** glazing on 12mm glass.

Dimensions
Download Section Drawings
PDF DXF
Notes

Used in the following Suites
Rockley SD29-01
Guardian SD30-01, SD30-02, SD30-03, SD30-04
Glazing Gaskets
Code: SWE55
Description

Glazing rubber for fitting on internal side of balustrade. Use inconjunction with SRE glazing on 10mm glass.

Dimensions
Download Section Drawings
PDF DXF
Notes

Used in the following Suites
Rockley SD29-01
Guardian SD30-01, SD30-03
Glazing Gaskets
Code: ADST
Description

Roll of glazing tape

Dimensions
Download Section Drawings
DXF
Notes

Used in the following Suites
Paramount SD14-01, SD14-02, SD14-03, SD14-04, SD14-05, SD14-06, SD14-11, SD14-12
Rockley SD29-01
Glazing Gaskets
Code: SWE70
Description

Glazing rubber for fitting glass

Dimensions
Download Section Drawings
DXF
Notes

Used in the following Suites
Vectro SD19-22
Rockley SD29-01
Baseplates
Baseplates
Code: BPR
Description

Aluminium baseplate for use with APR posts and BMC Channel Combination into concrete.

Dimensions
Width: 140mm
Height: 16mm
Depth: 90mm
Download Section Drawings
PDF DXF
Notes

Used in the following Suites
Rockley SD29-01
Base mount channels
Base mount channels
Code: BMC-PP
Description

Aluminium Base Mount Channel Post Plate to suit 10mm Thick Glass.

Dimensions
Width: 34mm
Depth: 120mm
Download Section Drawings
PDF DXF
Notes

Used in the following Suites
Rockley SD29-01
Base mount channels
Code: BMC-CP
Description

Aluminium Base Mount Channel Cover Plate to suit 10mm Thick Glass.

Dimensions
Width: 9mm
Depth: 119mm
Download Section Drawings
DXF
Notes

Used in the following Suites
Rockley SD29-01
Channel End Caps
Channel End Caps
Code: BMC-EC
Description

Aluminium end cap for the BMC Channel

Dimensions
Width: 120mm
Height: 27mm
Depth: 6mm
Download Section Drawings
PDF DXF
Notes

Used in the following Suites
Rockley SD29-01
