Eminence-Ps SD23-09(PS)

Code: SD23-09(PS)

Back to Suite
Eminence-Ps Suite - SD23-09(PS)

Code: SD23-09(PS)

Eminence-Ps SD23-09(PS)

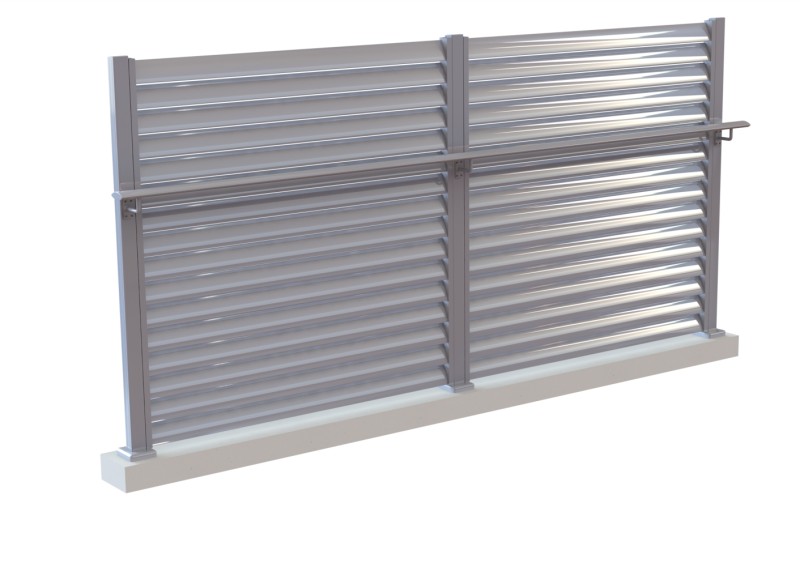

APE post, BERP base plate, 88mm wide elliptical louvre blades with ART handrail on DWH brackets.

Enquire Today

*Important note: Quantities of each component will vary, depending on the specifications for the individual project. Please contact our team to discuss your specific requirements:

enquiries@axiomgroup.com.au

1300 652 336
Suite System Drawing
Engineering Diagram
AutoCAD Drawing
This Suite Requires the following components

(18 components)

Baseplates
Baseplates
Code: BERP
Description

Aluminium baseplate for use with APE post into concrete.

Dimensions
Width: 115mm
Height: 12mm
Depth: 105mm
Download Section Drawings
PDF DXF
Notes

10 x FVHT10-50 stainless steel screws must used to connect the post to this baseplate. 2 x FV10-19 for fixing AIA infil in place. Fixings must be ordered seperatly.

Used in the following Suites
Vectro SD19-01, SD19-02, SD19-03, SD19-04, SD19-05, SD19-06, SD19-07, SD19-08, SD19-09, SD19-10, SD19-11, SD19-12, SD19-13, SD19-14, SD19-15, SD19-16, SD19-17, SD19-18, SD19-19, SD19-20, SD19-21, SD19-22, SD19-23
Eminence SD23-01, SD23-02, SD23-03, SD23-08, SD23-09, SD23-10, SD23-11, SD23-12, SD23-13, SD23-14, SD23-15, SD23-16, SD23-17, SD23-18, SD23-19
Eminence-Ps SD23-01(PS), SD23-02(PS), SD23-03(PS), SD23-08(PS), SD23-09(PS), SD23-10(PS), SD23-11(PS), SD23-12(PS), SD23-13(PS), SD23-14(PS), SD23-15(PS), SD23-16(PS), SD23-17(PS), SD23-18(PS), SD23-19(PS)
Screws & Fixings
Screws & Fixings
Code: FVHT10-50.T1
Description

Self tapping Stainless steel 10g x 50mm sqaure Drive High tensile screw

Dimensions
Length: 50mm
Gauge: 10mm
Download Section Drawings
DXF
Screws & Fixings
Code: CSSM10130
Description

M10 X 130mm Capsule stud chisel Pt Ext Hex Drv GR316 S/S + Nut & washer

Dimensions
Length: 130mm
Download Section Drawings
DXF
Notes

Used in the following Suites
Alpha SD1-01, SD1-01, SD1-01, SD1-02, SD1-02, SD1-02, SD1-03, SD1-03, SD1-03, SD1-04, SD1-04, SD1-04, SD1-05, SD1-05, SD1-05, SD1-06, SD1-06, SD1-06, SD1-08, SD1-08, SD1-10, SD1-10, SD1-10, SD1-11, SD1-11, SD1-11
Defender SD6-01, SD6-01
Luna SD9-01, SD9-01, SD9-01, SD9-02, SD9-02, SD9-02, SD9-03, SD9-03
Lynfield SD10-01, SD10-02, SD10-03, SD10-04, SD10-05
Metropolis SD11-01, SD11-02, SD11-03, SD11-04, SD11-05, SD11-06, SD11-07, SD11-08, SD11-09, SD11-10, SD11-12, SD11-15, SD11-16, SD11-16, SD11-19, SD11-20, SD11-17
Neo SD12-01, SD12-01, SD12-02, SD12-02, SD12-03, SD12-03, SD12-04, SD12-04
Quest SD15-01, SD15-01, SD15-01, SD15-02, SD15-02, SD15-02, SD15-03, SD15-03, SD15-03, SD15-04, SD15-04, SD15-04
Spectra SD18-01, SD18-01, SD18-02, SD18-02, SD18-03, SD18-03, SD18-04, SD18-04
Vectro SD19-01, SD19-01, SD19-01, SD19-02, SD19-02, SD19-02, SD19-03, SD19-03, SD19-03, SD19-04, SD19-04, SD19-04, SD19-05, SD19-05, SD19-05, SD19-06, SD19-06, SD19-06, SD19-07, SD19-07, SD19-07, SD19-08, SD19-08, SD19-08, SD19-09, SD19-09, SD19-09, SD19-10, SD19-10, SD19-10, SD19-11, SD19-11, SD19-11, SD19-12, SD19-12, SD19-12, SD19-13, SD19-13, SD19-13, SD19-14, SD19-14, SD19-14, SD19-15, SD19-15, SD19-15, SD19-16, SD19-16, SD19-16, SD19-17, SD19-17, SD19-17, SD19-18, SD19-18, SD19-18, SD19-19, SD19-19, SD19-19, SD19-20, SD19-20, SD19-20, SD19-21, SD19-21, SD19-21, SD19-22, SD19-22, SD19-22, SD19-23, SD19-23, SD19-23
Vibe SD20-01, SD20-01, SD20-01, SD20-02, SD20-02, SD20-02, SD20-03, SD20-03, SD20-03, SD20-04, SD20-04, SD20-04
Vantage SD21-01, SD21-01
Eminence SD23-01, SD23-01, SD23-01, SD23-02, SD23-02, SD23-02, SD23-03, SD23-03, SD23-03, SD23-08, SD23-08, SD23-08, SD23-09, SD23-09, SD23-09, SD23-10, SD23-10, SD23-10, SD23-11, SD23-11, SD23-11, SD23-12, SD23-12, SD23-12, SD23-13, SD23-13, SD23-13, SD23-14, SD23-14, SD23-14, SD23-15, SD23-15, SD23-15, SD23-16, SD23-16, SD23-16, SD23-17, SD23-17, SD23-17, SD23-18, SD23-18, SD23-18, SD23-19, SD23-19, SD23-19
Eminence-Ps SD23-01(PS), SD23-01(PS), SD23-01(PS), SD23-02(PS), SD23-02(PS), SD23-02(PS), SD23-03(PS), SD23-03(PS), SD23-03(PS), SD23-08(PS), SD23-08(PS), SD23-08(PS), SD23-09(PS), SD23-09(PS), SD23-09(PS), SD23-10(PS), SD23-10(PS), SD23-10(PS), SD23-11(PS), SD23-11(PS), SD23-11(PS), SD23-12(PS), SD23-12(PS), SD23-12(PS), SD23-13(PS), SD23-13(PS), SD23-13(PS), SD23-14(PS), SD23-14(PS), SD23-14(PS), SD23-15(PS), SD23-15(PS), SD23-15(PS), SD23-16(PS), SD23-16(PS), SD23-16(PS), SD23-17(PS), SD23-17(PS), SD23-17(PS), SD23-18(PS), SD23-18(PS), SD23-18(PS), SD23-19(PS), SD23-19(PS), SD23-19(PS)
Rockley SD29-01
Guardian SD30-01, SD30-02
Screws & Fixings
Code: FV10-45
Description

50mm long x 10 gauge, Quad thread, square drive, countersunk head, Stainless steel screw.

Dimensions
Width: 50mm
Gauge: 10mm
Download Section Drawings
PDF DXF
Screws & Fixings
Code: BRSCS
Description

25mm thread length x 10 gauge, with a 8 gauge Pan head square drive, Stainless steel screw.

Dimensions
Width: 25mm
Gauge: 10mm
Download Section Drawings
PDF DXF
Notes

Used in the following Suites
Alpha SD1-01, SD1-02, SD1-03, SD1-04, SD1-05, SD1-06, SD1-08, SD1-10, SD1-11
Classic SD2-01, SD2-02
Heritage SD3-01
Settler SD4-01, SD4-02
Vista SD5-01, SD5-02, SD5-25
Defender SD6-01
Linc SD7-01
Luna SD9-01, SD9-02, SD9-03
Lynfield SD10-01, SD10-02, SD10-03, SD10-04, SD10-05
Neo SD12-01, SD12-01, SD12-02, SD12-02, SD12-03, SD12-03, SD12-04, SD12-04
Quest SD15-01, SD15-01, SD15-02, SD15-02, SD15-03, SD15-03, SD15-04, SD15-04
Infinity SD17-01, SD17-02, SD17-03, SD17-04, SD17-05, SD17-06, SD17-07, SD17-08, SD17-09, SD17-10, SD17-11, SD17-12, SD17-13
Spectra SD18-01, SD18-01, SD18-02, SD18-02, SD18-03, SD18-03, SD18-04, SD18-04
Vectro SD19-03, SD19-04, SD19-05, SD19-06, SD19-07, SD19-08, SD19-08, SD19-09, SD19-09, SD19-10, SD19-10, SD19-11, SD19-11, SD19-12, SD19-13, SD19-13, SD19-14, SD19-14, SD19-15, SD19-15, SD19-16, SD19-16, SD19-17, SD19-18, SD19-18, SD19-19, SD19-19, SD19-20, SD19-20, SD19-21, SD19-21, SD19-23
Vibe SD20-01, SD20-01, SD20-02, SD20-02, SD20-03, SD20-03, SD20-04, SD20-04
Vantage SD21-01, SD21-01
Sapphire SD22-01, SD22-01
Eminence SD23-01, SD23-01, SD23-02, SD23-02, SD23-03, SD23-03, SD23-04, SD23-08, SD23-08, SD23-08, SD23-09, SD23-09, SD23-09, SD23-10, SD23-10, SD23-10, SD23-11, SD23-11, SD23-11, SD23-12, SD23-12, SD23-12, SD23-13, SD23-13, SD23-13, SD23-14, SD23-14, SD23-14, SD23-15, SD23-15, SD23-15, SD23-16, SD23-16, SD23-16, SD23-17, SD23-17, SD23-17, SD23-18, SD23-18, SD23-18, SD23-19, SD23-19, SD23-19, SD23-5
Eminence-Ps SD23-01(PS), SD23-01(PS), SD23-02(PS), SD23-02(PS), SD23-03(PS), SD23-03(PS), SD23-04(PS), SD23-08(PS), SD23-08(PS), SD23-08(PS), SD23-09(PS), SD23-09(PS), SD23-09(PS), SD23-10(PS), SD23-10(PS), SD23-10(PS), SD23-11(PS), SD23-11(PS), SD23-11(PS), SD23-12(PS), SD23-12(PS), SD23-12(PS), SD23-13(PS), SD23-13(PS), SD23-13(PS), SD23-14(PS), SD23-14(PS), SD23-14(PS), SD23-15(PS), SD23-15(PS), SD23-15(PS), SD23-16(PS), SD23-16(PS), SD23-16(PS), SD23-17(PS), SD23-17(PS), SD23-17(PS), SD23-18(PS), SD23-18(PS), SD23-18(PS), SD23-19(PS), SD23-19(PS), SD23-19(PS)
Rockley SD29-01
Guardian SD30-01, SD30-02
Screws & Fixings
Code: MPS
Description

14G x 20mm long Stainless steel screw.

Dimensions
Length: 20mm
Gauge: 14mm
Download Section Drawings
DXF
Screws & Fixings
Code: HBPS
Description

10 gauge x 25mm long, Philips drive, countersink head, Stainless steel screws.

Dimensions
Length: 25mm
Gauge: 10mm
Download Section Drawings
DXF
Baseplates covers
Baseplates covers
Code: BPC6050
Description

Aluminium baseplate cover for us with BERP Baseplate.

Dimensions
Width: 125mm
Height: 25mm
Depth: 110mm
Download Section Drawings
PDF DXF
Posts
Posts
Code: APE
Description

Aluminium glazing post with glazing recesses on both sides. Designed to take 10mm and 12mm thick glass.

Dimensions
Width: 60mm
Depth: 50mm
Download Section Drawings
PDF DXF
Post Top Caps
Post Top Caps
Code: ACPE
Description

Aluminium cast top cap with curved top face, to be used when glass finishes inline with top of post. To be used with APE post.

Dimensions
Width: 60mm
Height: 24mm
Depth: 50mm
Download Section Drawings
PDF DXF
Handrail Wall Plates
Handrail Wall Plates
Code: AWT
Description

Aluminium wall plate. To be used with ART handrail when fixing off to an existing wall.

Dimensions
Width: 88mm
Height: 6mm
Depth: 50mm
Download Section Drawings
PDF DXF
Notes

Fix bracket to handrail with 2 x FV10-45 Screws. 4 x FV10-45 screws supplied.

Used in the following Suites
Neo SD12-01, SD12-02
Quest SD15-01, SD15-02
Spectra SD18-01, SD18-02
Vectro SD19-03, SD19-04, SD19-08, SD19-09, SD19-13, SD19-14, SD19-18, SD19-19
Vibe SD20-01, SD20-02
Vantage SD21-01
Sapphire SD22-01
Eminence SD23-03, SD23-08, SD23-09, SD23-12, SD23-13, SD23-16, SD23-17
Eminence-Ps SD23-03(PS), SD23-08(PS), SD23-09(PS), SD23-12(PS), SD23-13(PS), SD23-16(PS), SD23-17(PS)
Handrail Brackets
Handrail Brackets
Code: DWH
Description

Handrail bracket, drilled and tapped ends. Part of ASSHH1 and ASHH2 Assmbly.

Dimensions
Width: 84mm
Depth: 58mm
Diameter: 12mm
Download Section Drawings
PDF DXF
Notes

Fix bracket to patch fitting and handrail plate. 1 x M5 Screw for fittng to handrail bracket supplied.

Used in the following Suites
Vantage SD21-01
Eminence SD23-01, SD23-02, SD23-03, SD23-04, SD23-08, SD23-09, SD23-10, SD23-11, SD23-12, SD23-13, SD23-14, SD23-15, SD23-16, SD23-17, SD23-18, SD23-19, SD23-5
Eminence-Ps SD23-01(PS), SD23-02(PS), SD23-03(PS), SD23-04(PS), SD23-08(PS), SD23-09(PS), SD23-10(PS), SD23-11(PS), SD23-12(PS), SD23-13(PS), SD23-14(PS), SD23-15(PS), SD23-16(PS), SD23-17(PS), SD23-18(PS), SD23-19(PS)
Handrail Brackets
Code: DWHFP
Description

Flat aluminium handrail plate. To suit square handrails.

Dimensions
Width: 20mm
Height: 3mm
Depth: 55mm
Download Section Drawings
PDF DXF
Handrail Brackets
Code: DWHMP
Description

flat plate for DWH bracket to fix to square posts and walls.

Dimensions
Width: 38mm
Height: 6mm
Depth: 70mm
Download Section Drawings
PDF DXF
Slat & Louvre Frames
Slat & Louvre Frames
Code: AC-5025
Description

Aluminium channel frame section

Dimensions
Width: 50mm
Height: 25mm
Download Section Drawings
PDF DXF
Notes

Fixings must be ordered seperatly

Used in the following Suites
Infinity SD17-01, SD17-02, SD17-04, SD17-05, SD17-06, SD17-08, SD17-09, SD17-10, SD17-11, SD17-12, SD17-13
Vectro SD19-07, SD19-08, SD19-09, SD19-10, SD19-11, SD19-23
Sapphire SD22-01
Eminence SD23-08, SD23-09, SD23-10, SD23-11
Eminence-Ps SD23-08(PS), SD23-09(PS), SD23-10(PS), SD23-11(PS)
Slat & Louvre Frames
Code: AI-5025
Description

Aluminium infill for AC5025

Dimensions
Width: 46.9mm
Depth: 7mm
Download Section Drawings
PDF DXF
Notes

Fixings must be ordered seperatly

Used in the following Suites
Infinity SD17-01, SD17-02, SD17-04, SD17-05, SD17-06, SD17-08, SD17-09, SD17-10, SD17-11, SD17-12, SD17-13
Vectro SD19-07, SD19-08, SD19-09, SD19-10, SD19-11, SD19-23
Sapphire SD22-01
Eminence SD23-08, SD23-09, SD23-10, SD23-11
Eminence-Ps SD23-08(PS), SD23-09(PS), SD23-10(PS), SD23-11(PS)
Slat & louvre end caps
Slat & louvre end caps
Code: 5025CAP
Description

End cap for 50x25 Louvre framing

Dimensions
Width: 50mm
Height: 25mm
Depth: 3mm
Download Section Drawings
DXF
Notes

Used in the following Suites
Infinity SD17-02, SD17-04, SD17-06, SD17-08, SD17-10, SD17-13
Vectro SD19-07, SD19-23
Sapphire SD22-01
Eminence SD23-08, SD23-09, SD23-10, SD23-11
Eminence-Ps SD23-08(PS), SD23-09(PS), SD23-10(PS), SD23-11(PS)
Slats & Louvres
Slats & Louvres
Code: AL-88
Description

Aluminium eliptical louvre blade.

Dimensions
Width: 88mm
Height: 11.5mm
Download Section Drawings
PDF DXF
Notes

Fixings must be ordered seperatly

Used in the following Suites
Vista SD5-25
Infinity SD17-09, SD17-10, SD17-11, SD17-12, SD17-13
Vectro SD19-07, SD19-08, SD19-09, SD19-10, SD19-11, SD19-23
Sapphire SD22-01
Eminence SD23-08, SD23-09, SD23-10, SD23-11
Eminence-Ps SD23-08(PS), SD23-09(PS), SD23-10(PS), SD23-11(PS)
