Suite system Detail

Infinity SD17-08

Code: SD17-08

Back to Suite

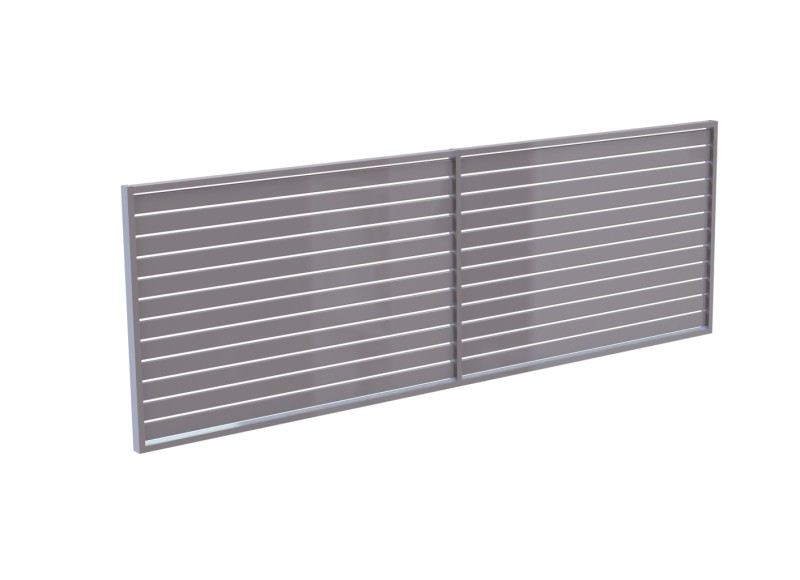

Infinity Suite - SD17-08

Code: SD17-08

Infinity SD17-08

Screen with 70mm wide slats and 50 x 25 frame. Product code: ASS-4S-502570-finish type.

Enquire Today

*Important note: Quantities of each component will vary, depending on the specifications for the individual project. Please contact our team to discuss your specific requirements:

enquiries@axiomgroup.com.au

1300 652 336
Suite System Drawing
Engineering Diagram
AutoCAD Drawing
This Suite Requires the following components

(7 components)

Slat & Louvre Frames
Slat & Louvre Frames
Code: AF-5025
Description

Aluminium rectangular frame section

Dimensions
Width: 50mm
Height: 25mm
Download Section Drawings
PDF DXF
Notes

Fixings must be ordered seperatly

Used in the following Suites
Infinity SD17-01, SD17-04, SD17-05, SD17-08, SD17-09, SD17-10, SD17-13
Slat & Louvre Frames
Code: AC-5025
Description

Aluminium channel frame section

Dimensions
Width: 50mm
Height: 25mm
Download Section Drawings
PDF DXF
Notes

Fixings must be ordered seperatly

Used in the following Suites
Infinity SD17-01, SD17-02, SD17-04, SD17-05, SD17-06, SD17-08, SD17-09, SD17-10, SD17-11, SD17-12, SD17-13
Vectro SD19-07, SD19-08, SD19-09, SD19-10, SD19-11, SD19-23
Sapphire SD22-01
Eminence SD23-08, SD23-09, SD23-10, SD23-11
Eminence-Ps SD23-08(PS), SD23-09(PS), SD23-10(PS), SD23-11(PS)
Slat & Louvre Frames
Code: AI-5025
Description

Aluminium infill for AC5025

Dimensions
Width: 46.9mm
Depth: 7mm
Download Section Drawings
PDF DXF
Notes

Fixings must be ordered seperatly

Used in the following Suites
Infinity SD17-01, SD17-02, SD17-04, SD17-05, SD17-06, SD17-08, SD17-09, SD17-10, SD17-11, SD17-12, SD17-13
Vectro SD19-07, SD19-08, SD19-09, SD19-10, SD19-11, SD19-23
Sapphire SD22-01
Eminence SD23-08, SD23-09, SD23-10, SD23-11
Eminence-Ps SD23-08(PS), SD23-09(PS), SD23-10(PS), SD23-11(PS)
Slat & louvre end caps
Slat & louvre end caps
Code: 5025CAP
Description

End cap for 50x25 Louvre framing

Dimensions
Width: 50mm
Height: 25mm
Depth: 3mm
Download Section Drawings
DXF
Notes

Used in the following Suites
Infinity SD17-02, SD17-04, SD17-06, SD17-08, SD17-10, SD17-13
Vectro SD19-07, SD19-23
Sapphire SD22-01
Eminence SD23-08, SD23-09, SD23-10, SD23-11
Eminence-Ps SD23-08(PS), SD23-09(PS), SD23-10(PS), SD23-11(PS)
Slats & Louvres
Slats & Louvres
Code: AS-70
Description

Aluminium slat.

Dimensions
Width: 70mm
Height: 10mm
Download Section Drawings
PDF DXF
Notes

Fixings must be ordered seperatly

Used in the following Suites
Infinity SD17-06, SD17-07, SD17-08
Vectro SD19-17, SD19-18, SD19-19, SD19-20, SD19-21
Eminence SD23-16, SD23-17, SD23-18, SD23-19
Eminence-Ps SD23-16(PS), SD23-17(PS), SD23-18(PS), SD23-19(PS)
Screws & Fixings
Screws & Fixings
Code: FV10-45
Description

50mm long x 10 gauge, Quad thread, square drive, countersunk head, Stainless steel screw.

Dimensions
Width: 50mm
Gauge: 10mm
Download Section Drawings
PDF DXF
Screws & Fixings
Code: BRSCS
Description

25mm thread length x 10 gauge, with a 8 gauge Pan head square drive, Stainless steel screw.

Dimensions
Width: 25mm
Gauge: 10mm
Download Section Drawings
PDF DXF
Notes

Used in the following Suites
Alpha SD1-01, SD1-02, SD1-03, SD1-04, SD1-05, SD1-06, SD1-08, SD1-10, SD1-11
Classic SD2-01, SD2-02
Heritage SD3-01
Settler SD4-01, SD4-02
Vista SD5-01, SD5-02, SD5-25
Defender SD6-01
Linc SD7-01
Luna SD9-01, SD9-02, SD9-03
Lynfield SD10-01, SD10-02, SD10-03, SD10-04, SD10-05
Neo SD12-01, SD12-01, SD12-02, SD12-02, SD12-03, SD12-03, SD12-04, SD12-04
Quest SD15-01, SD15-01, SD15-02, SD15-02, SD15-03, SD15-03, SD15-04, SD15-04
Infinity SD17-01, SD17-02, SD17-03, SD17-04, SD17-05, SD17-06, SD17-07, SD17-08, SD17-09, SD17-10, SD17-11, SD17-12, SD17-13
Spectra SD18-01, SD18-01, SD18-02, SD18-02, SD18-03, SD18-03, SD18-04, SD18-04
Vectro SD19-03, SD19-04, SD19-05, SD19-06, SD19-07, SD19-08, SD19-08, SD19-09, SD19-09, SD19-10, SD19-10, SD19-11, SD19-11, SD19-12, SD19-13, SD19-13, SD19-14, SD19-14, SD19-15, SD19-15, SD19-16, SD19-16, SD19-17, SD19-18, SD19-18, SD19-19, SD19-19, SD19-20, SD19-20, SD19-21, SD19-21, SD19-23
Vibe SD20-01, SD20-01, SD20-02, SD20-02, SD20-03, SD20-03, SD20-04, SD20-04
Vantage SD21-01, SD21-01
Sapphire SD22-01, SD22-01
Eminence SD23-01, SD23-01, SD23-02, SD23-02, SD23-03, SD23-03, SD23-04, SD23-08, SD23-08, SD23-08, SD23-09, SD23-09, SD23-09, SD23-10, SD23-10, SD23-10, SD23-11, SD23-11, SD23-11, SD23-12, SD23-12, SD23-12, SD23-13, SD23-13, SD23-13, SD23-14, SD23-14, SD23-14, SD23-15, SD23-15, SD23-15, SD23-16, SD23-16, SD23-16, SD23-17, SD23-17, SD23-17, SD23-18, SD23-18, SD23-18, SD23-19, SD23-19, SD23-19, SD23-5
Eminence-Ps SD23-01(PS), SD23-01(PS), SD23-02(PS), SD23-02(PS), SD23-03(PS), SD23-03(PS), SD23-04(PS), SD23-08(PS), SD23-08(PS), SD23-08(PS), SD23-09(PS), SD23-09(PS), SD23-09(PS), SD23-10(PS), SD23-10(PS), SD23-10(PS), SD23-11(PS), SD23-11(PS), SD23-11(PS), SD23-12(PS), SD23-12(PS), SD23-12(PS), SD23-13(PS), SD23-13(PS), SD23-13(PS), SD23-14(PS), SD23-14(PS), SD23-14(PS), SD23-15(PS), SD23-15(PS), SD23-15(PS), SD23-16(PS), SD23-16(PS), SD23-16(PS), SD23-17(PS), SD23-17(PS), SD23-17(PS), SD23-18(PS), SD23-18(PS), SD23-18(PS), SD23-19(PS), SD23-19(PS), SD23-19(PS)
Rockley SD29-01
Guardian SD30-01, SD30-02
