Code: SD30-03
Guardian SD30-03

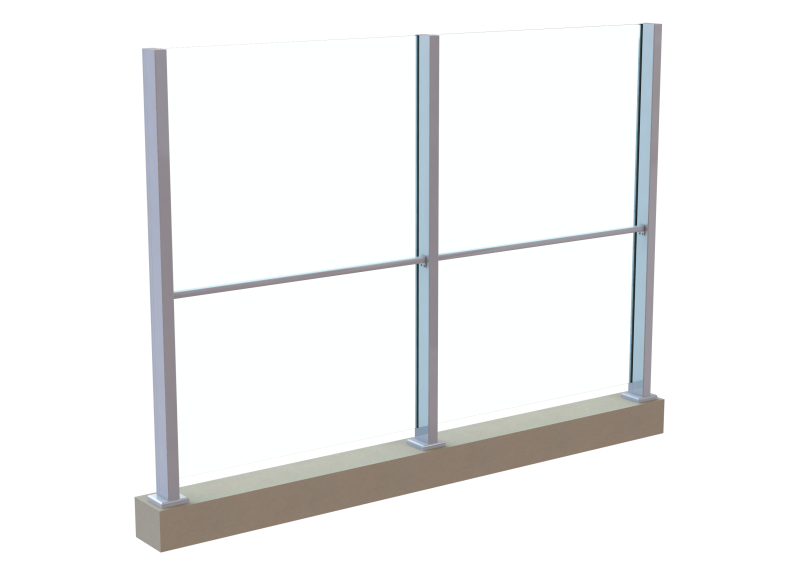

3KN post and 3KN baseplate with ARN handrail.
Enquire Today
*Important note: Quantities of each component will vary, depending on the specifications for the individual project. Please contact our team to discuss your specific requirements:
enquiries@axiomgroup.com.au 1300 652 336This Suite Requires the following components
Baseplates
Baseplates
Code: 3KNBP
Description
Aluminium baseplate for use with 3KNP post into concrete.
Dimensions
| Width: | 135mm |
| Height: | 16mm |
| Depth: | 135mm |
Notes
14 x FV10-45 stainless steel screws must used to connect the post to this baseplate. 2 x FV10-19 for fixing AIA infil in place. Fixings must be ordered seperatly.
Baseplates
Code: BPAFGIC
Description
Aluminium Internal corner baseplate for use with AFGEC post into concrete.
Dimensions
| Width: | 150mm |
| Height: | 12mm |
| Depth: | 110mm |
Notes
9 x FV10-45 stainless steel screws must used to connect the post to this baseplate. 2 x FV10-19 for fixing AIA infil in place. Fixings must be ordered seperatly.
Baseplates
Code: BPAFGEC
Description
Aluminium External corner baseplate for use with AFGEC post into concrete.
Dimensions
| Width: | 155mm |
| Height: | 12mm |
| Depth: | 124mm |
Notes
10 x FV10-45 stainless steel screws must used to connect the post to this baseplate. 2 x FV10-19 for fixing AIA infil in place. Fixings must be ordered seperatly.
Baseplates covers
Baseplates covers
Code: 3KNBPC
Description
Aluminium baseplate cover for us with 3KNB Baseplate.
Dimensions
| Width: | 145mm |
| Height: | 35mm |
| Depth: | 145mm |
Notes
Baseplates covers
Code: BPCFGIC
Description
Aluminium baseplate cover for us with BPAFGIC Baseplate.
Dimensions
| Width: | 155mm |
| Height: | 25mm |
| Depth: | 115mm |
Notes
Baseplates covers
Code: BPCFGEC
Description
Aluminium baseplate cover for us with BPAFGEC Baseplate.
Dimensions
| Width: | 165mm |
| Height: | 25mm |
| Depth: | 129mm |
Notes
Screws & Fixings
Screws & Fixings
Code: FV1045
Description
.
Dimensions
Notes
Posts
Posts
Code: 3KNP
Description
Aluminium glazing post with glazing recesses on both sides. Designed to take 10mm and 12mm thick glass.
Dimensions
| Width: | 60mm |
| Depth: | 125mm |
Notes
(Glaxing rubber must be ordered seperatly)
Posts
Code: AFGIC
Description
Aluminium internal corner glazing post with glazing recesses on both sides. Designed to take 10mm and 12mm thick glass.
Dimensions
| Width: | 117mm |
| Depth: | 50mm |
Notes
(Glaxing rubber must be ordered seperatly)
Posts
Code: AFGEC
Description
Aluminium external corner glazing post with glazing recesses on both sides. Designed to take 10mm and 12mm thick glass.
Dimensions
| Width: | 122mm |
| Depth: | 50mm |
Notes
(Glaxing rubber must be ordered seperatly)
Post Top Caps
Post Top Caps
Code: 3KNTC
Description
Flat post cap for the 3KN post.
Dimensions
| Width: | 60mm |
| Height: | 6mm |
| Length: | 125mm |
Notes
Handrails
Handrails
Code: ARN
Description
Aluminium rectangular handrail. To be used with AIA infill in place of an undercap.
Dimensions
| Width: | 39mm |
| Depth: | 30mm |
Notes
Snaps in place over undercap.
Infills
Infills
Code: AKS
Description
Rubber glass seat that slides down the glazing channel and sits ontop of the AIA infill. Can be used on all posts.
Dimensions
| Width: | 21mm |
| Height: | 13mm |
| Depth: | 24.8mm |
Notes
Infills
Code: AIA
Description
Aluminium infill that slides down screw flutes on post glazing channels. Can be used on all posts
Dimensions
| Width: | 21mm |
| Depth: | 7.4mm |
Notes
Infills
Code: AIR
Description
Aluminium post infill. Designed to snap into glazing pocket to close off open ends. Can be used on all posts
Dimensions
| Width: | 21.5mm |
| Depth: | 9.6mm |
Notes
Glazing Gaskets
Glazing Gaskets
Code: SRE
Description
Glazing rubber for fitting on external side of balustrade. Use inconjunction with SWE** glazing on 12mm glass.
Dimensions
Notes
Glazing Gaskets
Code: SWE55
Description
Glazing rubber for fitting on internal side of balustrade. Use inconjunction with SRE glazing on 10mm glass.
Dimensions
Notes
Handrail Wall Plates
Handrail Wall Plates
Code: ARNWP
Description
Aluminium wall plate. To be used with MANG Inline handrail connector for the ARN handrail.
Dimensions
| Width: | 42mm |
| Height: | 6mm |
| Depth: | 60mm |
Notes
Fix bracket to handrail with 2 x FV12-50 Screws. 4 x FV12-50 screws supplied.
