Code: SD24-02

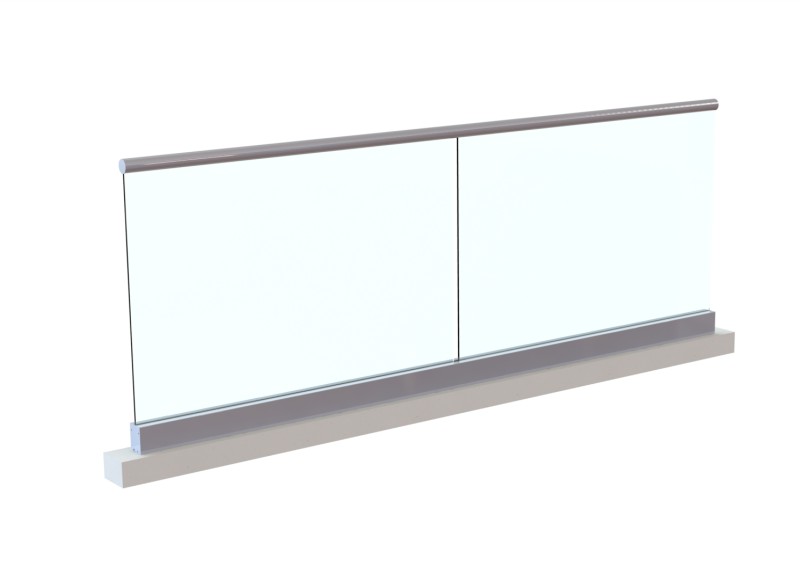

Smartglaze SD24-02
SG9872 Glazing channel with RRS handrail
Enquire Today
*Important note: Quantities of each component will vary, depending on the specifications for the individual project. Please contact our team to discuss your specific requirements:
enquiries@axiomgroup.com.au 1300 652 336This Suite Requires the following components
Glass Clamps
Glass Clamps
Code: SG9872GCB-1352
Description
Glass clamping kit for the Smartglaze channel for 13.52mm thick glass. For use with SG9872 channel
Dimensions
Notes
Glass Clamps
Code: SG9872GCB-15
Description
Glass clamping kit for the Smartglaze channel for 14.28mm - 15mm thick glass. For use with the SG9872 channel
Dimensions
Notes
Glass Clamps
Code: SG9872GCB-1752
Description
Glass clamping kit for the Smartglaze channel for 16.76mm - 17.52mm thick glass. For use with the SG9872 channel
Dimensions
Notes
Glazing Gaskets
Glazing Gaskets
Code: SG9872-R2
Description
Back rubber for 16.76-17.52mm thick glass for the Smartglaze channel
Dimensions
| Length: | 5800mm |
Notes
Glazing Gaskets
Code: SG9872-R15
Description
Front rubber for 13.52-17.52mm thick glass for the Smartglaze channel
Dimensions
| Length: | 5800mm |
Notes
Glazing Gaskets
Code: SG9872-R17
Description
Front rubber for 12mm - 12.76mm thick glass for the Smartglaze channel
Dimensions
| Length: | 5800mm |
Notes
Glazing Gaskets
Code: SWE-35
Description
Dimensions
Notes
Glazing Gaskets
Code: SWE-55
Description
Dimensions
Notes
Screws & Fixings
Screws & Fixings
Code: 1KEM12
Description
12mm Chem Anchor - Glass Capsule Anchoring Adhesive
Dimensions
| Diameter: | 12mm |
Notes
Screws & Fixings
Code: 1SCMS12160
Description
M12 x 160mm capsule stud chisel Pt Ext Hev Drv GR316 S/S + nut & washer
Dimensions
| Length: | 160mm |
Notes
Setting Blocks
Setting Blocks
Code: SBC
Description
Self adhesive setting block. Used for setting handrailing on top of glass.
Dimensions
| Width: | 25mm |
| Height: | 3mm |
| Depth: | 10mm |
Notes
Handrails
Handrails
Code: RRS
Description
Aluminium rectangular handrail. To be used with AIR infill in place of an undercap.
Dimensions
| Diameter: | 51mm |
Notes
Snaps in place over undercap.
Handrail End Caps
Handrail End Caps
Code: RCS
Description
Aluminium cast handrail end cap, to be fitted to end of handrail. To be used with RRS handrail.
Dimensions
| Height: | 4mm |
| Diameter: | 54mm |
Notes
Press fit into handrail
Handrail Wall Plates
Handrail Wall Plates
Code: RWTWP
Dimensions
Notes
Handrail Connectors
Handrail Connectors
Code: RJS
Description
300mm long aluminium handrail joiner. To be used with RRS handrail when connecting two pieces.
Dimensions
| Width: | 51mm |
| Depth: | 39mm |
Notes
Press fit into handrail, 150mm in each side
