Code: SD24-05
Smartglaze SD24-05

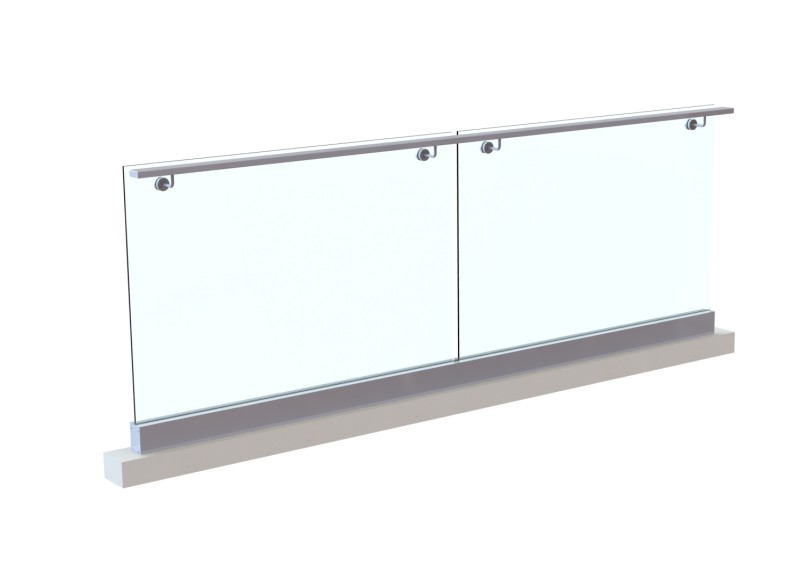

SG9872 Glazing channel with PRR handrail on AHB38 stainless steel handrail brackets.
Enquire Today
*Important note: Quantities of each component will vary, depending on the specifications for the individual project. Please contact our team to discuss your specific requirements:
enquiries@axiomgroup.com.au 1300 652 336This Suite Requires the following components
Glass Clamps
Glass Clamps
Code: SG9872GCB-1352
Description
Glass clamping kit for the Smartglaze channel for 13.52mm thick glass. For use with SG9872 channel
Dimensions
Notes
Glass Clamps
Code: SG9872GCB-15
Description
Glass clamping kit for the Smartglaze channel for 14.28mm - 15mm thick glass. For use with the SG9872 channel
Dimensions
Notes
Glass Clamps
Code: SG9872GCB-1752
Description
Glass clamping kit for the Smartglaze channel for 16.76mm - 17.52mm thick glass. For use with the SG9872 channel
Dimensions
Notes
Glazing Gaskets
Glazing Gaskets
Code: SG9872-R2
Description
Back rubber for 16.76-17.52mm thick glass for the Smartglaze channel
Dimensions
| Length: | 5800mm |
Notes
Glazing Gaskets
Code: SG9872-R15
Description
Front rubber for 13.52-17.52mm thick glass for the Smartglaze channel
Dimensions
| Length: | 5800mm |
Notes
Glazing Gaskets
Code: SG9872-R17
Description
Front rubber for 12mm - 12.76mm thick glass for the Smartglaze channel
Dimensions
| Length: | 5800mm |
Notes
Glazing Gaskets
Code: SWE-35
Description
Dimensions
Notes
Glazing Gaskets
Code: SWE-55
Description
Dimensions
Notes
Screws & Fixings
Screws & Fixings
Code: 1KEM12
Description
12mm Chem Anchor - Glass Capsule Anchoring Adhesive
Dimensions
| Diameter: | 12mm |
Notes
Screws & Fixings
Code: 1SCMS12160
Description
M12 x 160mm capsule stud chisel Pt Ext Hev Drv GR316 S/S + nut & washer
Dimensions
| Length: | 160mm |
Notes
Handrails
Handrails
Code: PRR
Description
Aluminium rectangular handrail. To be used with DRH or PZT undercap.
Dimensions
| Width: | 68mm |
| Depth: | 24mm |
Notes
Snaps in place over undercap.
Undercaps
Undercaps
Code: DRH
Description
Aluminium Undercap. Screw fixed to post. To be used with ARC, ART, DRT and PRR handrail.
Dimensions
| Width: | 54mm |
| Depth: | 7mm |
Notes
Fixed to posts with 4 x BRSCS screws. Fixings must be ordered seperatly.
Handrail End Caps
Handrail End Caps
Code: PRCT
Description
Aluminium cast handrail end cap, to be fitted to end of handrail. To be used with PRR handrail.
Dimensions
| Width: | 68mm |
| Height: | 4mm |
| Depth: | 24mm |
Notes
Press fit into handrail
Handrail Brackets
Handrail Brackets
Code: AHB38
Description
Side mount 38 dia handrail bracket, suitable for 10-19mm glass, with 2 x curved and 1 x flat saddle. Available in polish and satin finish
Dimensions
| Diameter: | 38mm |
