Suite system Detail

Smartglaze SD24-09

Code: SD24-09

Back to Suite

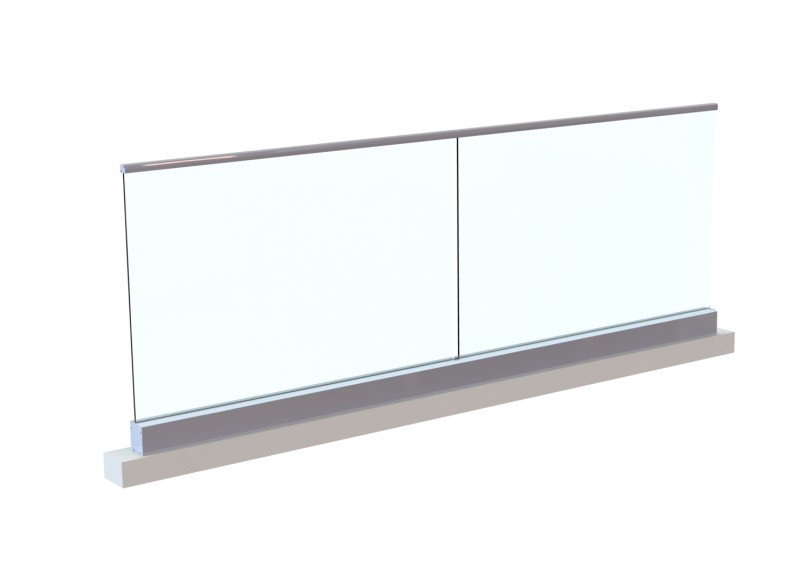

Smartglaze Suite - SD24-09

Code: SD24-09

Smartglaze SD24-09

SG11886 Glazing channel with ARN handrail

Enquire Today

*Important note: Quantities of each component will vary, depending on the specifications for the individual project. Please contact our team to discuss your specific requirements:

enquiries@axiomgroup.com.au

1300 652 336
Suite System Drawing
AutoCAD Drawing
Installation Instructions
This Suite Requires the following components

(9 components)

Glazing Gaskets
Glazing Gaskets
Code: SRD
Description

Glazing rubber for fitting on both sides of PZT undercap.

Dimensions
Download Section Drawings
PDF DXF
Notes

Used in the following Suites
Smartglaze SD24-09, SD24-10, SD24-11, SD24-12, SD24-13, SD24-14, SD24-15, SD24-16
Glazing Gaskets
Code: SWE-35
Description



Dimensions
Download Section Drawings
DXF
Notes

Used in the following Suites
Smartglaze SD24-01, SD24-02, SD24-03, SD24-04, SD24-05, SD24-06, SD24-07, SD24-08, SD24-09, SD24-10, SD24-11, SD24-12, SD24-13, SD24-14, SD24-15, SD24-16
Guardian SD30-02
Screws & Fixings
Screws & Fixings
Code: 1KEM12
Description

12mm Chem Anchor - Glass Capsule Anchoring Adhesive

Dimensions
Diameter: 12mm
Download Section Drawings
DXF
Notes

Used in the following Suites
Smartglaze SD24-01, SD24-02, SD24-03, SD24-04, SD24-05, SD24-06, SD24-07, SD24-08, SD24-09, SD24-10, SD24-11, SD24-12, SD24-13, SD24-14, SD24-15, SD24-16
Screws & Fixings
Code: 1SCMS12160
Description

M12 x 160mm capsule stud chisel Pt Ext Hev Drv GR316 S/S + nut & washer

Dimensions
Length: 160mm
Download Section Drawings
DXF
Notes

Used in the following Suites
Smartglaze SD24-01, SD24-02, SD24-03, SD24-04, SD24-05, SD24-06, SD24-07, SD24-08, SD24-09, SD24-10, SD24-11, SD24-12, SD24-13, SD24-14, SD24-15, SD24-16
Setting Blocks
Setting Blocks
Code: SBC
Description

Self adhesive setting block. Used for setting handrailing on top of glass.

Dimensions
Width: 25mm
Height: 3mm
Depth: 10mm
Download Section Drawings
PDF DXF
Notes

Used in the following Suites
Smartglaze SD24-01, SD24-02, SD24-09, SD24-10
Handrails
Handrails
Code: ARN
Description

Aluminium rectangular handrail. To be used with AIA infill in place of an undercap.

Dimensions
Width: 39mm
Depth: 30mm
Download Section Drawings
PDF DXF
Notes

Snaps in place over undercap.

Used in the following Suites
Smartglaze SD24-01, SD24-03, SD24-09, SD24-11
Guardian SD30-01, SD30-02, SD30-03, SD30-04
Handrail End Caps
Handrail End Caps
Code: ARNE
Description

Aluminium laser cut handrail end cap, to be fitted to end of handrail. To be used with ARN handrail.

Dimensions
Width: 39mm
Height: 3mm
Depth: 30mm
Download Section Drawings
PDF DXF
Notes

Fixed to handrail with 2 x ECS screws. Fixings are supplied for this product.

Used in the following Suites
Smartglaze SD24-01, SD24-03, SD24-09, SD24-11
Handrail Wall Plates
Handrail Wall Plates
Code: ARNWP
Description

Aluminium wall plate. To be used with MANG Inline handrail connector for the ARN handrail.

Dimensions
Width: 42mm
Height: 6mm
Depth: 60mm
Download Section Drawings
PDF DXF
Notes

Fix bracket to handrail with 2 x FV12-50 Screws. 4 x FV12-50 screws supplied.

Used in the following Suites
Smartglaze SD24-01, SD24-09
Guardian SD30-02, SD30-04, SD30-01, SD30-03
Handrail Connectors
Handrail Connectors
Code: MANG
Description

300mm long aluminium handrail joiner. To be used with ARN handrail when connecting two pieces.

Dimensions
Width: 31mm
Depth: 18.1mm
Download Section Drawings
PDF DXF
Notes

Press fit into handrail, 150mm in each side

Used in the following Suites
Smartglaze SD24-01, SD24-09

Products you can trust. Contact a consultant for project specific certification.
