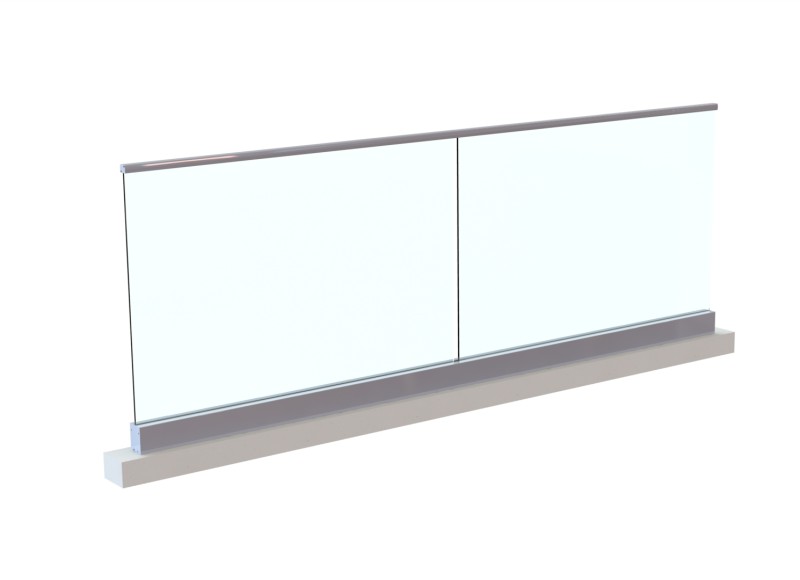

Smartglaze SD24-01
SG9872 Glazing channel with ARN handrail
Enquire Today
*Important note: Quantities of each component will vary, depending on the specifications for the individual project. Please contact our team to discuss your specific requirements:
enquiries@axiomgroup.com.au 1300 652 336This Suite Requires the following components
Glass Clamps
Glass Clamps
Code: SG9872GCB-1352
Description
Glass clamping kit for the Smartglaze channel for 13.52mm thick glass. For use with SG9872 channel
Dimensions
Notes
Glass Clamps
Code: SG9872GCB-15
Description
Glass clamping kit for the Smartglaze channel for 14.28mm - 15mm thick glass. For use with the SG9872 channel
Dimensions
Notes
Glass Clamps
Code: SG9872GCB-1752
Description
Glass clamping kit for the Smartglaze channel for 16.76mm - 17.52mm thick glass. For use with the SG9872 channel
Dimensions
Notes
Glazing Gaskets
Glazing Gaskets
Code: SG9872-R2
Description
Back rubber for 16.76-17.52mm thick glass for the Smartglaze channel
Dimensions
| Length: | 5800mm |
Notes
Glazing Gaskets
Code: SG9872-R15
Description
Front rubber for 13.52-17.52mm thick glass for the Smartglaze channel
Dimensions
| Length: | 5800mm |
Notes
Glazing Gaskets
Code: SG9872-R17
Description
Front rubber for 12mm - 12.76mm thick glass for the Smartglaze channel
Dimensions
| Length: | 5800mm |
Notes
Glazing Gaskets
Code: SWE-35
Description
Dimensions
Notes
Glazing Gaskets
Code: SWE-55
Description
Dimensions
Notes
Screws & Fixings
Screws & Fixings
Code: 1KEM12
Description
12mm Chem Anchor - Glass Capsule Anchoring Adhesive
Dimensions
| Diameter: | 12mm |
Notes
Screws & Fixings
Code: 1SCMS12160
Description
M12 x 160mm capsule stud chisel Pt Ext Hev Drv GR316 S/S + nut & washer
Dimensions
| Length: | 160mm |
Notes
Setting Blocks
Setting Blocks
Code: SBC
Description
Self adhesive setting block. Used for setting handrailing on top of glass.
Dimensions
| Width: | 25mm |
| Height: | 3mm |
| Depth: | 10mm |
Notes
Handrails
Handrails
Code: ARN
Description
Aluminium rectangular handrail. To be used with AIA infill in place of an undercap.
Dimensions
| Width: | 39mm |
| Depth: | 30mm |
Notes
Snaps in place over undercap.
Handrail End Caps
Handrail End Caps
Code: ARNE
Description
Aluminium laser cut handrail end cap, to be fitted to end of handrail. To be used with ARN handrail.
Dimensions
| Width: | 39mm |
| Height: | 3mm |
| Depth: | 30mm |
Notes
Fixed to handrail with 2 x ECS screws. Fixings are supplied for this product.
Handrail Wall Plates
Handrail Wall Plates
Code: ARNWP
Description
Aluminium wall plate. To be used with MANG Inline handrail connector for the ARN handrail.
Dimensions
| Width: | 42mm |
| Height: | 6mm |
| Depth: | 60mm |
Notes
Fix bracket to handrail with 2 x FV12-50 Screws. 4 x FV12-50 screws supplied.
Handrail Connectors
Handrail Connectors
Code: MANG
Description
300mm long aluminium handrail joiner. To be used with ARN handrail when connecting two pieces.
Dimensions
| Width: | 31mm |
| Depth: | 18.1mm |
Notes
Press fit into handrail, 150mm in each side
